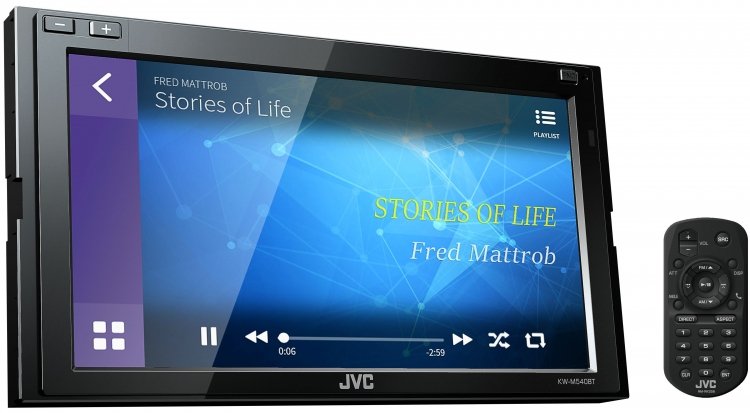

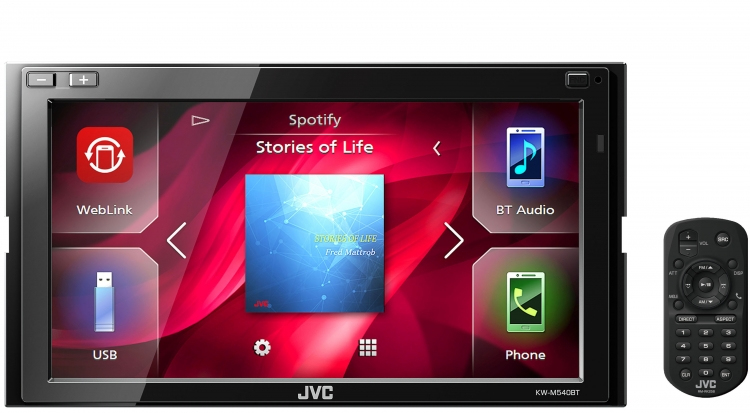

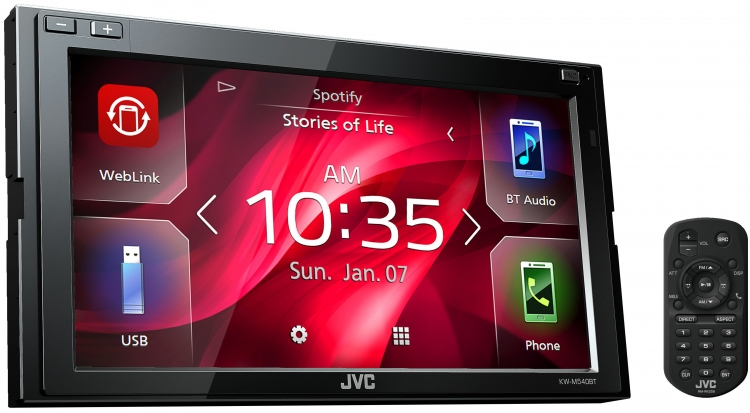

KW-M540BT 2-DIN AV Receiver
Model KW-M540BTPart no. KWM540BTEAN 4975769449857
47 specifications
- Display17.3 cm (6.8")
- Resolution800 x 480 pixels
- Weight1.7 kg
- ColourBlack
- MP3 playbackYes
- Preset stations quantity24
Overview
- Display
- 17.3 cm (6.8")
- Resolution
- 800 x 480 pixels
- Weight
- 1.7 kg
- Colour
- Black
- MP3 playback
- Yes
- Preset stations quantity
- 24
- Brand
- JVC
- Category
- Car Media Receiver
- Model
- KW-M540BT
- Part number
- KWM540BT
- EAN / UPC
- 4975769449857
- Also known as
- JVC KW-M540BT 2-DIN AV Receiver
Specifications
47 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 2 DIN |
| Maximum power per channel | 50 W |
| Disc types supported | No |
| Analog signal format system | NTSC, PAL |
| Ready for iPod | Yes |
| High pass filter | Yes |
| Low pass filter | Yes |
| Equalizer | Yes |
| Equalizer bands quantity | 13 |
| Dimmer | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| CD-R playback | No |
| Audio formats supported | AAC, FLAC, MP3, WAV, WMA |
| Image formats supported | BMP, JPEG, PNG |
| Video formats supported | AVI, H.264, MKV, MPEG1, MPEG2, MPEG4, WMV |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Touchscreen | Yes |
| Widescreen | Yes |
| Display diagonal | 17.3 cm (6.8") |
| Display resolution | 800 x 480 pixels |
| LED backlight | Yes |
| Rear-view camera ready | Yes |

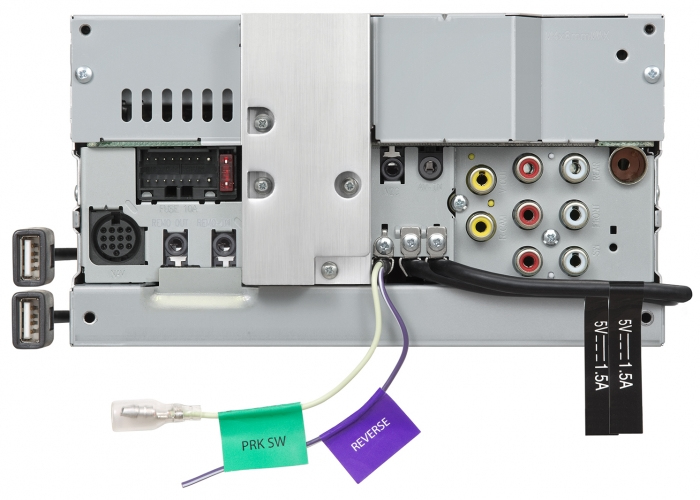

Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 3.0+HS |
| Bluetooth profiles | A2DP, AVRCP, PBAP |
| ISO connector | Yes |
| USB port | Yes |
| USB ports quantity | 1 |
| USB connector type | USB Type-A |
| USB port position | Rear |
| AV input | Yes |
| AV output | Yes |
| Line outputs (RCA) | 3 |
| Microphone in | Yes |
Radio
| Specification | Value |
|---|---|
| Preset stations quantity | 24 |
| Supported radio bands | FM, LW, MW |
| FM band range | 87.5 - 108 MHz |
| LW band range | 153 - 279 kHz |
| Radio Data System (RDS) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 182 mm |
| Depth | 160 mm |
| Height | 111 mm |
| Weight | 1.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.8 kg |
