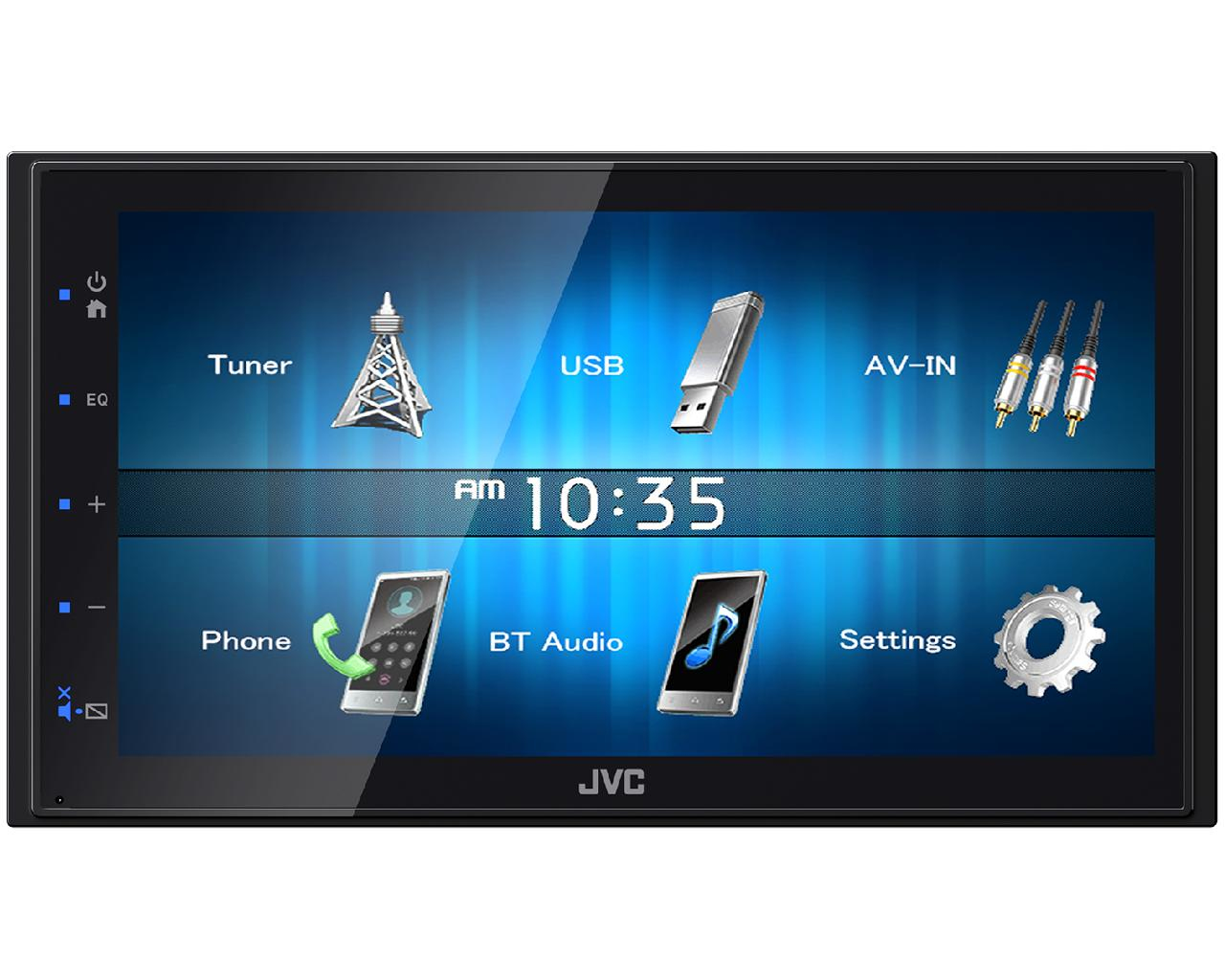

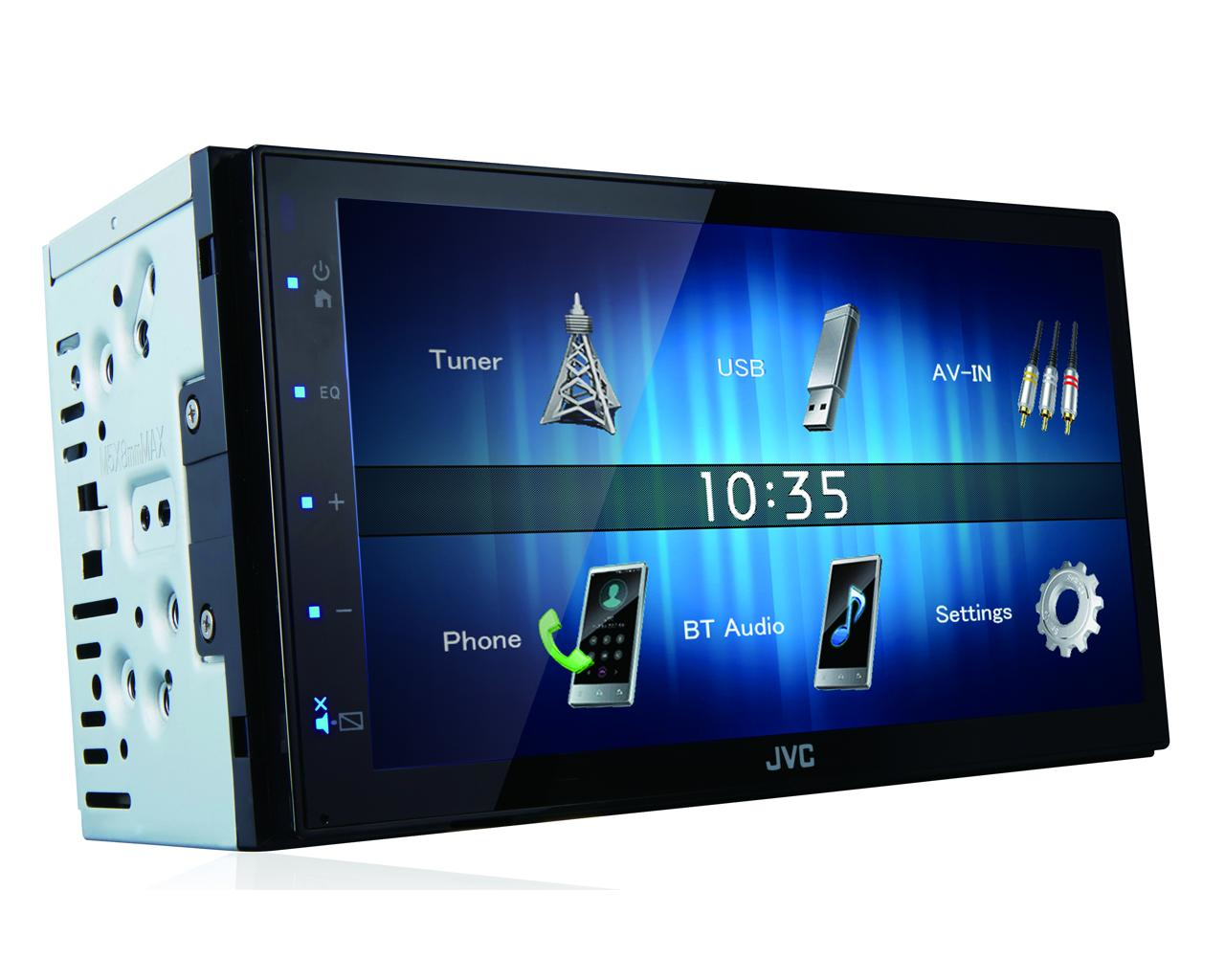

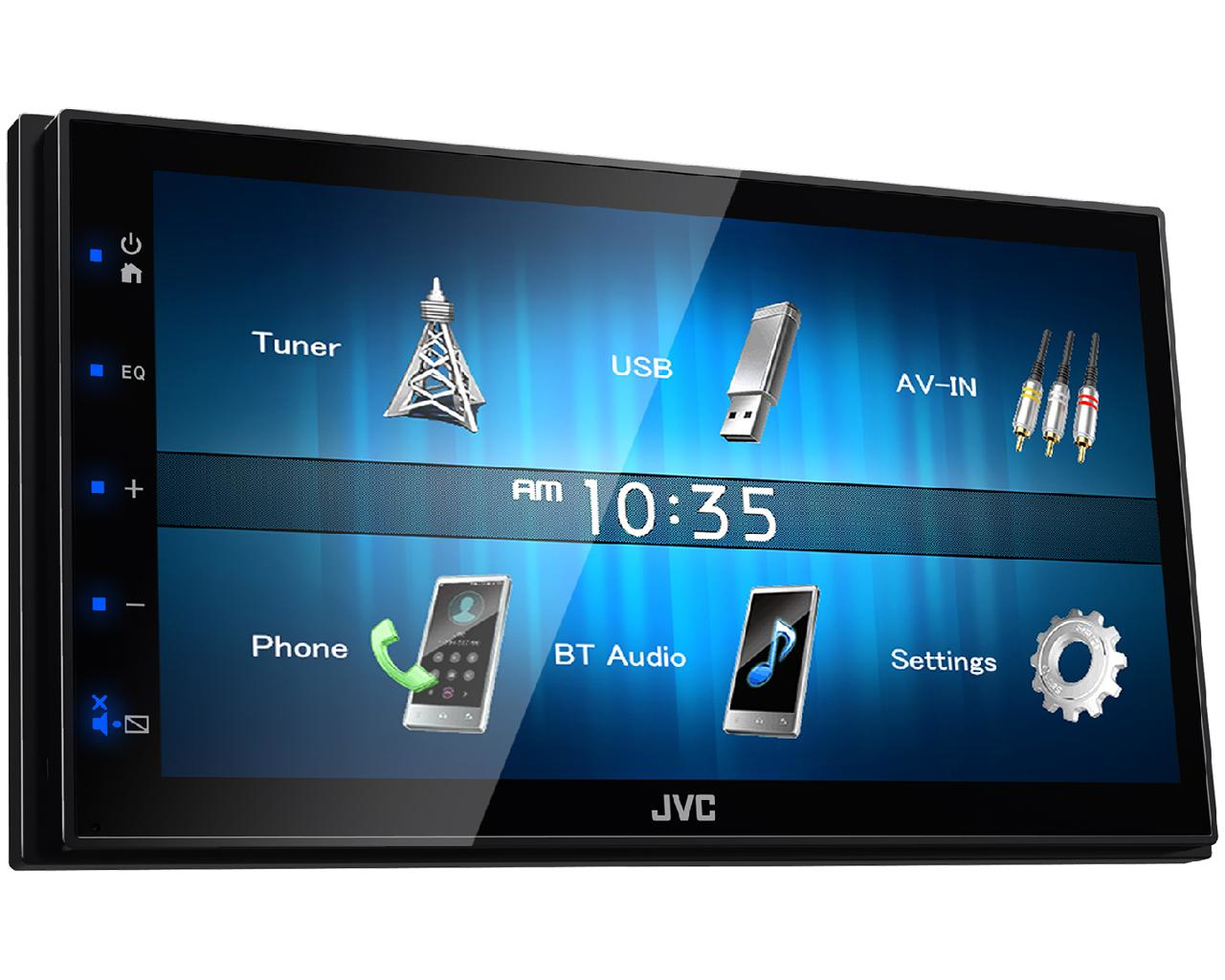

KW-M24BT 2DIN, Mechless, Multimedia system
Model KW-M24BTPart no. KWM24BTEAN 4975769450150
54 specifications
- Display17.3 cm (6.8")
- Resolution800 x 480 pixels
- Weight900 g
- ColourBlack
- MP3 playbackYes
- Preset stations quantity30
Overview
- Display
- 17.3 cm (6.8")
- Resolution
- 800 x 480 pixels
- Weight
- 900 g
- Colour
- Black
- MP3 playback
- Yes
- Preset stations quantity
- 30
- Brand
- JVC
- Category
- Car Media Receiver
- Model
- KW-M24BT
- Part number
- KWM24BT
- EAN / UPC
- 4975769450150
- Also known as
- JVC KW-M24BT 2DIN, Mechless, Multimedia system
Specifications
54 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 2 DIN |
| Output power | 200 W |
| Maximum power per channel | 50 W |
| Frequency range | 20 - 22000 Hz |
| Signal-to-Noise Ratio (SNR) | 99 dB |
| Disc types supported | No |
| Analog signal format system | NTSC, PAL |
| Ready for iPod | Yes |
| High pass filter | No |
| Low pass filter | Yes |
| Equalizer | Yes |
| Equalizer bands quantity | 7 |
| Dimmer | Yes |
| Steering mounting remote control capability | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| CD-R playback | No |
| Audio formats supported | AAC, MP3, WMA |
| Image formats supported | BMP, JPG |
| Video formats supported | MPEG1, MPEG2, MPEG4 |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Touchscreen | Yes |
| Widescreen | Yes |
| Display diagonal | 17.3 cm (6.8") |
| Display resolution | 800 x 480 pixels |
| LED backlight | Yes |
| Rear-view camera ready | Yes |

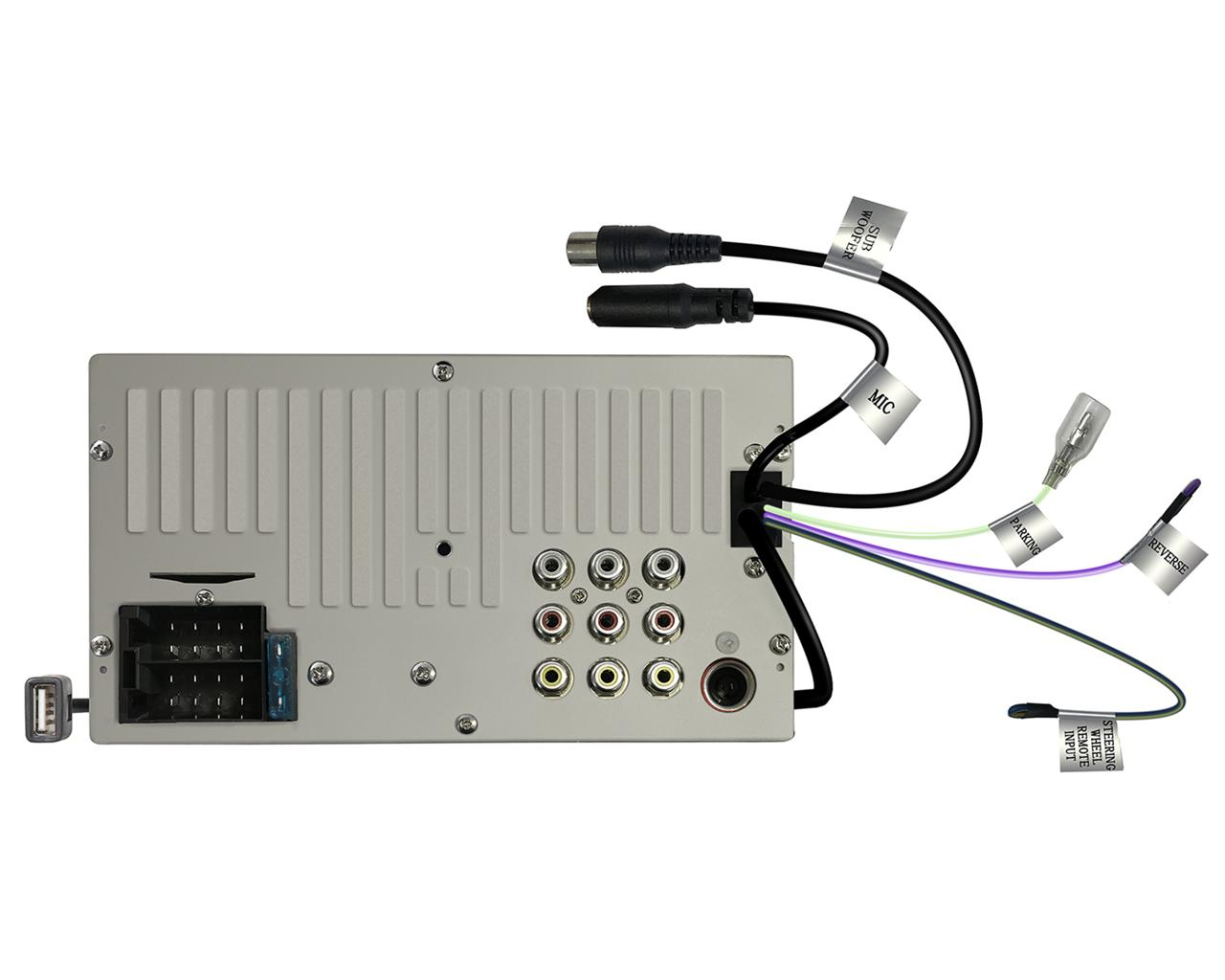

Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 2.1+EDR |
| Bluetooth profiles | A2DP, AVRCP, HFP, PBAP |
| Bluetooth range | 10 m |
| ISO connector | Yes |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| USB port position | Rear |
| AV input | Yes |
| AV output | Yes |
| Pre out port | Yes |
Radio
| Specification | Value |
|---|---|
| Preset stations quantity | 30 |
| Supported radio bands | AM, FM |
| FM band range | 87.5 - 108 MHz |
| AM band range | 531 - 1611 kHz |
Call management
| Specification | Value |
|---|---|
| Hands-free calling | Yes |
| Speed dialling | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 182 mm |
| Depth | 74.5 mm |
| Height | 112 mm |
| Weight | 900 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.6 kg |
