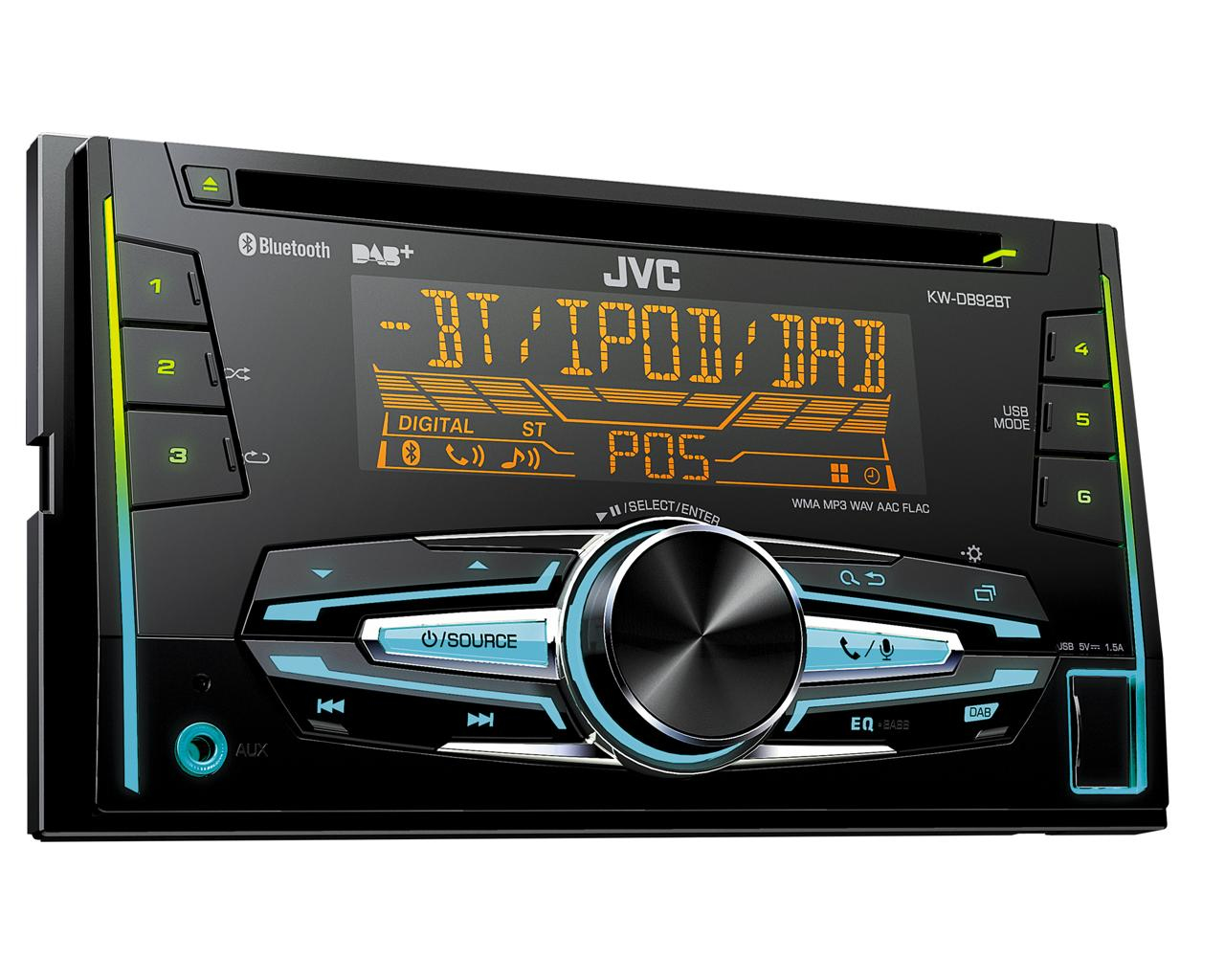

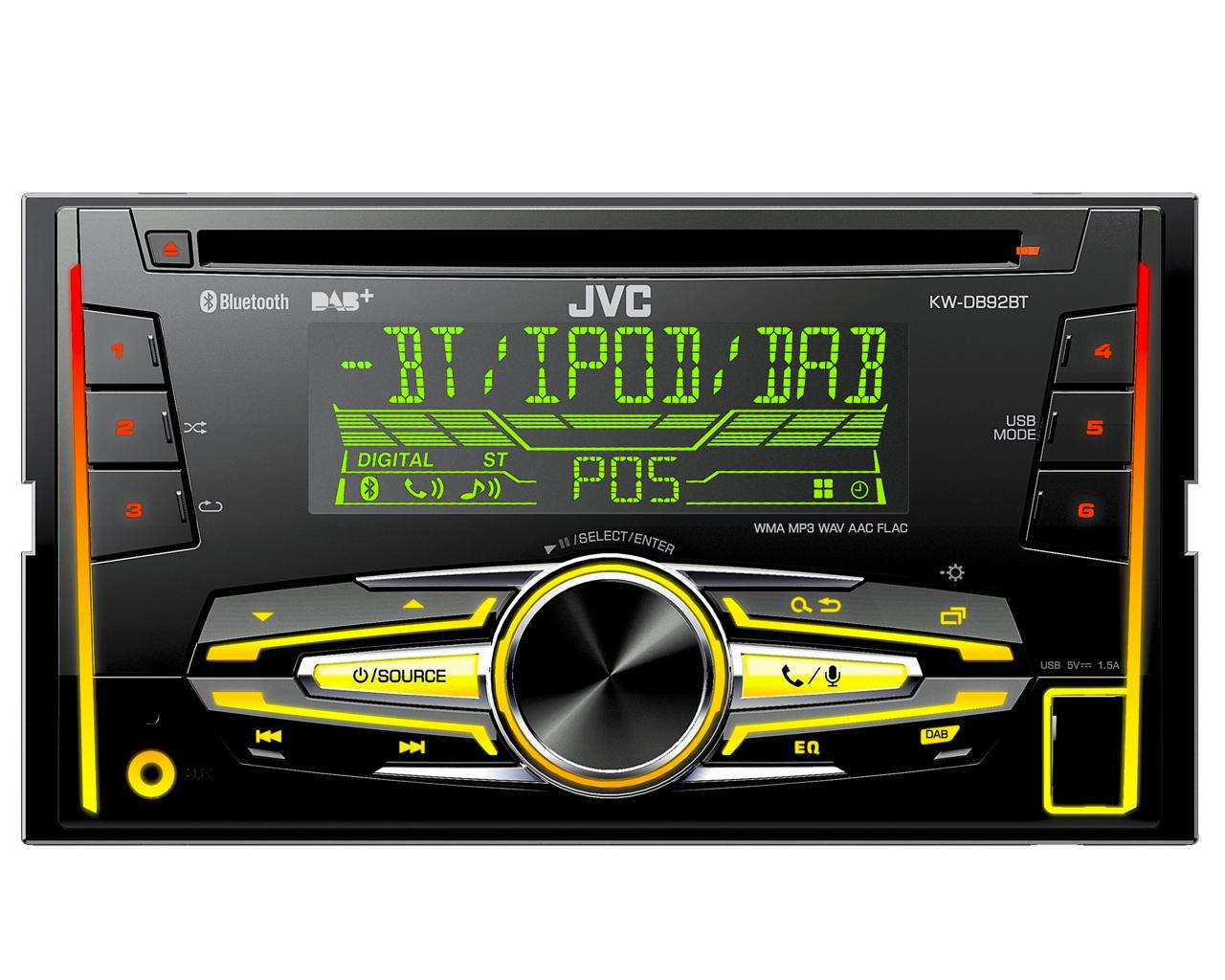

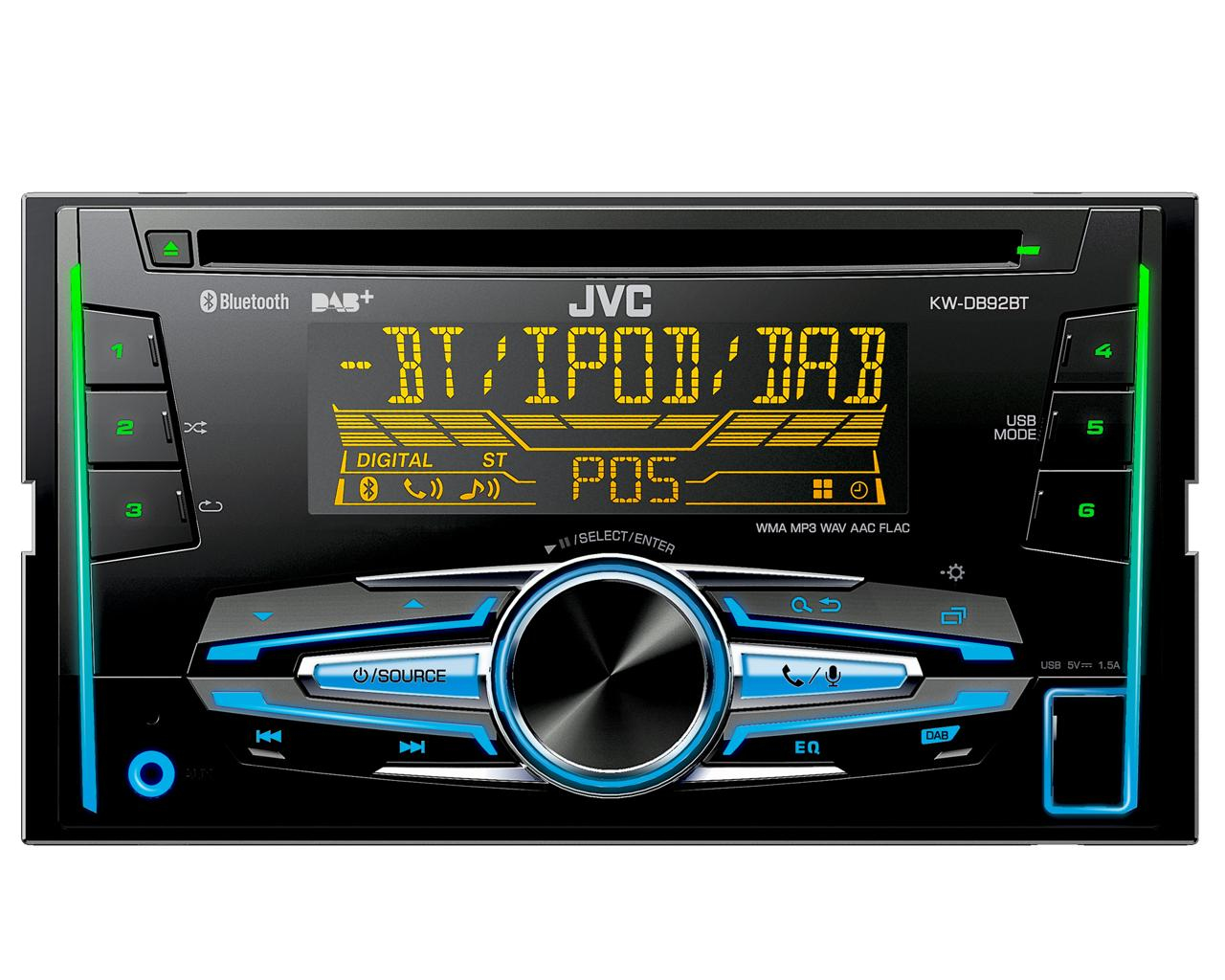

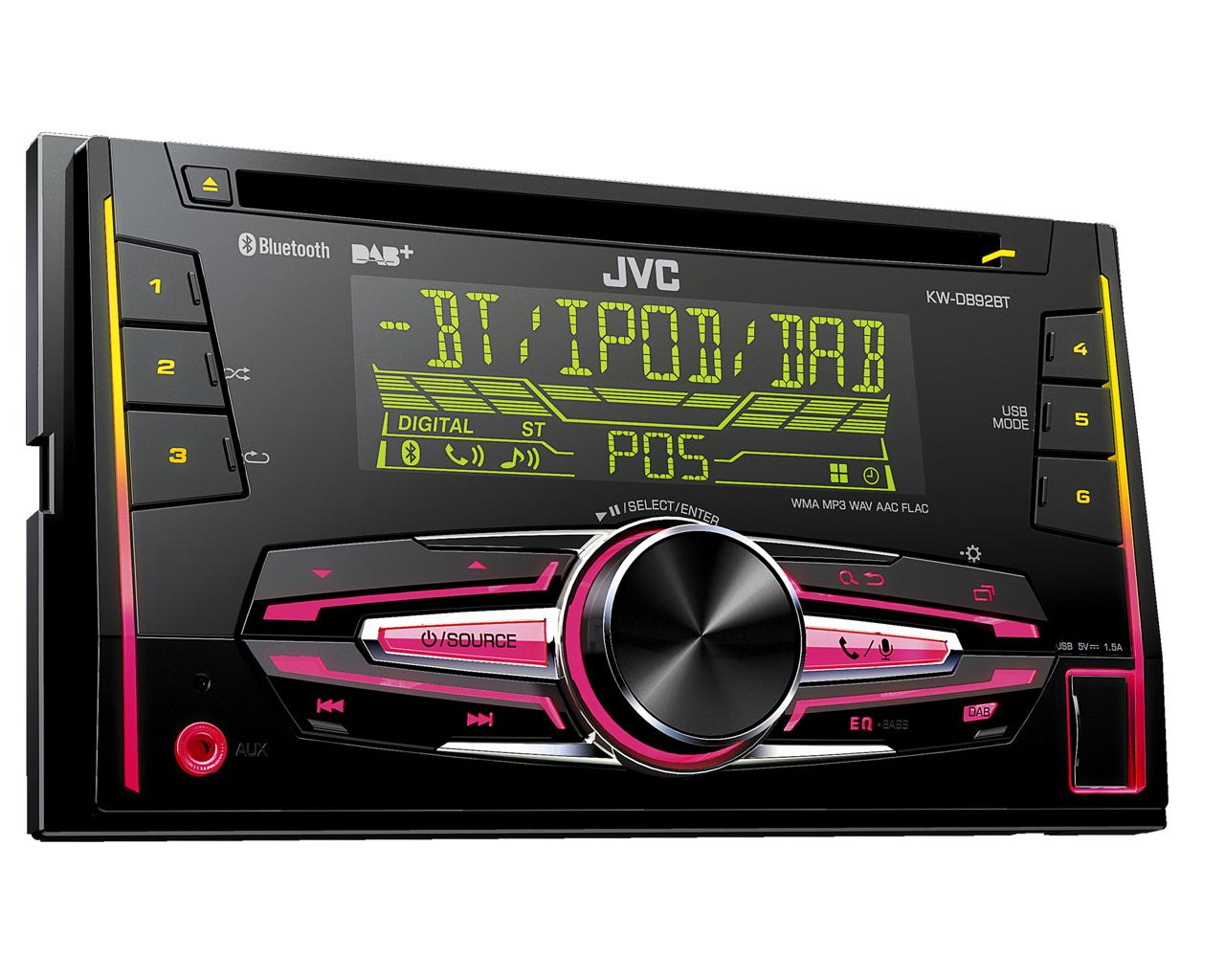

KW-DB92BT Black
22 W Bluetooth
Model KW-DB92BTPart no. KW-DB92BT-ANT
39 specifications
- Weight1.6 kg
- ColourBlack
- MP3 playbackYes
- Supported radio bandsAM, DAB+, FM, LW, MW
- Dimensions (WxDxH)178 x 112 x 158 mm
Overview
- Weight
- 1.6 kg
- Colour
- Black
- MP3 playback
- Yes
- Supported radio bands
- AM, DAB+, FM, LW, MW
- Dimensions (WxDxH)
- 178 x 112 x 158 mm
- Brand
- JVC
- Category
- Car Media Receiver
- Model
- KW-DB92BT
- Part number
- KW-DB92BT-ANT
- Also known as
- JVC KW-DB92BT Black 22 W Bluetooth
Specifications
39 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 2 DIN |
| Output power | 22 W |
| Maximum power per channel | 50 W |
| Frequency range | 20 - 20000 Hz |
| Signal-to-Noise Ratio (SNR) | 105 dB |
| Impedance | 4 Ω |
| Ready for iPod | Yes |
| Volume control | Rotary |
| Equalizer | Yes |
| Removable front panel | Yes |
| Steering mounting remote control capability | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| CD-R playback | Yes |
| CD-RW playback | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Adjustable colour | Yes |
| Display illumination | Yes |
| Detachable display | Yes |
| On Screen Display (OSD) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth profiles | A2DP, AVRCP, HFP, PBAP |
| ISO connector | Yes |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB port position | Front |
| AUX in | Yes |
| Line outputs (RCA) | 6 |
| Subwoofer out | Yes |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, DAB+, FM, LW, MW |
| FM band range | 87.5 - 108 MHz |
| AM band range | 531 - 1611 kHz |
| LW band range | 153 - 279 kHz |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 178 x 112 x 158 mm |
| Weight | 1.6 kg |
Technical details
| Specification | Value |
|---|---|
| USB mass storage | Yes |
