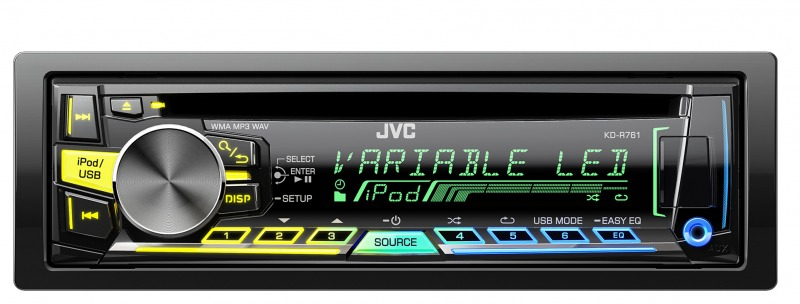

KD-R761E car media receiver Black
Model KD-R761EEAN 4975769425493
47 specifications
- Weight1.2 kg
- ColourBlack
- MP3 playbackYes
- BluetoothNo
- Preset stations quantity24
- Dimensions (WxDxH)182 x 158 x 53 mm
Overview
- Weight
- 1.2 kg
- Colour
- Black
- MP3 playback
- Yes
- Bluetooth
- No
- Preset stations quantity
- 24
- Dimensions (WxDxH)
- 182 x 158 x 53 mm
- Brand
- JVC
- Category
- Car Media Receiver
- Model
- KD-R761E
- Part number
- KD-R761E
- EAN / UPC
- 4975769425493
- Also known as
- JVC KD-R761E car media receiver Black
Specifications
47 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 1 DIN |
| Audio output channels | 4.0 channels |
| Maximum power per channel | 22 W |
| Signal-to-Noise Ratio (SNR) | 105 dB |
| Impedance | 4 Ω |
| CD player | Yes |
| DVD player | No |
| Disc types supported | CD, CD-R, CD-RW |
| TV tuner integrated | No |
| Ready for iPod | Yes |
| Low pass filter | Yes |
| Equalizer | Yes |
| Equalizer bands quantity | 3 |
| Equalizer customizable | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
| CD-R playback | Yes |
| CD-RW playback | Yes |
| DVD Audio playback | No |
| DVD Video playback | No |
| Audio formats supported | MP3, WAV, WMA |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Touchscreen | No |
| Adjustable colour | Yes |
| CD Text | Yes |
| LED backlight | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | No |
| ISO connector | Yes |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| AUX in | Yes |
| Line outputs (RCA) | 1 |
| Pre out port | Yes |
| Subwoofer out | Yes |
Radio
| Specification | Value |
|---|---|
| Preset stations quantity | 24 |
| Supported radio bands | FM, LW, MW |
| FM band range | 87.5 - 108 MHz |
| AM band range | 531 - 1611 kHz |
| LW band range | 153 - 279 kHz |
| Radio Data System (RDS) | Yes |
| FM radio | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 182 x 158 x 53 mm |
| Weight | 1.2 kg |
Technical details
| Specification | Value |
|---|---|
| Input frequency | 20 - 20000 Hz |
| Number of optical discs | 1 discs |
