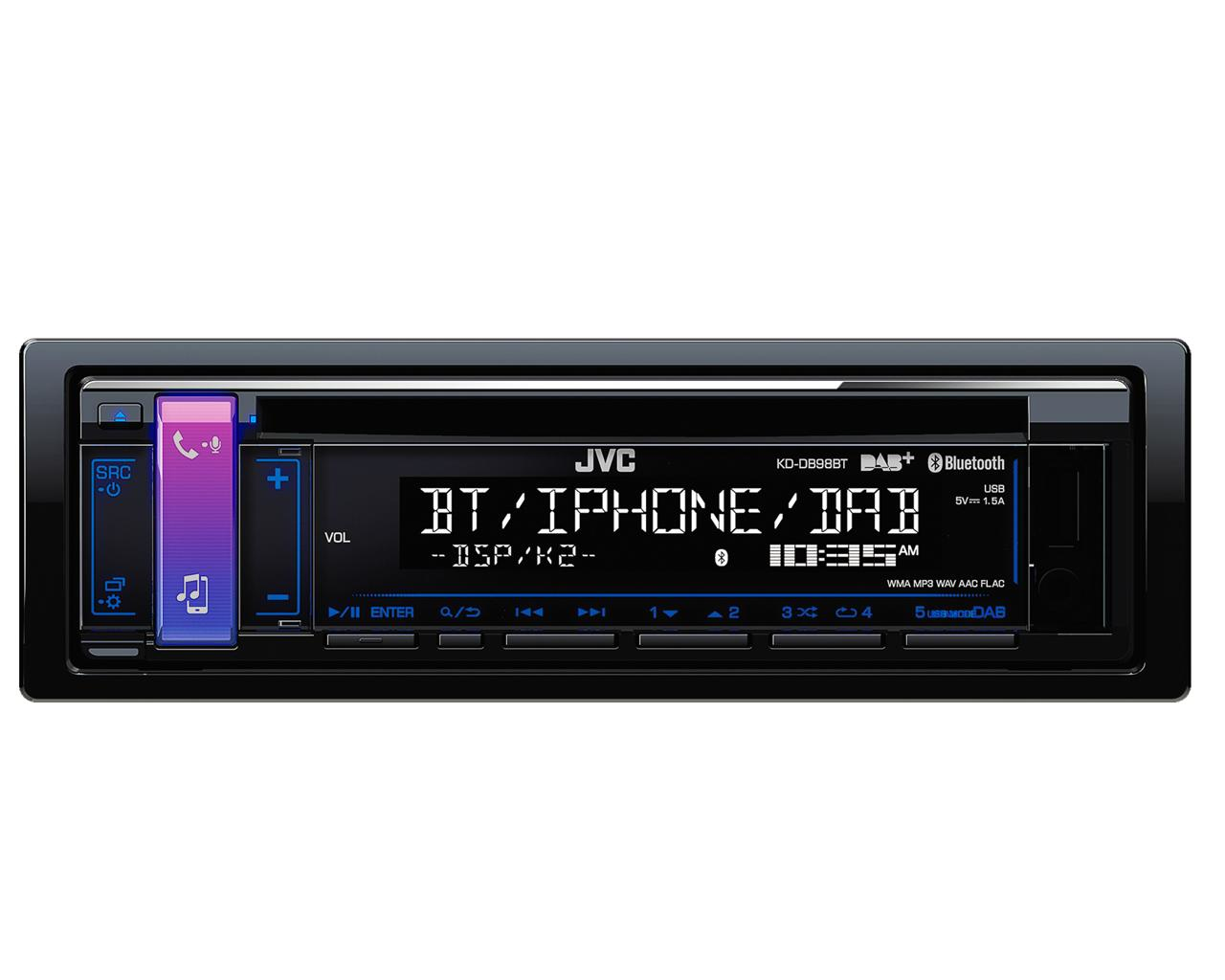

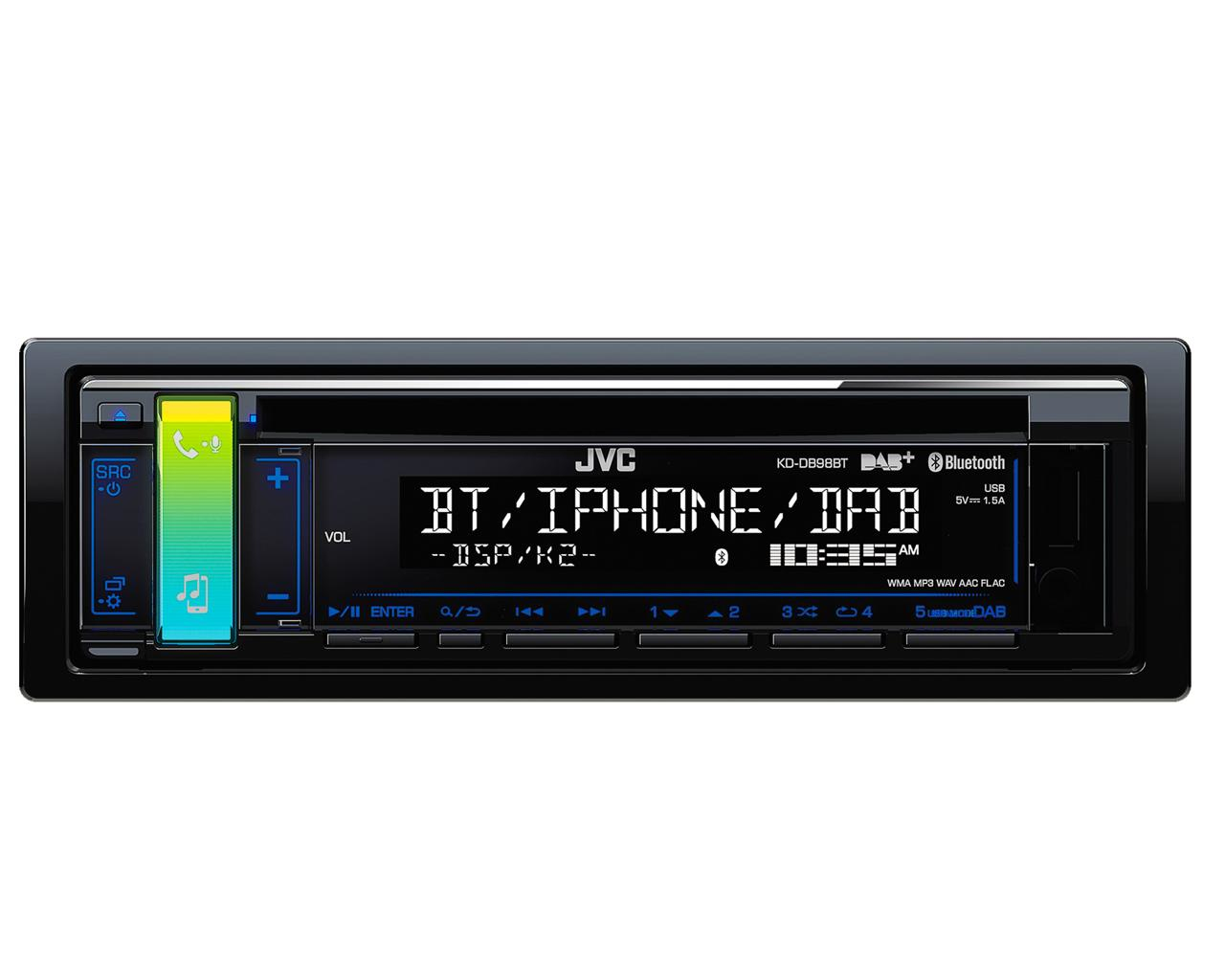

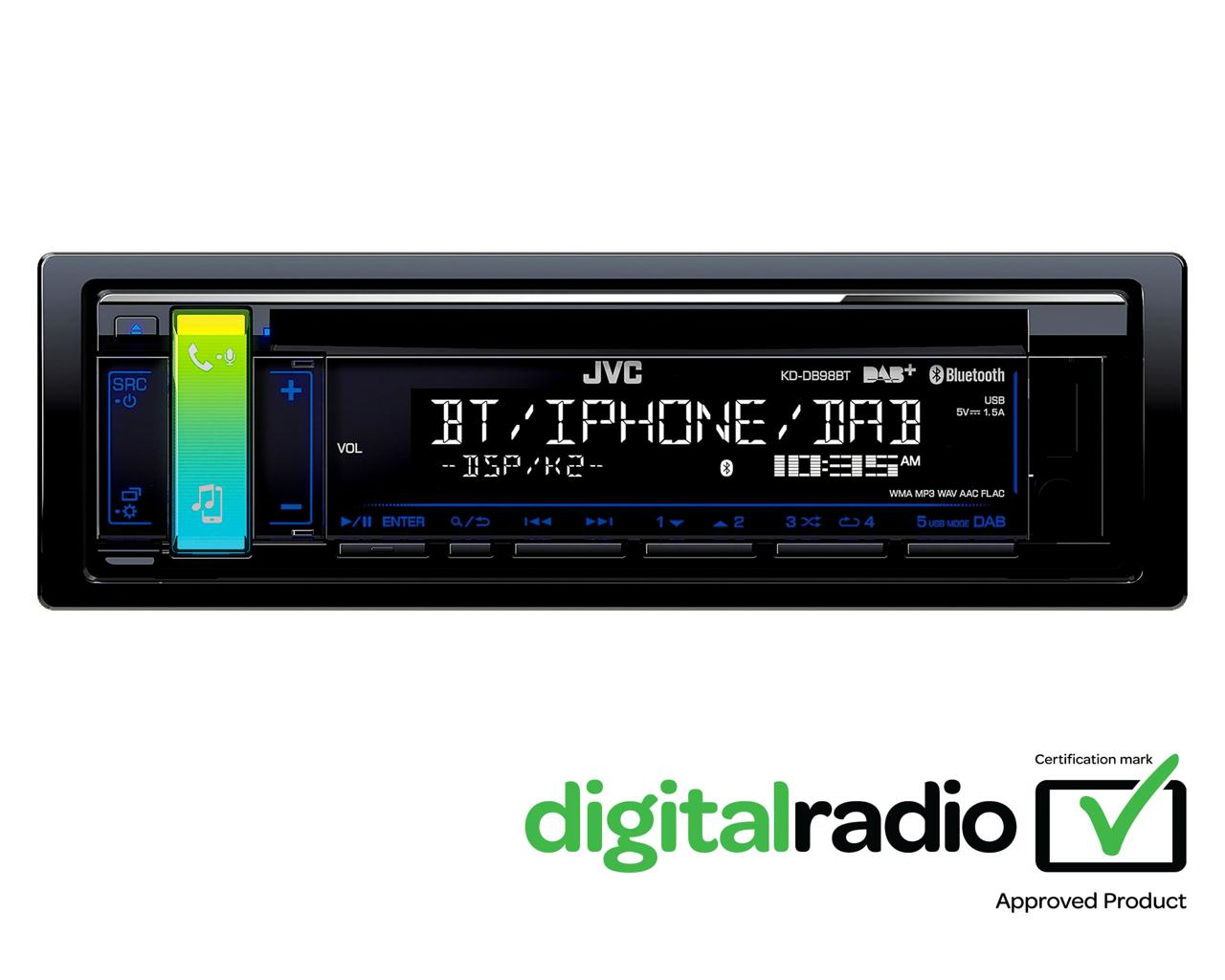

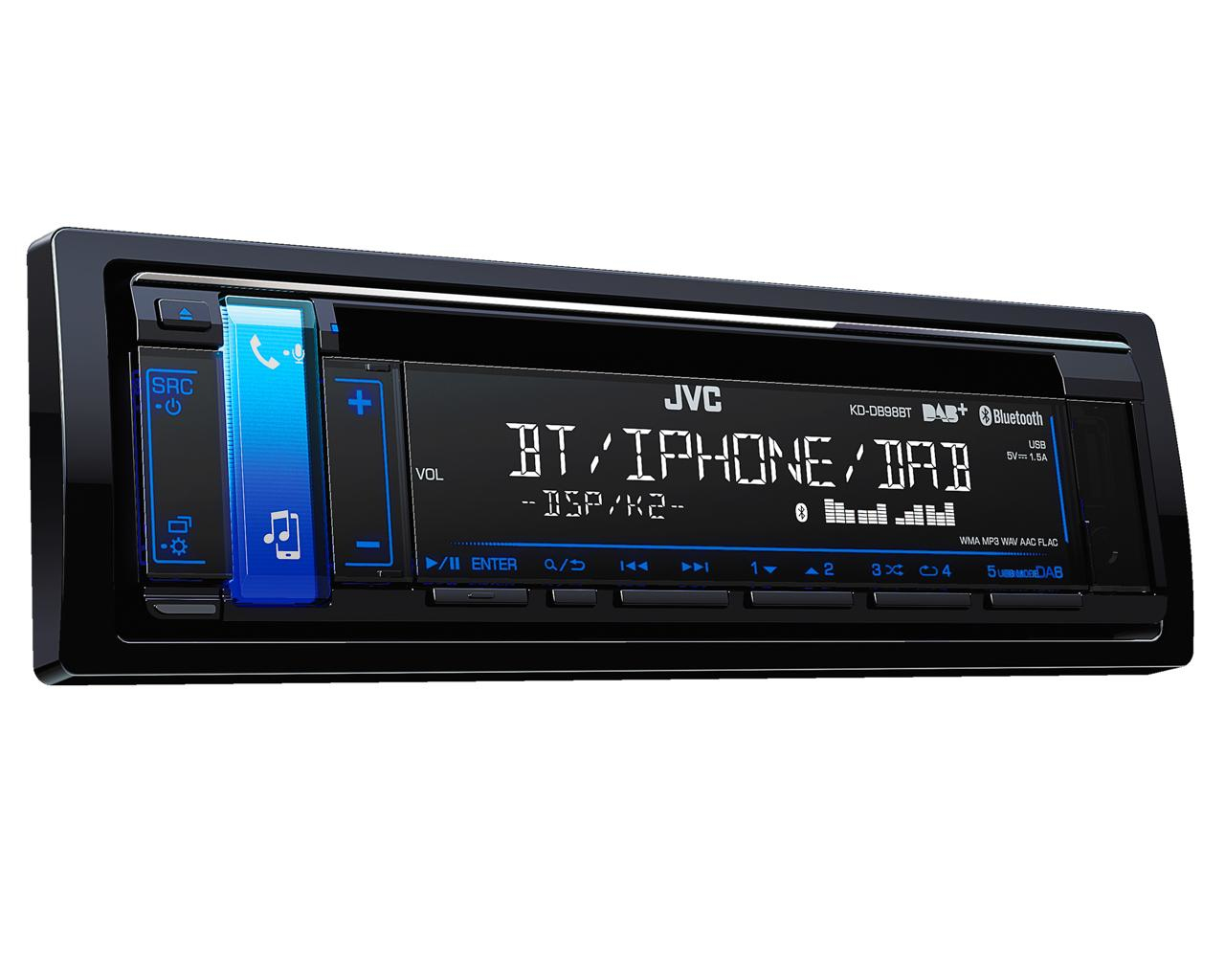

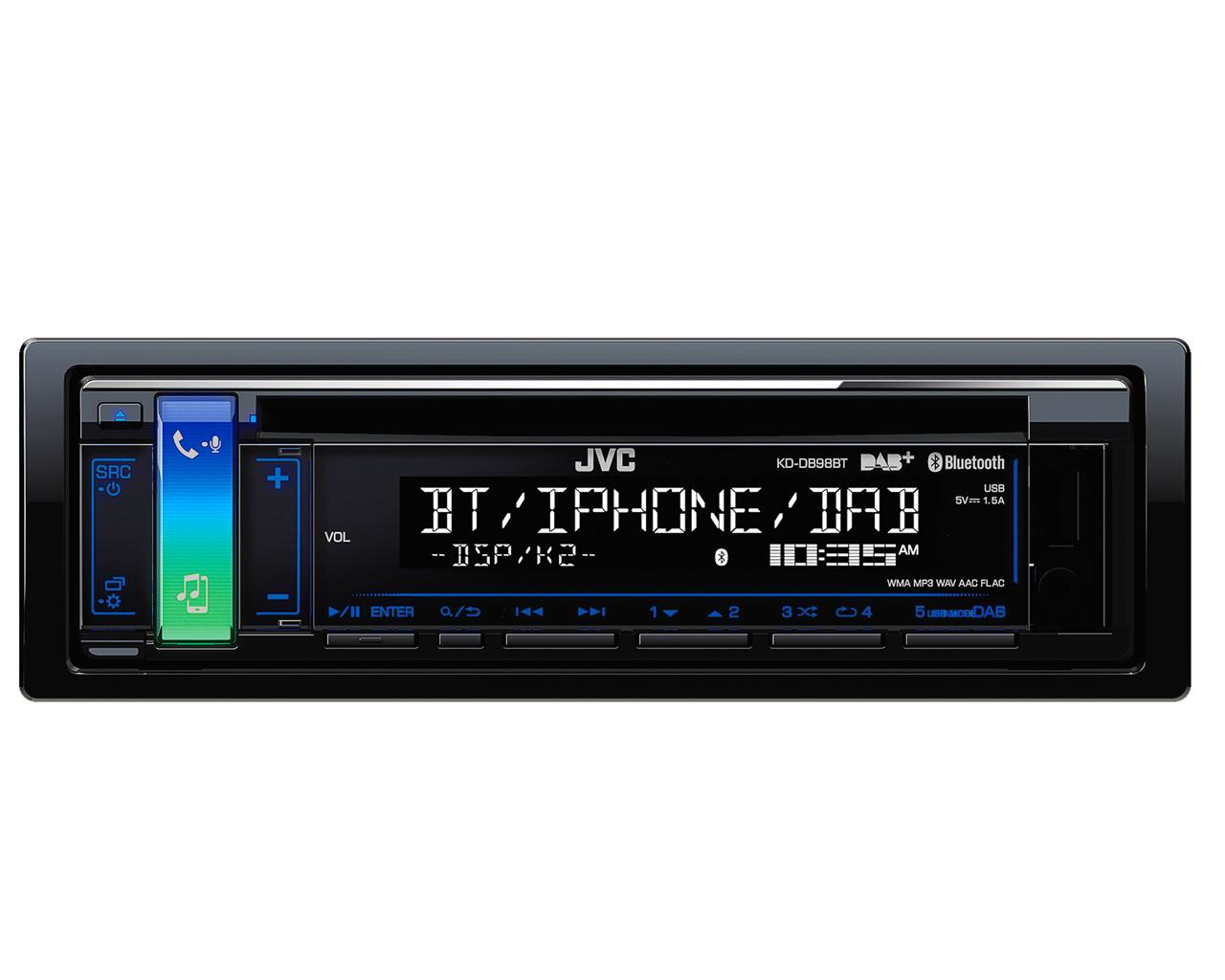

KD-DB98BT Black
22 W Bluetooth
Model KD-DB98BTPart no. KD-DB98BT-ANTEAN 4975769442438
42 specifications
- Weight1.5 kg
- ColourBlack
- MP3 playbackYes
- Supported radio bandsAM, DAB, DMB, FM, LW, MW
- Dimensions (WxDxH)182 x 53 x 159 mm
Overview
- Weight
- 1.5 kg
- Colour
- Black
- MP3 playback
- Yes
- Supported radio bands
- AM, DAB, DMB, FM, LW, MW
- Dimensions (WxDxH)
- 182 x 53 x 159 mm
- Brand
- JVC
- Category
- Car Media Receiver
- Model
- KD-DB98BT
- Part numbers
- KD-DB98BT-ANT, KD-DB98BT
- EAN / UPC
- 4975769442438
- Also known as
- JVC KD-DB98BT Black 22 W Bluetooth
Specifications
42 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| DIN size | 1 DIN |
| Output power | 22 W |
| Maximum power per channel | 50 W |
| Frequency range | 20 - 20000 Hz |
| Impedance | 4 Ω |
| CD player | Yes |
| Ready for iPod | Yes |
| Volume control | Touch |
| Equalizer | Yes |
| Equalizer bands quantity | 13 |
| Removable front panel | Yes |
Multimedia
| Specification | Value |
|---|---|
| MP3 playback | Yes |
| USB direct playback | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Touchscreen | Yes |
| Display illumination | Yes |
| Illumination colour | White |
| Detachable display | Yes |
| On Screen Display (OSD) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 3.0+HS |
| Bluetooth profiles | A2DP, AVRCP, HFP, PBAP |
| ISO connector | Yes |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB port position | Front |
| AUX in | Yes |
| Line outputs (RCA) | 6 |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, DAB, DMB, FM, LW, MW |
| FM band range | 87.5 - 108 MHz |
| AM band range | 531 - 1611 kHz |
| LW band range | 153 - 279 kHz |
| Auto digital tuning | Yes |
| DAB tuner | Yes |
| FM radio | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 182 x 53 x 159 mm |
| Weight | 1.5 kg |
Technical details
| Specification | Value |
|---|---|
| USB mass storage | Yes |
| Key illumination colour | Blue |
