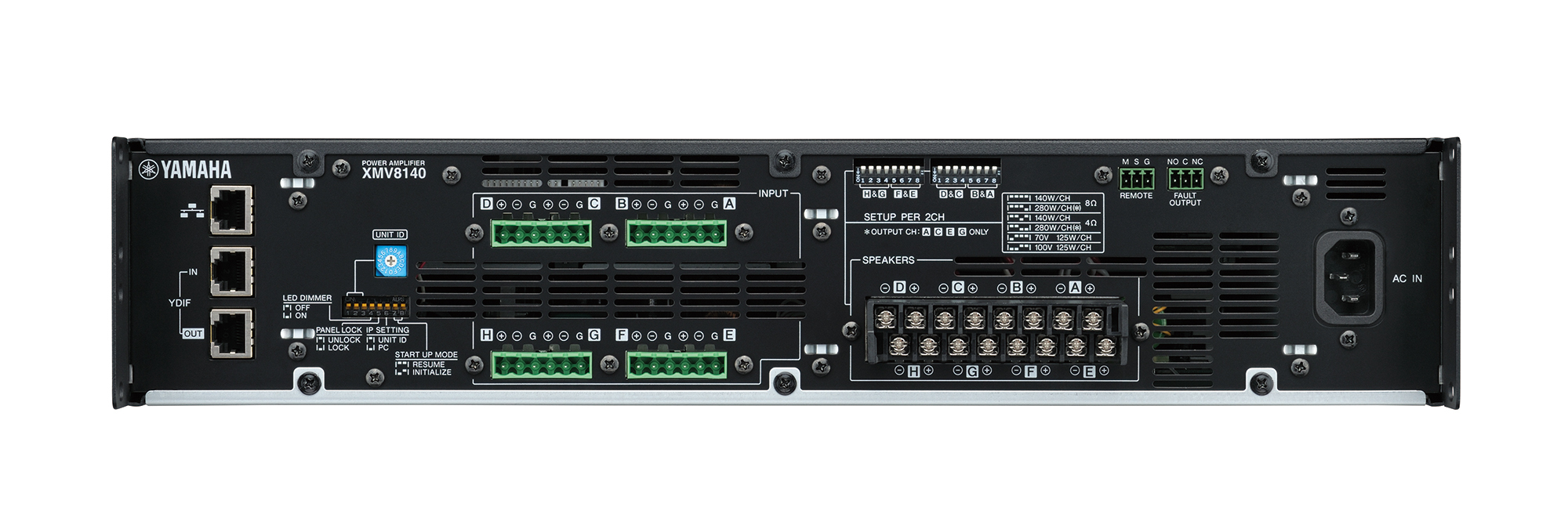

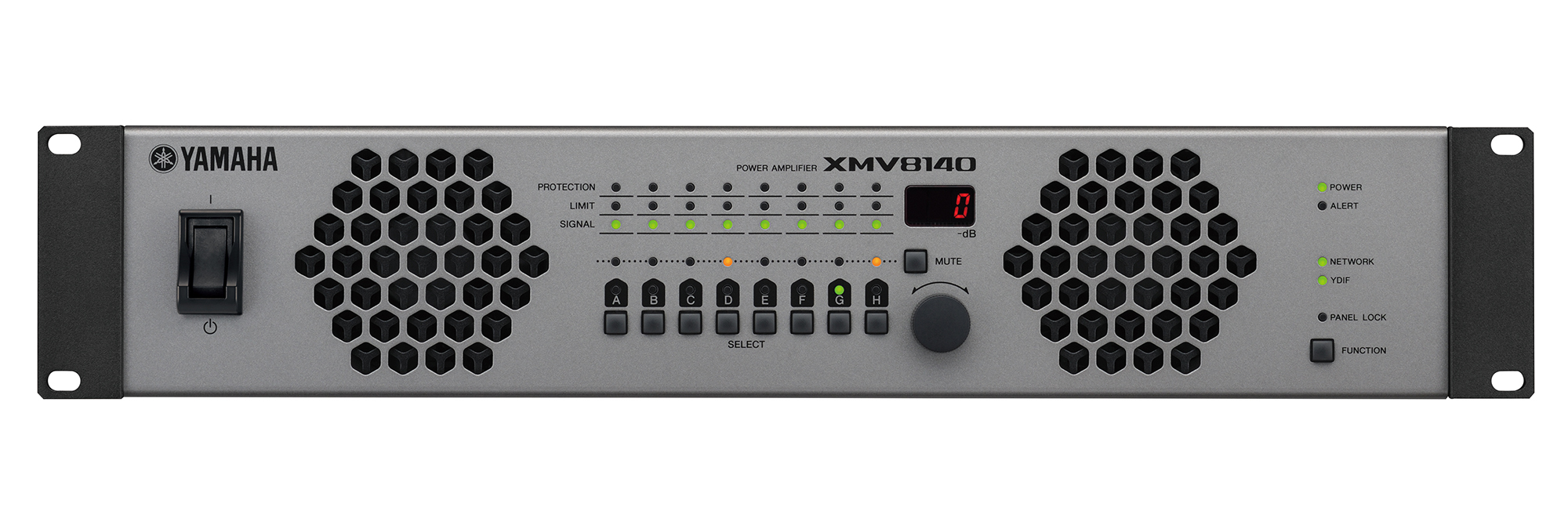

XMV8140 audio amplifier Performance/stage Black, Grey
Model XMV8140EAN 086792974576
20 specifications
- ConnectivityWired
- Weight10.1 kg
- ColourBlack, Grey
- Total Harmonic Distortion (THD)0.2%
- Speakers connectivity typeEuroblock
- PurposePerformance/stage
Overview
- Connectivity
- Wired
- Weight
- 10.1 kg
- Colour
- Black, Grey
- Total Harmonic Distortion (THD)
- 0.2%
- Speakers connectivity type
- Euroblock
- Purpose
- Performance/stage
- Brand
- Yamaha
- Category
- Audio Amplifier
- Model
- XMV8140
- Part numbers
- XMV8140, ZA41140
- EAN / UPC
- 086792974576, 4957812532570, 4957812532624
- Also known as
- Yamaha XMV8140 audio amplifier Performance/stage Black, Grey
Specifications
20 specifications in 5 groups
Audio
| Specification | Value |
|---|---|
| Total Harmonic Distortion (THD) | 0.2% |
| Signal-to-Noise Ratio (SNR) | 100 dB |
| RMS power output per channel (4 Ohm) | 140 W |
| RMS power output per channel (8 Ohm) | 140 W |
| Crosstalk (1kHz) | -60 dB |
| Input impedance | 20000 Ω |
| Frequency range | 20 - 20000 Hz |
Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | Euroblock |
| AC (power) in | Yes |
Technical details
| Specification | Value |
|---|---|
| Purpose | Performance/stage |
| Connectivity technology | Wired |
| Product colour | Black, Grey |
| Cooling type | Active |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100, 120, 230-240 V |
| Power consumption (typical) | 250 W |
| Power consumption (standby) | 23 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 422 mm |
| Height | 88 mm |
| Weight | 10.1 kg |
