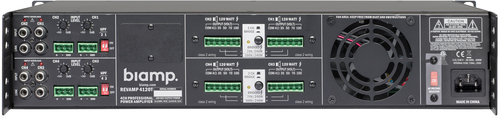

Commercial Audio REVAMP4120T 4.0 channels Performance/stage Black
Model REVAMP4120TPart no. 920-00656-00002EAN 5420035206515
38 specifications
- ConnectivityWired
- Weight12.1 kg
- ColourBlack
- Audio output channels4.0 channels
- Speakers connectivity typeEuroblock
- PurposePerformance/stage
Overview
- Connectivity
- Wired
- Weight
- 12.1 kg
- Colour
- Black
- Audio output channels
- 4.0 channels
- Speakers connectivity type
- Euroblock
- Purpose
- Performance/stage
- Brand
- Biamp
- Category
- Audio Amplifier
- Model
- REVAMP4120T
- Part number
- 920-00656-00002
- EAN / UPC
- 5420035206515
- Also known as
- Biamp Commercial Audio REVAMP4120T 4.0 channels Performance/stage Black
Specifications
38 specifications in 9 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 4.0 channels |
| Peak power per channel | 120 W |
| Amplifier class | D |
| Total Harmonic Distortion (THD) | 0.05% |
| Signal-to-Noise Ratio (SNR) | 101 dB |
| RMS power output per channel (4 Ohm) | 120 W |
| RMS power output per channel (8 Ohm) | 60 W |
| Dynamic power per channel (4 Ohm) | 120 W |
| Dynamic power per channel (8 Ohm) | 60 W |
| Bridge-mode power output per channel (8 Ohm) | 240 W |
| Input impedance | 22000 Ω |
| Frequency range | 50 - 20000 Hz |
Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | Euroblock |
| AC (power) in | Yes |
Technical details
| Specification | Value |
|---|---|
| Purpose | Performance/stage |
| Connectivity technology | Wired |
| Product colour | Black |
| Channels quantity | 4 channels |
| Cooling type | Active |
| On/off switch | Yes |
| Rack capacity | 2U |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 525 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 338 mm |
| Height | 88 mm |
| Weight | 12.1 kg |
Indication
| Specification | Value |
|---|---|
| LED indicators | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 524.8 mm |
| Package depth | 419.9 mm |
| Package height | 194.8 mm |
| Package weight | 26.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 8518402000 |
