A-S201 Black
Model A-S201Part no. AAS201BL2EAN 4957812542227
44 specifications
- ConnectivityWired
- Weight6.7 kg
- ColourBlack
- Audio output channels2.0 channels
- Speakers connectivity typeBinding post
- PurposeHome
Overview
- Connectivity
- Wired
- Weight
- 6.7 kg
- Colour
- Black
- Audio output channels
- 2.0 channels
- Speakers connectivity type
- Binding post
- Purpose
- Home
- Brand
- Yamaha
- Category
- Audio Amplifier
- Model
- A-S201
- Part numbers
- AAS201BL2, AAS201SI2
- EAN / UPC
- 4957812542227, 4957812542234, 4957812542302
- Also known as
- Yamaha A-S201 Black
Specifications
44 specifications in 8 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 2.0 channels |
| Peak power per channel | 115 W |
| Total Harmonic Distortion (THD) | 0.025% |
| Signal-to-Noise Ratio (SNR) | 100 dB |
| RMS power output per channel (4 Ohm) | 140 W |
| RMS power output per channel (8 Ohm) | 100 W |
| Dynamic power per channel (2 Ohm) | 180 W |
| Dynamic power per channel (4 Ohm) | 165 W |
| Dynamic power per channel (6 Ohm) | 150 W |
| Dynamic power per channel (8 Ohm) | 125 W |
| Input sensitivity | 500 mV |
| Output level | 500 mV |
| Input impedance | 47000 Ω |
| Output impedance | 2200 Ω |
| Frequency range | 10 - 100000 Hz |
Ports & interfaces
| Specification | Value |
|---|---|

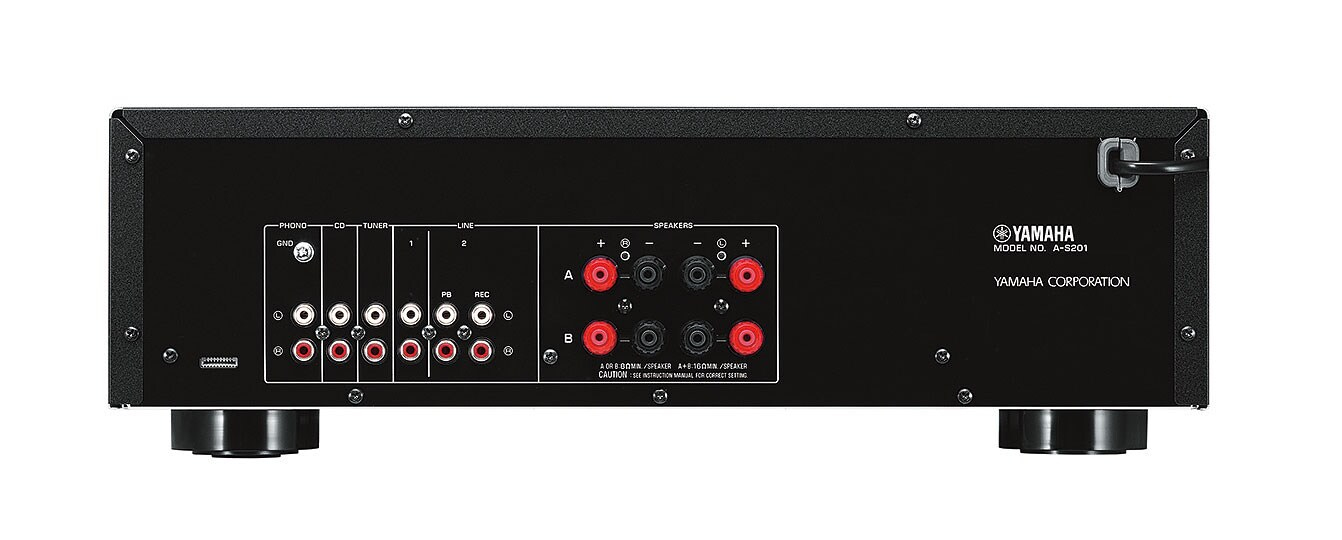

| Speakers connectivity type | Binding post |
| Binding post ports quantity | 8 |
| CD audio in (L,R) | Yes |
| Line inputs (RCA) | 12 |
| Phono audio in (L,R) | Yes |
| Speaker selector | A / B / A+B |
| Tuner audio in (L,R) | Yes |
Technical details
| Specification | Value |
|---|---|
| Purpose | Home |
| Connectivity technology | Wired |
| Product colour | Black |
| Volume control | Rotary |
| Bass adjustment | Yes |
| Treble adjustment | Yes |
| On/off switch | Yes |
| Source Direct function | Yes |
| Turntable connectivity | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) | 175 W |
| Power consumption (standby) | 0.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 333 mm |
| Height | 141 mm |
| Weight | 6.7 kg |
Indication
| Specification | Value |
|---|---|
| LED indicators | Yes |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Remote control included | Yes |
