A-S301 Black
Model A-S301Part no. AAS301BL2EAN 027108948690
57 specifications
- ConnectivityWired
- Weight9 kg
- ColourBlack
- Audio output channels2.1 channels
- Speakers connectivity typeBinding post
- PurposeHome
Overview
- Connectivity
- Wired
- Weight
- 9 kg
- Colour
- Black
- Audio output channels
- 2.1 channels
- Speakers connectivity type
- Binding post
- Purpose
- Home
- Brand
- Yamaha
- Category
- Audio Amplifier
- Model
- A-S301
- Part numbers
- AAS301BL2, AAS301SI2
- EAN / UPC
- 027108948690, 4957812573580, 4957812573658
- Also known as
- Yamaha A-S301 Black
Specifications
57 specifications in 8 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 2.1 channels |
| Peak power per channel | 95 W |
| Total Harmonic Distortion (THD) | 0.019% |
| Signal-to-Noise Ratio (SNR) | 99 dB |
| Damping factor | 210 |
| RMS power output per channel (8 Ohm) | 60 W |
| Input sensitivity | 200 mV |
| Output level | 3500 mV |
| Input impedance | 47000 Ω |
| Output impedance | 1200 Ω |
| Frequency range | 10 - 50000 Hz |

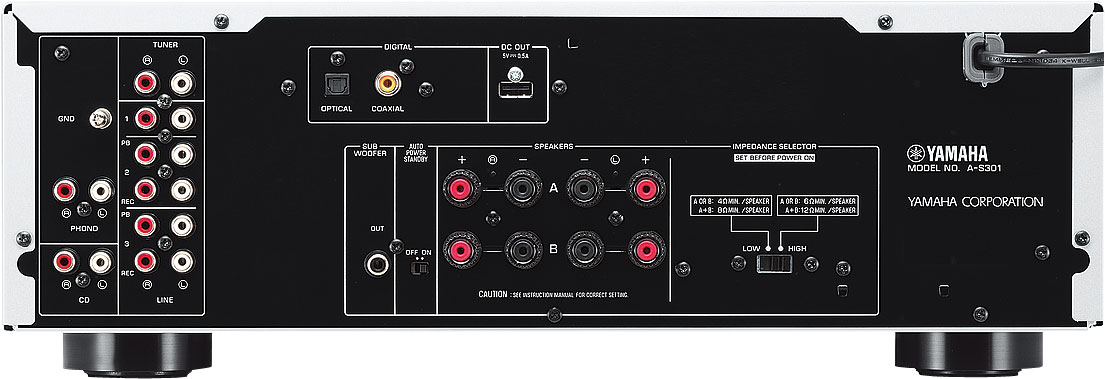

Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | Binding post |
| USB 2.0 ports quantity | 0 |
| Audio (L/R) in | 6 |
| Audio (L/R) out | 2 |
| DC-in jack | Yes |
| Binding post ports quantity | 8 |
| CD audio in (L,R) | Yes |
| Digital audio coaxial in | 1 |
| Digital audio coaxial out | 1 |
| Digital audio optical in | 1 |
| Digital audio optical out | 1 |
| Ethernet LAN (RJ-45) ports | 0 |
| Line inputs (RCA) | 16 |
| Microphone in | Yes |
| Phono audio in (L,R) | Yes |
| Speaker selector | A / B / A+B |
| Subwoofer out | 1 |
| Tuner audio in (L,R) | Yes |
Technical details
| Specification | Value |
|---|---|
| Purpose | Home |
| Connectivity technology | Wired |
| Product colour | Black |
| Wi-Fi | No |
| Bluetooth | No |
| Bluetooth version | Not applicable |
| AirPlay | No |
| Volume control | Rotary |
| Bass adjustment | Yes |
| Treble adjustment | Yes |
| Ethernet LAN | No |
| HDMI | No |
| On/off switch | Yes |
| Source Direct function | Yes |
| Turntable connectivity | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) | 190 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 430 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 387 mm |
| Height | 151 mm |
| Weight | 9 kg |
Indication
| Specification | Value |
|---|---|
| LED indicators | Yes |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
