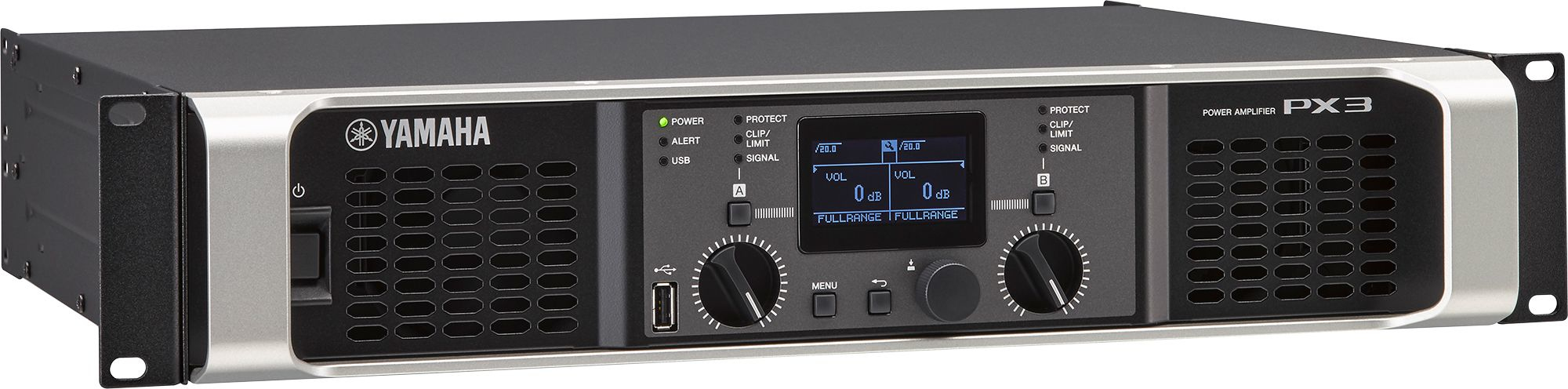

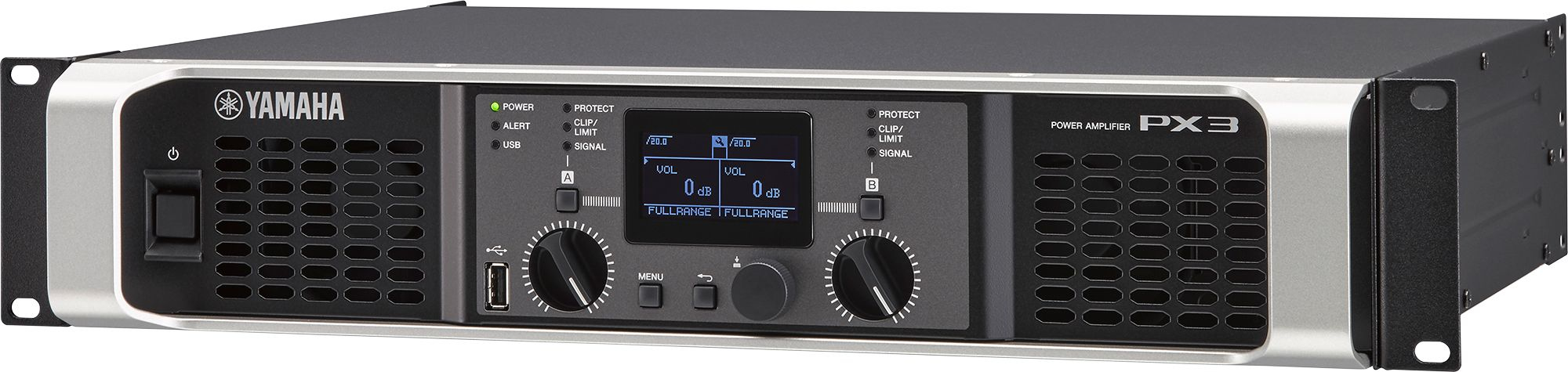

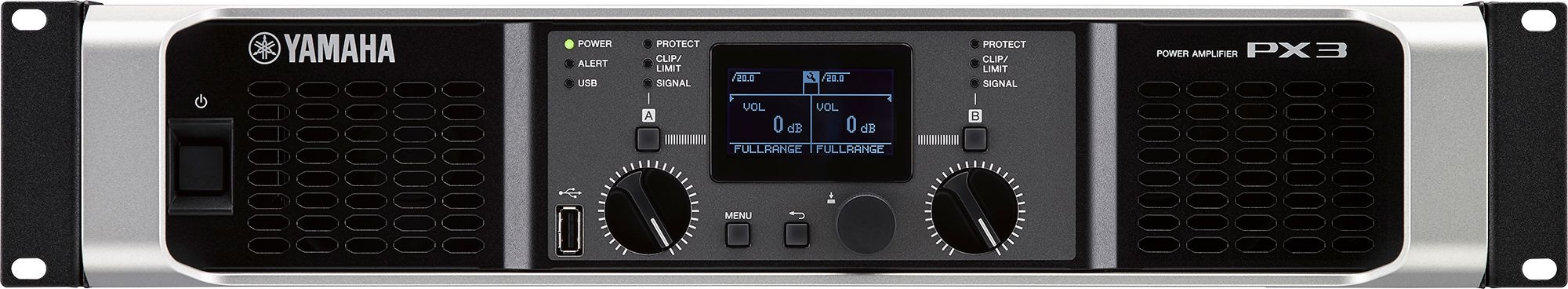

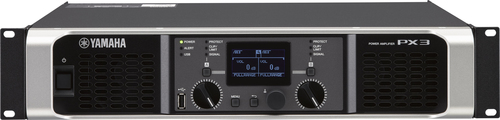

PX3 audio amplifier Performance/stage
Model PX3EAN 4957812587334
31 specifications
- ConnectivityWired
- Weight6.9 kg
- Peak power per channel1000 W
- Speakers connectivity typeXLR / NL4
- PurposePerformance/stage
- AC input voltage220 - 240 V
Overview
- Connectivity
- Wired
- Weight
- 6.9 kg
- Peak power per channel
- 1000 W
- Speakers connectivity type
- XLR / NL4
- Purpose
- Performance/stage
- AC input voltage
- 220 - 240 V
- Brand
- Yamaha
- Category
- Audio Amplifier
- Model
- PX3
- Part number
- PX3
- EAN / UPC
- 4957812587334, 4957812587341
- Also known as
- Yamaha PX3 audio amplifier Performance/stage
Specifications
31 specifications in 8 groups
Audio
| Specification | Value |
|---|---|
| Peak power per channel | 1000 W |
| Amplifier class | D |
| Total Harmonic Distortion (THD) | 0.1% |
| Signal-to-Noise Ratio (SNR) | 100 dB |
| RMS power output per channel (2 Ohm) | 300 W |
| RMS power output per channel (4 Ohm) | 500 W |
| RMS power output per channel (8 Ohm) | 300 W |
| Dynamic power per channel (4 Ohm) | 1000 W |
| Dynamic power per channel (8 Ohm) | 600 W |
| Crosstalk (1kHz) | -60 dB |
| Input impedance | 20 Ω |
| Audio quality | 24 bit |
| Frequency range | 20 - 20000 Hz |

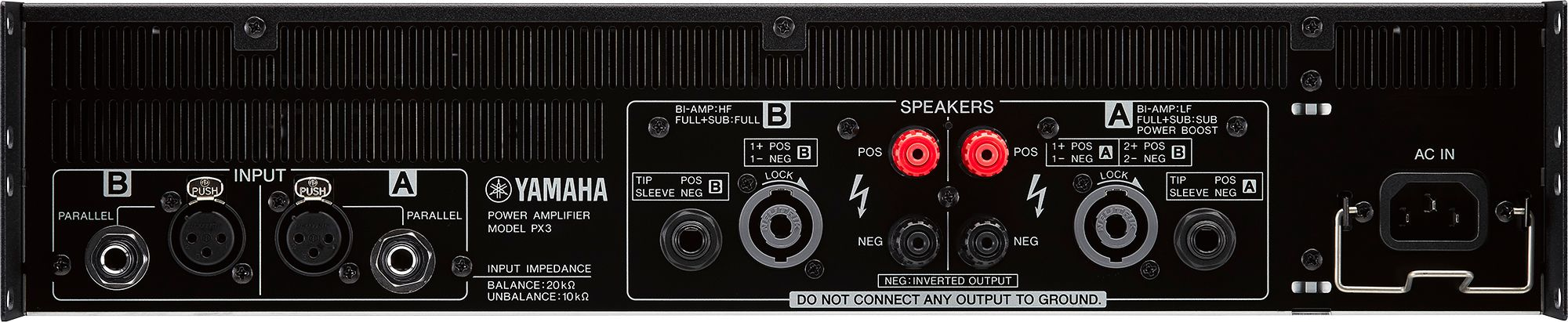

Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | XLR / NL4 |
| USB 2.0 ports quantity | 1 |
| XLR in | Yes |
Technical details
| Specification | Value |
|---|---|
| Purpose | Performance/stage |
| Connectivity technology | Wired |
| Gain adjustment | Rotary |
Power
| Specification | Value |
|---|---|
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 160 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 388 mm |
| Height | 88 mm |
| Weight | 6.9 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Indication
| Specification | Value |
|---|---|
| LED indicators | Yes |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
| Manual | Yes |
