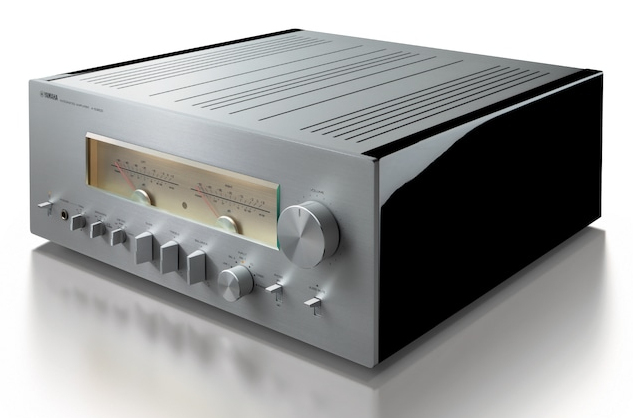

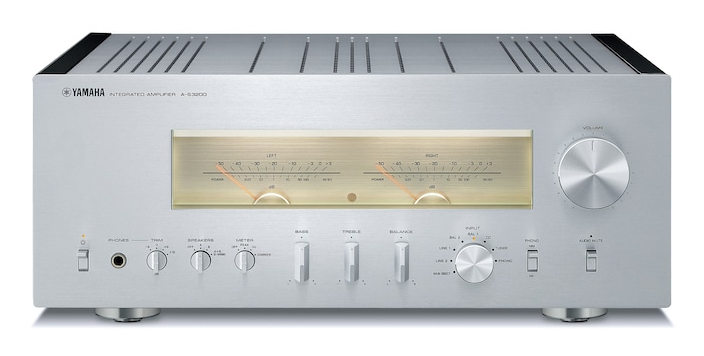

AS3200SIPB audio amplifier 2.0 channels Home Silver
Model AS3200SIPBEAN 4957812652476
29 specifications
- ConnectivityWired
- ColourSilver
- Audio output channels2.0 channels
- Speakers connectivity typeBinding post
- PurposeHome
- Built-in displayYes
Overview
- Connectivity
- Wired
- Colour
- Silver
- Audio output channels
- 2.0 channels
- Speakers connectivity type
- Binding post
- Purpose
- Home
- Built-in display
- Yes
- Brand
- Yamaha
- Category
- Audio Amplifier
- Model
- AS3200SIPB
- Part number
- AS3200SIPB
- EAN / UPC
- 4957812652476
- Also known as
- Yamaha AS3200SIPB audio amplifier 2.0 channels Home Silver
Specifications
29 specifications in 7 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 2.0 channels |
| Peak power per channel | 170 W |
| Amplifier class | A/B |
| Total Harmonic Distortion (THD) | 0.7% |
| Signal-to-Noise Ratio (SNR) | 90 dB |
| Damping factor | 250 |
| Dynamic power per channel (2 Ohm) | 300 W |
| Dynamic power per channel (4 Ohm) | 200 W |
| Dynamic power per channel (6 Ohm) | 150 W |
| Dynamic power per channel (8 Ohm) | 120 W |
| Output impedance | 8 Ω |
| Frequency range | 5 - 100000 Hz |
Ports & interfaces
| Specification | Value |
|---|---|

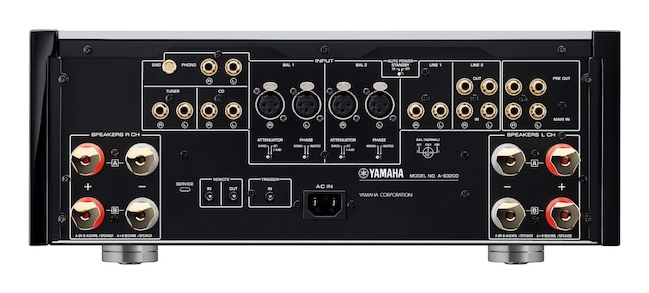

| Speakers connectivity type | Binding post |
Technical details
| Specification | Value |
|---|---|
| Purpose | Home |
| Connectivity technology | Wired |
| Product colour | Silver |
| Bass adjustment | Yes |
| Treble adjustment | Yes |
| On/off switch | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 464 mm |
| Height | 180 mm |
| Cable length | 24700 m |
Packaging data
| Specification | Value |
|---|---|
| Package width | 596 mm |
| Package depth | 583 mm |
| Package height | 318 mm |
| Package weight | 31.5 kg |
