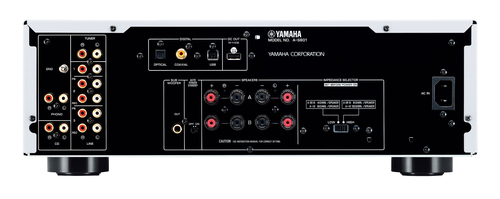

A-S801 Home Black
Model A-S801Part no. A-S801BLEAN 027108948829
23 specifications
- ConnectivityWired
- Weight12.1 kg
- ColourBlack
- Peak power per channel100 W
- USB 2.0 ports quantity1
- PurposeHome
Overview
- Connectivity
- Wired
- Weight
- 12.1 kg
- Colour
- Black
- Peak power per channel
- 100 W
- USB 2.0 ports quantity
- 1
- Purpose
- Home
- Brand
- Yamaha
- Category
- Audio Amplifier
- Model
- A-S801
- Part number
- A-S801BL
- EAN / UPC
- 027108948829, 4957812573870
- Also known as
- Yamaha A-S801 Home Black
Specifications
23 specifications in 6 groups
Audio
| Specification | Value |
|---|---|
| Peak power per channel | 100 W |
| Total Harmonic Distortion (THD) | 0.019% |
| Signal-to-Noise Ratio (SNR) | 99 dB |
| Damping factor | 240 |
| RMS power output per channel (8 Ohm) | 200 W |
| Dynamic power per channel (2 Ohm) | 290 W |
| Dynamic power per channel (4 Ohm) | 220 W |
| Dynamic power per channel (6 Ohm) | 170 W |
| Dynamic power per channel (8 Ohm) | 140 W |
| Frequency range | 10 - 100000 Hz |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Digital audio coaxial in | 1 |
| Digital audio optical in | 1 |
Technical details
| Specification | Value |
|---|---|
| Purpose | Home |
| Connectivity technology | Wired |
| Product colour | Black |
| On/off switch | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 152 mm |
| Height | 387 mm |
| Weight | 12.1 kg |
