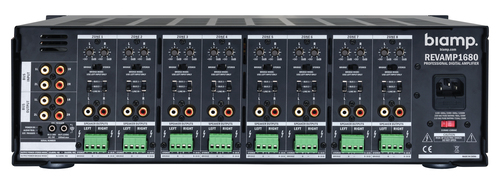

Commercial Audio REVAMP1680 Performance/stage Black
Model REVAMP1680Part no. 920-01468-00002EAN 5420035201930
34 specifications
- ConnectivityWired
- Weight21.7 kg
- ColourBlack
- Peak power per channel80 W
- Speakers connectivity typeEuroblock
- PurposePerformance/stage
Overview
- Connectivity
- Wired
- Weight
- 21.7 kg
- Colour
- Black
- Peak power per channel
- 80 W
- Speakers connectivity type
- Euroblock
- Purpose
- Performance/stage
- Brand
- Biamp
- Category
- Audio Amplifier
- Model
- REVAMP1680
- Part number
- 920-01468-00002
- EAN / UPC
- 5420035201930
- Also known as
- Biamp Commercial Audio REVAMP1680 Performance/stage Black
Specifications
34 specifications in 8 groups
Audio
| Specification | Value |
|---|---|
| Peak power per channel | 80 W |
| Amplifier class | D |
| Total Harmonic Distortion (THD) | 0.5% |
| Signal-to-Noise Ratio (SNR) | 98 dB |
| RMS power output per channel (4 Ohm) | 80 W |
| RMS power output per channel (8 Ohm) | 40 W |
| Dynamic power per channel (4 Ohm) | 100 W |
| Dynamic power per channel (8 Ohm) | 60 W |
| Input impedance | 22000 Ω |
| Frequency range | 20 - 30000 Hz |
Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | Euroblock |
| Audio (L/R) in | 8 |
| Audio (L/R) out | 4 |
| AC (power) in | Yes |
Technical details
| Specification | Value |
|---|---|
| Purpose | Performance/stage |
| Connectivity technology | Wired |
| Product colour | Black |
| Channels quantity | 16 channels |
| Cooling type | Passive |
| Rack capacity | 3U |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 1350 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 411 mm |
| Height | 132 mm |
| Weight | 21.7 kg |
Indication
| Specification | Value |
|---|---|
| LED indicators | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 542.8 mm |
| Package depth | 542.8 mm |
| Package height | 279.9 mm |
| Package weight | 24 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
