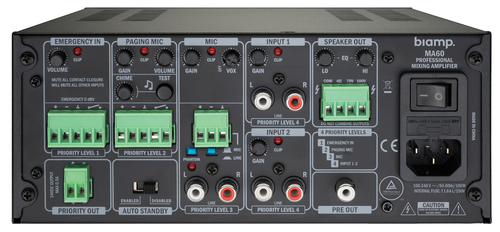

Commercial Audio MA60 Black
Model MA60Part no. 920-00662-00002EAN 810132272622
32 specifications
- ConnectivityWired
- Weight2.6 kg
- ColourBlack
- Amplifier classD
- Speakers connectivity typeEuroblock
- AC input voltage100 - 240 V
Overview
- Connectivity
- Wired
- Weight
- 2.6 kg
- Colour
- Black
- Amplifier class
- D
- Speakers connectivity type
- Euroblock
- AC input voltage
- 100 - 240 V
- Brand
- Biamp
- Category
- Audio Amplifier
- Model
- MA60
- Part numbers
- 920-00662-00002, 913.0662.900
- EAN / UPC
- 810132272622, 5420035205587
- Also known as
- Biamp Commercial Audio MA60 Black
Specifications
32 specifications in 9 groups
Audio
| Specification | Value |
|---|---|
| Amplifier class | D |
| Total Harmonic Distortion (THD) | 0.5% |
| Signal-to-Noise Ratio (SNR) | 90 dB |
| RMS rated power | 60 W |
Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | Euroblock |
| AC (power) in | Yes |
| Line inputs (RCA) | 2 |
| Line outputs (RCA) | 1 |
| Pre out port | Yes |
Technical details
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Product colour | Black |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 24 V |
| Power consumption (typical) | 100 W |
| Power consumption (standby) | 0.5 W |
| Maximum current | 0.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 216 mm |
| Depth | 250 mm |
| Height | 89 mm |
| Weight | 2.6 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
Packaging data
| Specification | Value |
|---|---|
| Package width | 349.8 mm |
| Package depth | 296.9 mm |
| Package height | 185.9 mm |
| Package weight | 3.35 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 8518402000 |
