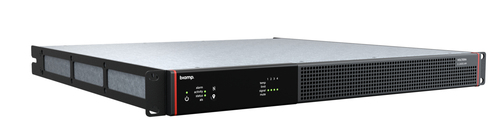

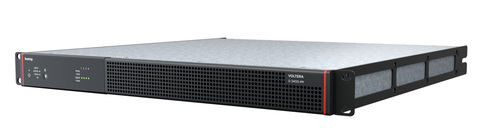

D 2400.4M
Model D 2400.4MPart no. 920-01983-00002EAN 810132272738
33 specifications
- ConnectivityWired
- Weight7.8 kg
- ColourBlack
- Audio output channels4.0 channels
- Speakers connectivity typeEuroblock
- PurposePublic Address (PA) system
Overview
- Connectivity
- Wired
- Weight
- 7.8 kg
- Colour
- Black
- Audio output channels
- 4.0 channels
- Speakers connectivity type
- Euroblock
- Purpose
- Public Address (PA) system
- Brand
- Biamp
- Category
- Audio Amplifier
- Model
- D 2400.4M
- Part number
- 920-01983-00002
- EAN / UPC
- 810132272738
- Also known as
- Biamp Voltera D 2400.4M 4.0 channels Public Address (PA) system Black
Specifications
33 specifications in 7 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 4.0 channels |
| Peak power per channel | 1800 W |
| Amplifier class | D |
| Total Harmonic Distortion (THD) | 0.05% |
| RMS power output per channel (4 Ohm) | 600 W |
| RMS power output per channel (8 Ohm) | 600 W |
| Dynamic power per channel (4 Ohm) | 1800 W |
| Dynamic power per channel (8 Ohm) | 1600 W |
| Gain | 29 dB |
| Frequency range | 20 - 20000 Hz |
| RMS rated power | 2400 W |

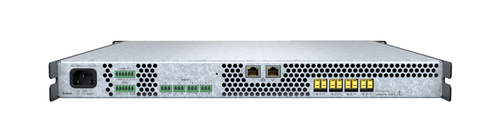

Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | Euroblock |
| AC (power) in | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
Technical details
| Specification | Value |
|---|---|
| Purpose | Public Address (PA) system |
| Connectivity technology | Wired |
| Product colour | Black |
| Channels quantity | 4 channels |
| Cooling type | Active |
| Rack capacity | 1U |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 2400 W |
| Maximum current | 40 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 444 mm |
| Depth | 430 mm |
| Height | 44 mm |
| Weight | 7.8 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
Indication
| Specification | Value |
|---|---|
| LED indicators | Status, Activity, Fault, Mute, Signal, Limit |
