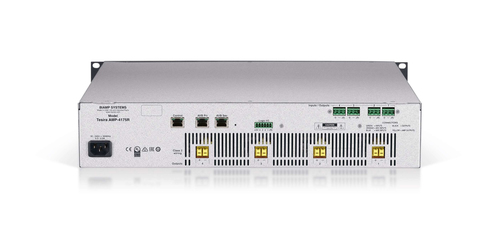

Tesira AMP-4175R 4-channel
175W Amplifier
Model AMP-4175RPart no. 912.0414.900EAN 814367023745
33 specifications
- ConnectivityWired
- Weight9.3 kg
- ColourBlack, Sand
- Audio output channels4.0 channels
- AC (power) inYes
- Power source typeAC
Overview
- Connectivity
- Wired
- Weight
- 9.3 kg
- Colour
- Black, Sand
- Audio output channels
- 4.0 channels
- AC (power) in
- Yes
- Power source type
- AC
- Brand
- Biamp
- Category
- Audio Amplifier
- Model
- AMP-4175R
- Part number
- 912.0414.900
- EAN / UPC
- 814367023745
- Also known as
- Biamp Tesira AMP-4175R 4-channel 175W Amplifier
Specifications
33 specifications in 9 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 4.0 channels |
| Peak power per channel | 175 W |
| Total Harmonic Distortion (THD) | 0.3% |
| RMS power output per channel (4 Ohm) | 175 W |
| RMS power output per channel (8 Ohm) | 175 W |
| Bridge-mode power output per channel (8 Ohm) | 350 W |
| Input impedance | 8000 Ω |
| Frequency range | 20 - 20000 Hz |
Ports & interfaces
| Specification | Value |
|---|---|
| AC (power) in | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
Technical details
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Product colour | Black, Sand |
| Cooling type | Active |
| Rack capacity | 2U |
| Country of origin | United States |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 5.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 441 mm |
| Height | 89 mm |
| Weight | 9.3 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
Packaging data
| Specification | Value |
|---|---|
| Package width | 584.2 mm |
| Package depth | 584.2 mm |
| Package height | 228.6 mm |
| Package weight | 11.5 kg |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 8518402000 |
