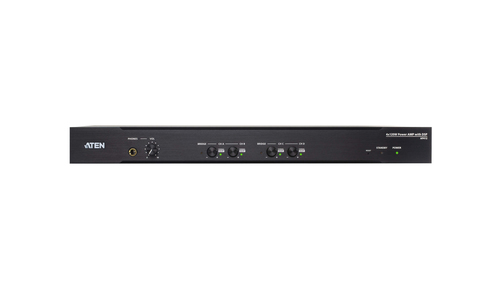

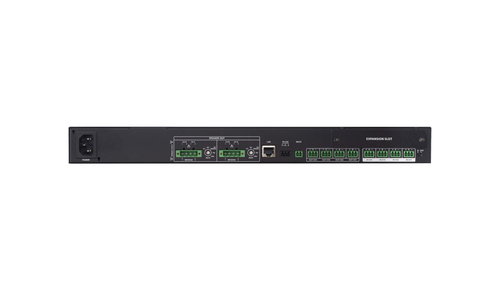

ATEN 4 × 120W Power Amplifier with DSP
ATEN

4 × 120W Power Amplifier with DSP

Model AP412-AT-GEAN 4710469349683

29 specifications
  • ConnectivityWired
  • Weight5.21 kg
  • ColourBlack
  • Audio output channels4.0 channels
  • Speakers connectivity typeEuroblock
  • Power source typeAC
See all specifications

Overview

Connectivity
Wired
Weight
5.21 kg
Colour
Black
Audio output channels
4.0 channels
Speakers connectivity type
Euroblock
Power source type
AC
Brand
ATEN
Model
AP412-AT-G
Part number
AP412-AT-G
EAN / UPC
4710469349683
Also known as
ATEN 4 × 120W Power Amplifier with DSP

Specifications

29 specifications in 7 groups

Audio

Audio output channels4.0 channels
Peak power per channel120 W
Amplifier classD
Gain3 dB
Output level30 mV
Output impedance200 Ω
Frequency range50 - 20000 Hz

Ports & interfaces

Speakers connectivity typeEuroblock
Headphone outputs1
Ethernet LAN (RJ-45) ports1
RS-232 connector type3-pin Euroblock

Technical details

Connectivity technologyWired
Product colourBlack
Volume controlRotary
Bridge functionYes
Country of originTaiwan

Power

Power source typeAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Maximum current4 A

Weight & dimensions

Width339.7 mm
Depth432.4 mm
Height44 mm
Weight5.21 kg

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Logistics data

Harmonized System (HS) code85184000
