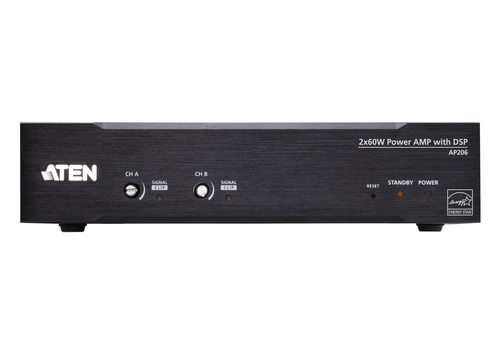

ATEN AP206-AT-U audio amplifier Black
ATEN

AP206-AT-U audio amplifier Black

Model AP206-AT-U

28 specifications
  • ConnectivityWired
  • Weight2.15 kg
  • ColourBlack
  • Peak power per channel120 W
  • Speakers connectivity typeEuroblock
  • Power source typeAC
See all specifications

Overview

Connectivity
Wired
Weight
2.15 kg
Colour
Black
Peak power per channel
120 W
Speakers connectivity type
Euroblock
Power source type
AC
Brand
ATEN
Model
AP206-AT-U
Part number
AP206-AT-U
Also known as
ATEN AP206-AT-U audio amplifier Black

Specifications

28 specifications in 7 groups

Audio

Peak power per channel120 W
Amplifier classD
Total Harmonic Distortion (THD)0.1%
Input impedance20000 Ω
Output impedance600 Ω
Frequency range50 - 20000 Hz
RMS rated power120 W

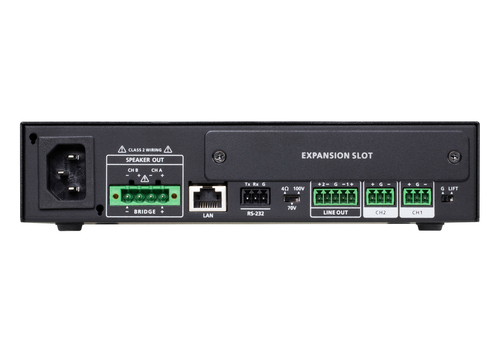

Ports & interfaces

Speakers connectivity typeEuroblock
Number of Euroblock input connectors2
Number of Euroblock output connectors2
RS-232 connector type3-pin
RS-232 ports1

Technical details

Connectivity technologyWired
Product colourBlack
MaterialMetal

Power

Power source typeAC
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Maximum current2 A
Power protection featuresOverload, Under voltage

Weight & dimensions

Width323 mm
Depth200 mm
Height44 mm
Weight2.15 kg

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Certificates

CertificationFCC, CE, UKCA
