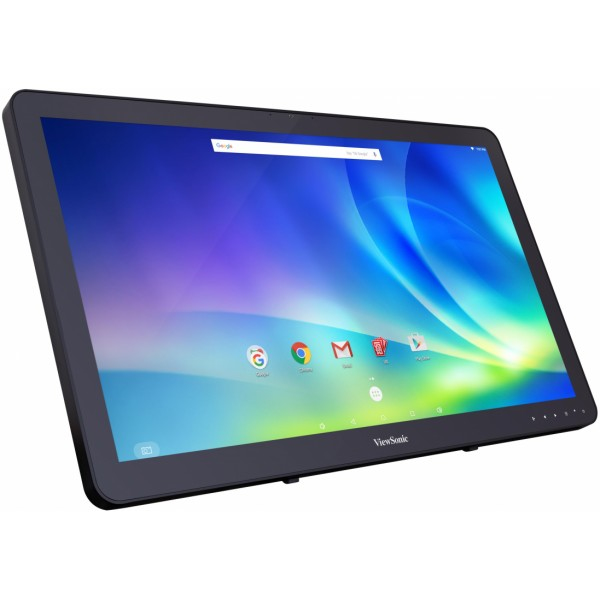

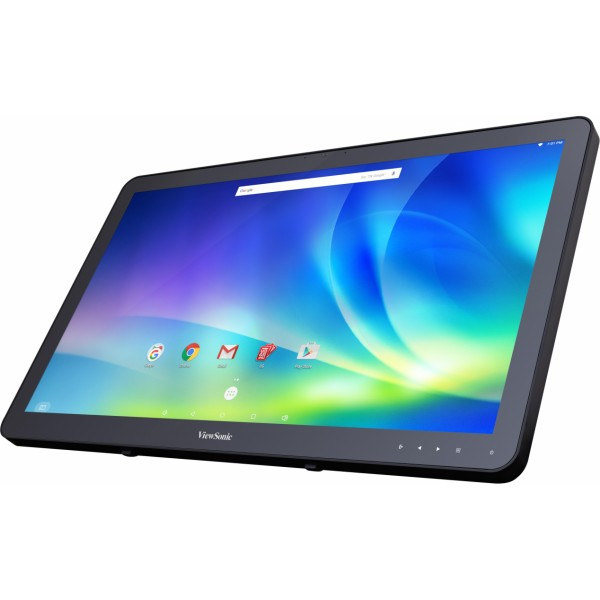

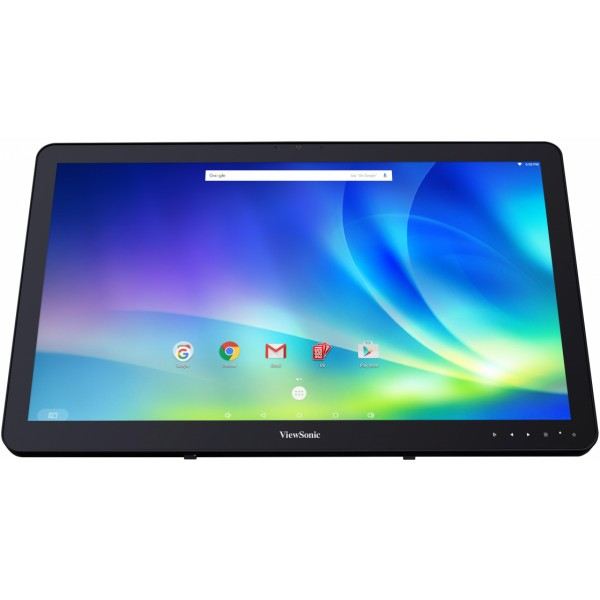

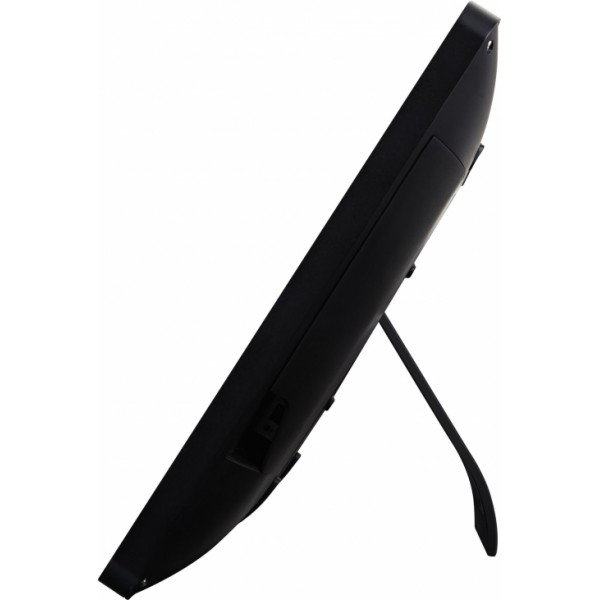

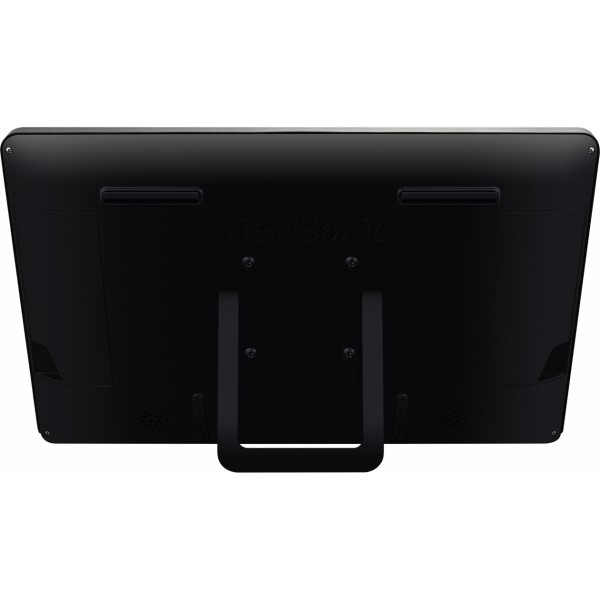

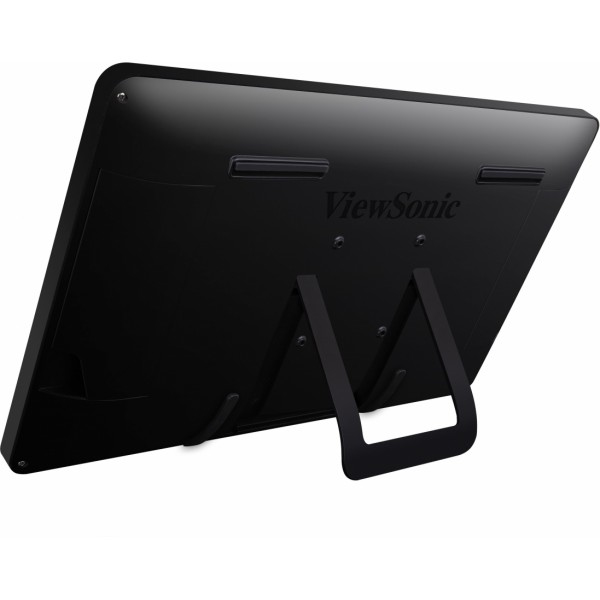

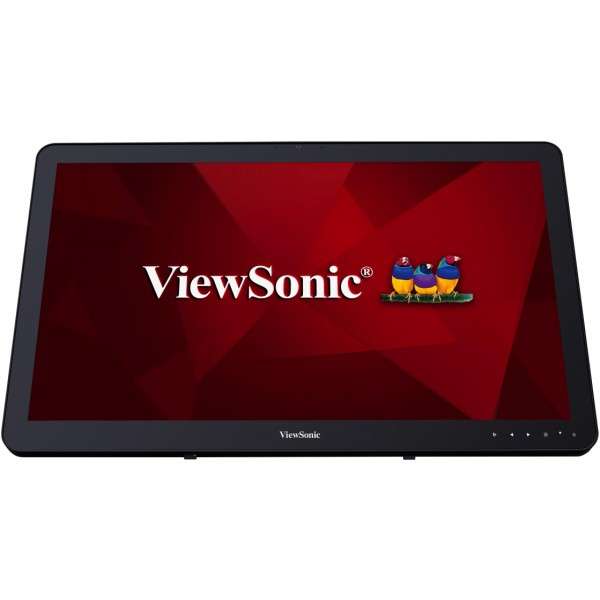

Viewsonic VSD242 Smart Display

Viewsonic VSD242 Smart Display

Model VSD242 Smart DisplayPart no. VSD242-BKA-EU0EAN 766907827217

70 specifications

Display59.9 cm (23.6")
Resolution1920 x 1080 pixels
ProcessorRockchip
Memory2 GB
Storage16 GB
SpeedWi-Fi 4 (802.11n)

See all specifications

Overview

Display: 59.9 cm (23.6")
Resolution: 1920 x 1080 pixels
Processor: Rockchip
Memory: 2 GB
Storage: 16 GB
Speed: Wi-Fi 4 (802.11n)

Brand: Viewsonic
Category: All-in-One PCs/Workstations
Model: VSD242 Smart Display
Part number: VSD242-BKA-EU0
EAN / UPC: 766907827217, 5057454811084
Also known as: Viewsonic VSD242 Smart Display Rockchip RK3288 59.9 cm (23.6") 1920 x 1080 pixels Touchscreen All-in-One thin client 2 GB DDR3-SDRAM 16 GB Flash Android 5.1 Wi-

Specifications

70 specifications in 17 groups

Display

Specification	Value
Display diagonal	59.9 cm (23.6")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	TFT
Response time	16 ms
Screen shape	Flat

Processor

Specification	Value
Processor manufacturer	Rockchip
Processor family	Rockchip
Processor model	RK3288
Processor cores	4
Processor frequency	1.8 GHz

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM

Storage

Specification	Value
Total storage capacity	16 GB
Storage media	Flash
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	5 W

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	5 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

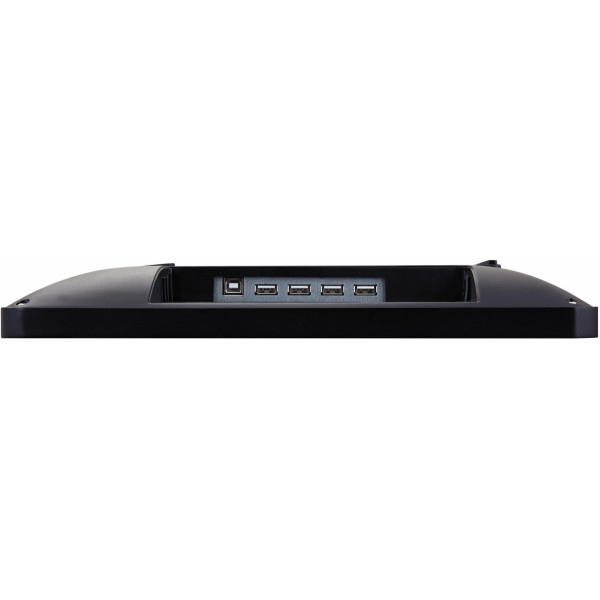

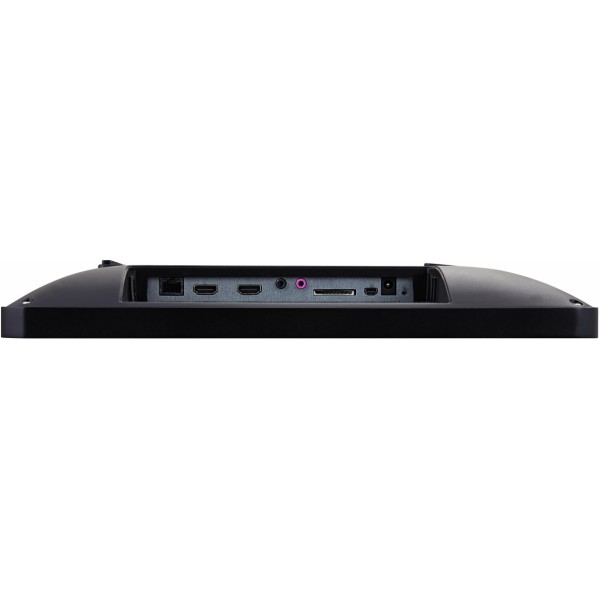

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes

Design

Specification	Value
Product colour	Black
Wall mountable	No

Performance

Specification	Value
Product type	All-in-One thin client
Accelerometer	No

Software

Specification	Value
Operating system installed	Android 5.1

Power

Specification	Value
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	572.9 mm
Depth (with stand)	47 mm
Height (with stand)	351.8 mm
Weight (with stand)	5.64 kg
Package width	643 mm
Package depth	140 mm
Package height	435 mm
Package weight	7.56 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 90%

Certificates

Specification	Value
Compliance certificates	RoHS

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
Power cord included	Yes
Quick start guide	Yes

Other features

Specification	Value
Autonomy mode	No
eMMC capacity	16 GB
