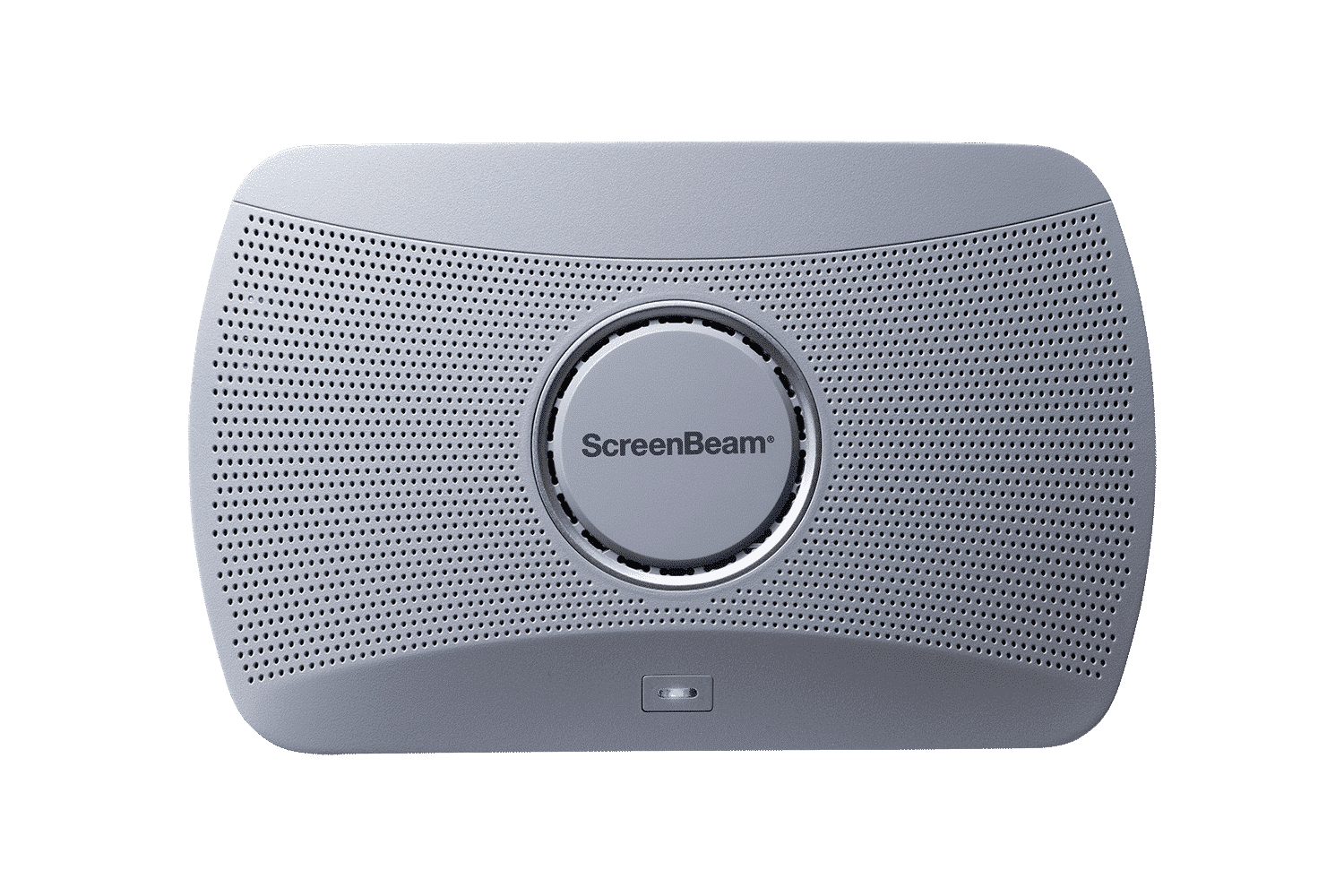

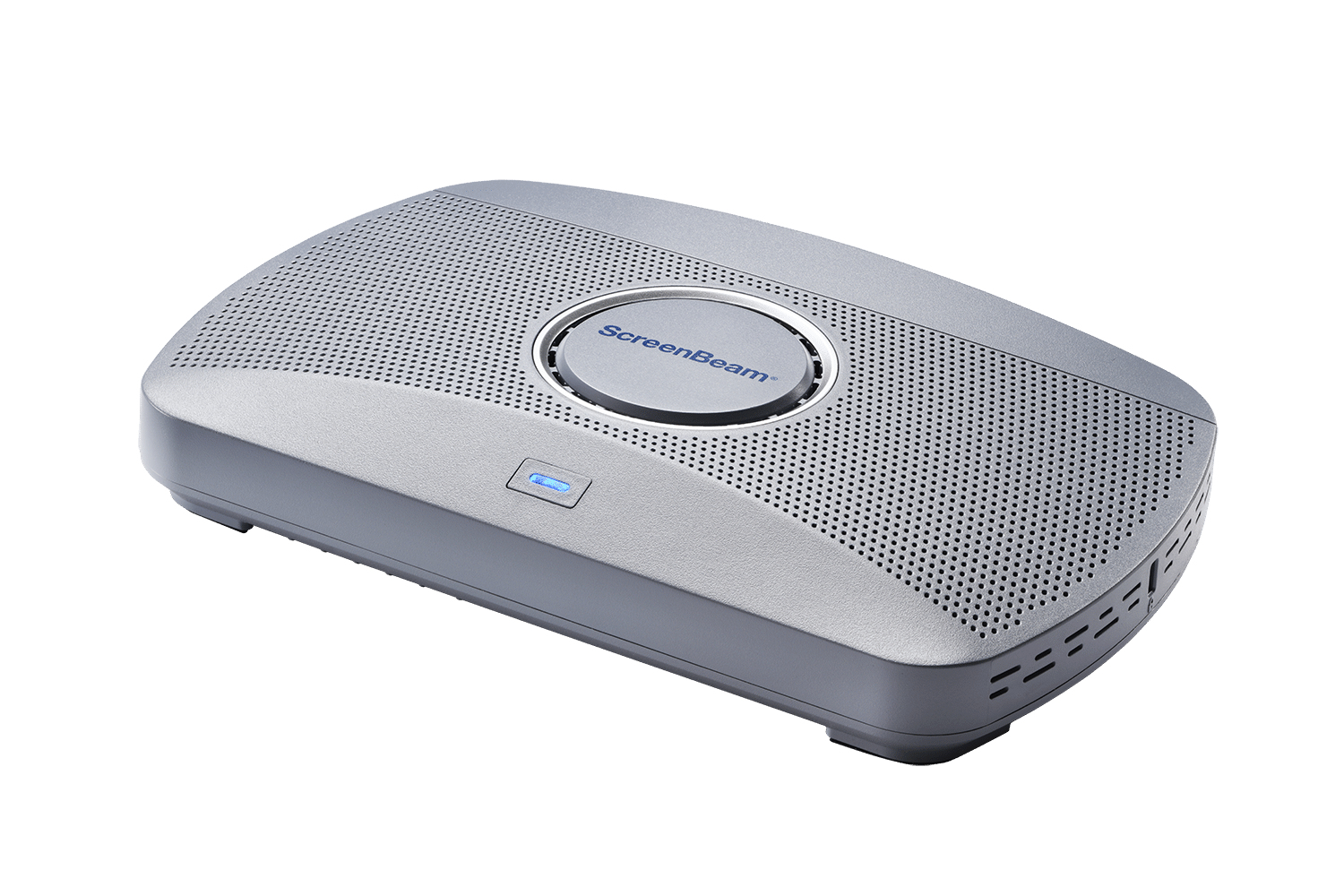

SBWD1000EDUG2LA wireless presentation system HDMI Desktop
Model SBWD1000EDUG2LAEAN 850015351112
28 specifications
- ConnectivityHDMI
- TypeDesktop
- Weight453.5 g
- ColourGrey
- Wi-Fi standardsWi-Fi 5 (802.11ac)
- Power source typeAC
Overview
- Connectivity
- HDMI
- Type
- Desktop
- Weight
- 453.5 g
- Colour
- Grey
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- Power source type
- AC
- Brand
- ScreenBeam
- Category
- Wireless Presentation System
- Model
- SBWD1000EDUG2LA
- Part number
- SBWD1000EDUG2LA
- EAN / UPC
- 850015351112
- Also known as
- ScreenBeam SBWD1000EDUG2LA wireless presentation system HDMI Desktop
Specifications
28 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Grey |
| Certification | FCC, RED, RoHS, UL |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Networking standards | IEEE 802.1x |

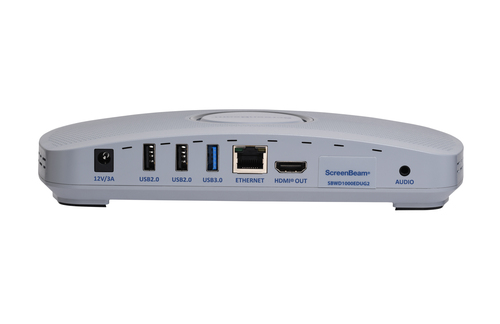

Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| HDMI input ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Input voltage | 12 V |
| Input current | 3 A |
| Power consumption (max) | 24.8 W |
| Power consumption (typical) | 8.4 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac compatibility | Yes |
| Other operating systems supported | Android, ChromeOS, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 85 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 144 mm |
| Height | 37.5 mm |
| Weight | 453.5 g |
