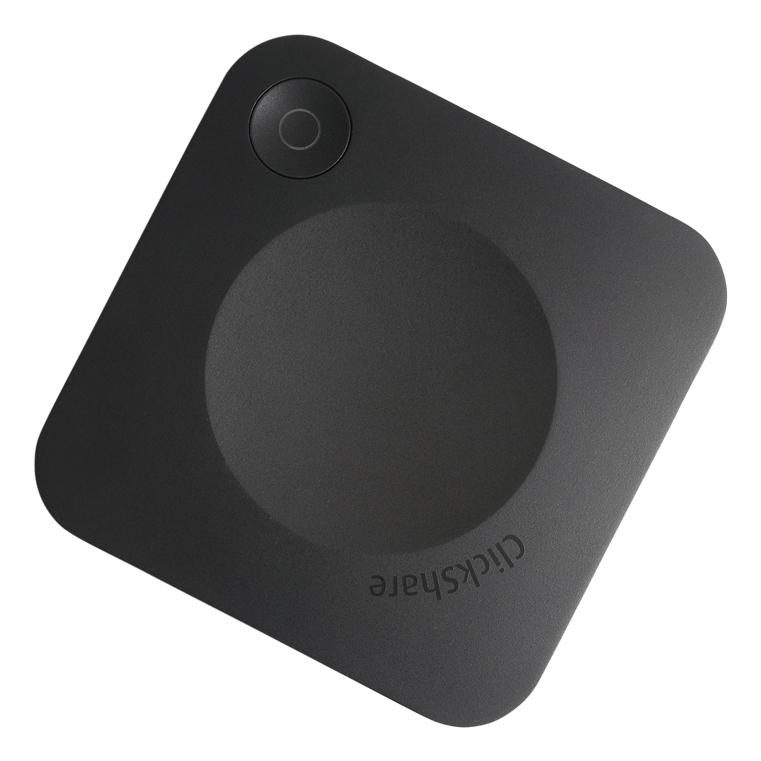

ClickShare C-5
Model ClickShare C-5Part no. R9861505CNEAN 5415334029644
52 specifications
- SpeedWi-Fi 5 (802.11ac)
- ConnectivityHDMI
- TypeDongle
- Weight900 g
- ColourBlack
- Maximum resolution (HDMI)3840 x 2160 pixels
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Connectivity
- HDMI
- Type
- Dongle
- Weight
- 900 g
- Colour
- Black
- Maximum resolution (HDMI)
- 3840 x 2160 pixels
- Brand
- Barco
- Category
- Wireless Presentation System
- Model
- ClickShare C-5
- Part numbers
- R9861505CN, R9861505EU, R9861505BNA, R9861505NA
- EAN / UPC
- 5415334029644, 5415334029729
- Also known as
- Barco ClickShare C-5 wireless presentation system HDMI Dongle
Specifications
52 specifications in 12 groups
Design
| Specification | Value |
|---|---|
| Form factor | Dongle |
| Product colour | Black |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Certification | FCC, CE |
Features
| Specification | Value |
|---|---|
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Supported video modes | 2160p |
| Supported video streaming resolutions | 4096 x 2160 |
| AirPlay mirroring | Yes |
| Maximum frame rate | 30 fps |
| Miracast | Yes |
| Number of simultaneously connected devices (max) | 32 |
| Smartphone/tablet remote support | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| On/off switch | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Frequency band | 2.4 / 5 GHz |
| Dual-band | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.1 |
| Security algorithms | 802.1x RADIUS, WPA2-PSK |
| Maximum operating distance | 30 m |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Input voltage | 110 / 220 V |
| Power consumption (max) | 24 W |
| Power consumption (typical) | 10 W |
| Suitable for use in country/location | China |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 8, Windows 8.1 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Mobile operating systems supported | Android 10.0, Android 11.0, Android 12.0, Android 9.0, iOS 12, iOS 13, iOS 14.5, iOS 15 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 135 mm |
| Depth | 135 mm |
| Height | 34 mm |
| Weight | 900 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
