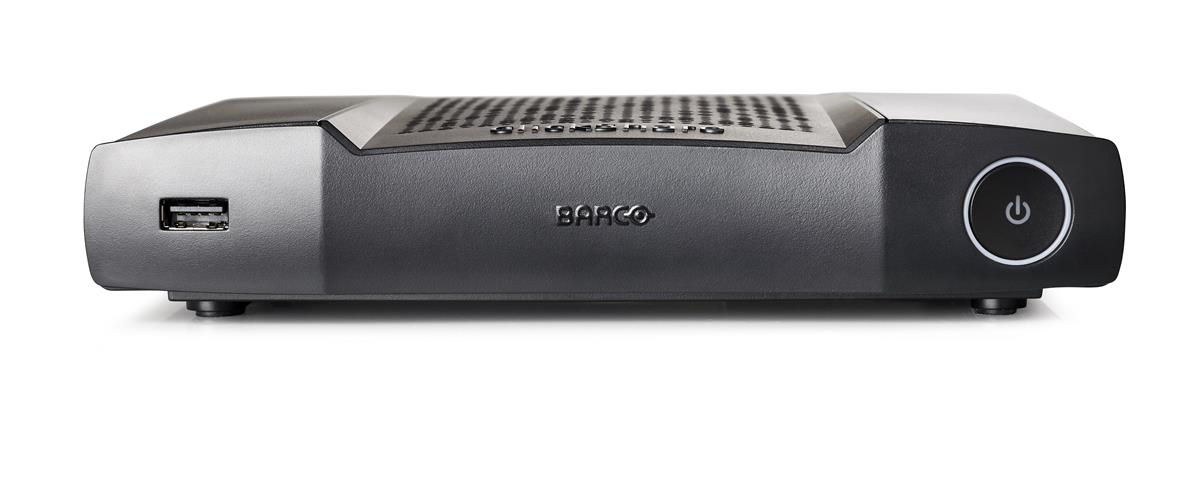

ClickShare CX-50
Model ClickShare CX-50Part no. R9861622NAB2EAN 5415334042131
48 specifications
- SpeedWi-Fi 5 (802.11ac)
- ConnectivityHDMI
- TypeDesktop
- Weight900 g
- ColourBlack
- Maximum resolution (HDMI)3840 x 2160 pixels
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Connectivity
- HDMI
- Type
- Desktop
- Weight
- 900 g
- Colour
- Black
- Maximum resolution (HDMI)
- 3840 x 2160 pixels
- Brand
- Barco
- Category
- Wireless Presentation System
- Model
- ClickShare CX-50
- Part numbers
- R9861622NAB2, R9861522CN, R9861522NA, R9861522EU
- EAN / UPC
- 5415334042131, 5415334026254, 5415334026278, 5415334026261
- Also known as
- Barco ClickShare CX-50 wireless presentation system HDMI Desktop
Specifications
48 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Features
| Specification | Value |
|---|---|
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| AirPlay mirroring | Yes |
| Google Cast | Yes |
| Miracast | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Frequency band | 2.4, 5 GHz |
| Dual-band | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.1x, IEEE 802.15.1 |
| Security algorithms | WPA2-PSK |
| Maximum operating distance | 30 m |

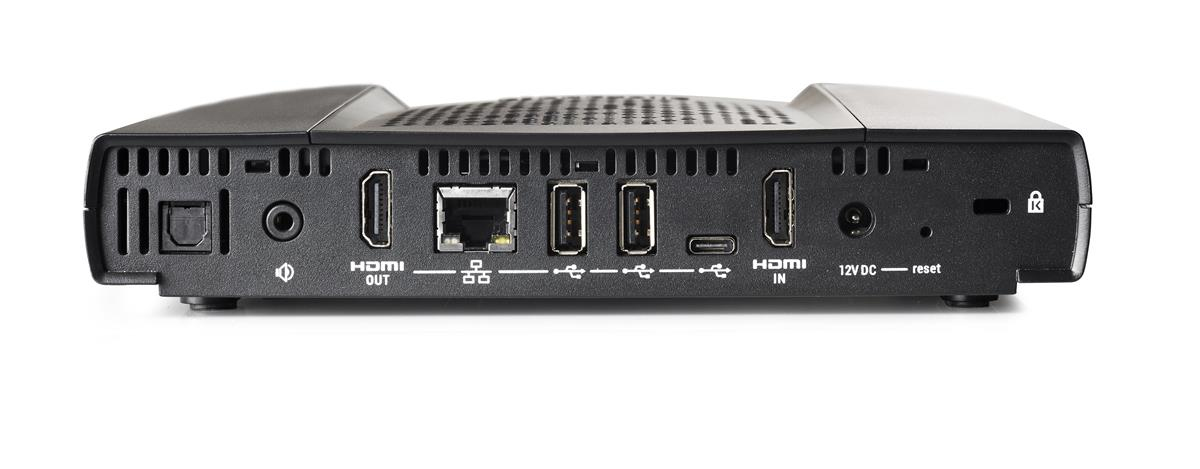

Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| HDMI input ports quantity | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| S/PDIF out port | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Input voltage | 110 - 220 V |
| Power consumption (max) | 50 W |
| Suitable for use in country/location | China |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 11.0 Big Sur |
| Mobile operating systems supported | Android 11.0, iOS 14 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 202 mm |
| Height | 39 mm |
| Weight | 900 g |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
