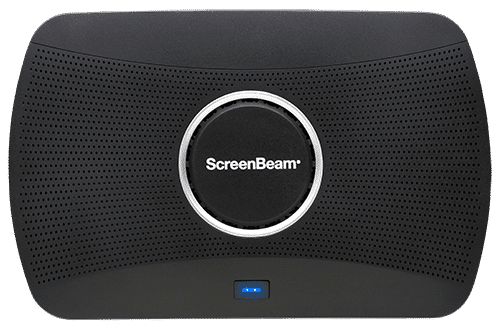

1100 Plus SBWD1100PCA
Model 1100 Plus SBWD1100PCAPart no. 0948-0151-700EAN 789286821003
49 specifications
- SpeedWi-Fi 5 (802.11ac)
- ConnectivityHDMI + USB Type-A
- TypeDesktop
- Weight431 g
- ColourBlack
- Supported graphics resolutions3840 x 2160
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Connectivity
- HDMI + USB Type-A
- Type
- Desktop
- Weight
- 431 g
- Colour
- Black
- Supported graphics resolutions
- 3840 x 2160
- Brand
- ScreenBeam
- Category
- Wireless Presentation System
- Model
- 1100 Plus SBWD1100PCA
- Part number
- 0948-0151-700
- EAN / UPC
- 789286821003, 789286821027
- Also known as
- ScreenBeam 1100 Plus is a 4K app-free wireless presentation system for in-room meeting collaboration
Specifications
49 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
| Certification | FCC, UL, CE, RoHS, C-Tick |
Features
| Specification | Value |
|---|---|
| Supported graphics resolutions | 3840 x 2160 |
| Miracast | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Security algorithms | EAP-TLS, PEAP, WPA-PSK, WPA2-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI + USB Type-A |
| HDMI input ports quantity | 1 |
| Number of HDMI outputs | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input voltage | 12 DC |
| Input current | 3 A |
| Power consumption (max) | 36 W |
| Power consumption (typical) | 8.4 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
| Mac compatibility | Yes |
| Other operating systems supported | ChromeOS |
| Mobile operating systems supported | Android, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | -20 - 85% |
| Storage temperature (T-T) | 20 - 80 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 129 mm |
| Height | 36 mm |
| Weight | 431 g |
| Package width | 178 mm |
| Package depth | 287 mm |
| Package height | 83 mm |
| Package weight | 1.13 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | HDMI |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Master (outer) case gross weight | 18.1 kg |
| Master (outer) case height | 312 mm |
| Master (outer) case length | 544 mm |
| Master (outer) case width | 452 mm |
| Products per master (outer) case | 15 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UL |
