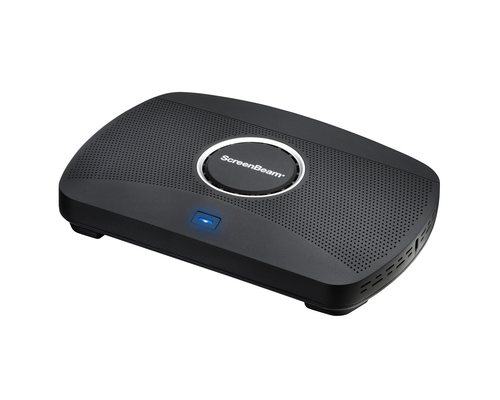

1100P Wireless Presentation System BYOM inc 3 Year Warranty
Model 1100P Wireless Presentation System BYOM inc 3 Year WarrantyPart no. SBWD1100PEUEAN 789286820952
42 specifications
- SpeedWi-Fi 5 (802.11ac)
- ConnectivityHDMI + USB Type-A
- TypeDesktop
- Weight453.5 g
- ColourBlack
- Supported graphics resolutions3840 x 2160
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Connectivity
- HDMI + USB Type-A
- Type
- Desktop
- Weight
- 453.5 g
- Colour
- Black
- Supported graphics resolutions
- 3840 x 2160
- Brand
- ScreenBeam
- Category
- Wireless Presentation System
- Model
- 1100P Wireless Presentation System BYOM inc 3 Year Warranty
- Part number
- SBWD1100PEU
- EAN / UPC
- 789286820952, 850015351044, 850015351204
- Also known as
- ScreenBeam 1100P BYOM inc 3 Year Warranty wireless presentation system HDMI + USB Type-A Desktop
Specifications
42 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
| Certification | FCC, UL, CE, RoHS, C-Tick |
Features
| Specification | Value |
|---|---|
| Supported graphics resolutions | 3840 x 2160 |
| Maximum frame rate | 30 fps |
| Miracast | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Security algorithms | EAP-TLS, PEAP, WPA-PSK, WPA2-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI + USB Type-A |
| HDMI input ports quantity | 1 |
| Number of HDMI outputs | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input voltage | 12 DC |
| Input current | 3 A |
| Power consumption (max) | 36 W |
| Power consumption (typical) | 8.4 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Other operating systems supported | ChromeOS |
| Mobile operating systems supported | Android, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | -20 - 85% |
| Storage temperature (T-T) | 20 - 80 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 144 mm |
| Height | 37.5 mm |
| Weight | 453.5 g |
| Package width | 177.8 mm |
| Package depth | 287 mm |
| Package height | 82.5 mm |
| Package weight | 1.13 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
