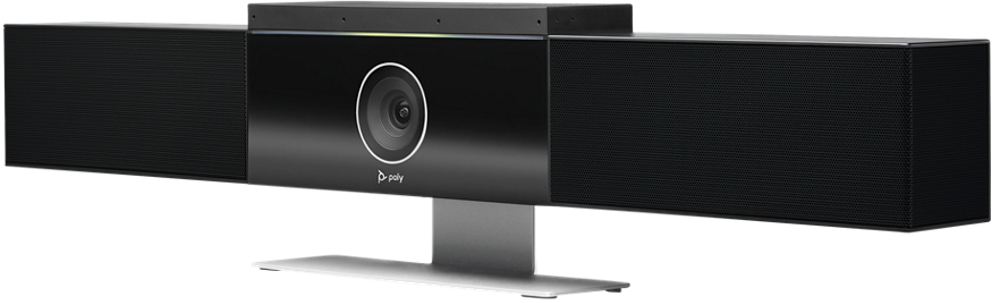

1100 Plus + POLY STUDIO Bundle
Model 1100 Plus + POLY STUDIO BundlePart no. 10354542
37 specifications
- ConnectivityHDMI
- TypeDesktop
- ColourBlack, Silver
- Maximum resolution (HDMI)3840 x 2160 pixels
- Wi-Fi standardsWi-Fi 5 (802.11ac)
- Power source typeDC
Overview
- Connectivity
- HDMI
- Type
- Desktop
- Colour
- Black, Silver
- Maximum resolution (HDMI)
- 3840 x 2160 pixels
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- Power source type
- DC
- Brand
- ScreenBeam
- Category
- Wireless Presentation System
- Model
- 1100 Plus + POLY STUDIO Bundle
- Part number
- 10354542
- Also known as
- ScreenBeam 1100 Plus + POLY STUDIO Bundle wireless presentation system HDMI Desktop
Specifications
37 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black, Silver |
| LED indicators | Yes |
| Certification | FCC, UL, IC ISED, CE RED, RoHS, C-Tick |
Features
| Specification | Value |
|---|---|
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Miracast | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Dual-band | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Security algorithms | 128-bit AES, EAP-TLS, MSCHAPv2, PEAP, TKIP, WPA-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| HDMI input ports quantity | 1 |
| Number of HDMI outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input voltage | 12 V |
| Input current | 3 A |
| Power consumption (max) | 36 W |
| Power consumption (typical) | 8.4 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
| Mobile operating systems supported | Android 4.2, iOS 11.0 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 85 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 144 mm |
| Height | 37.5 mm |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
