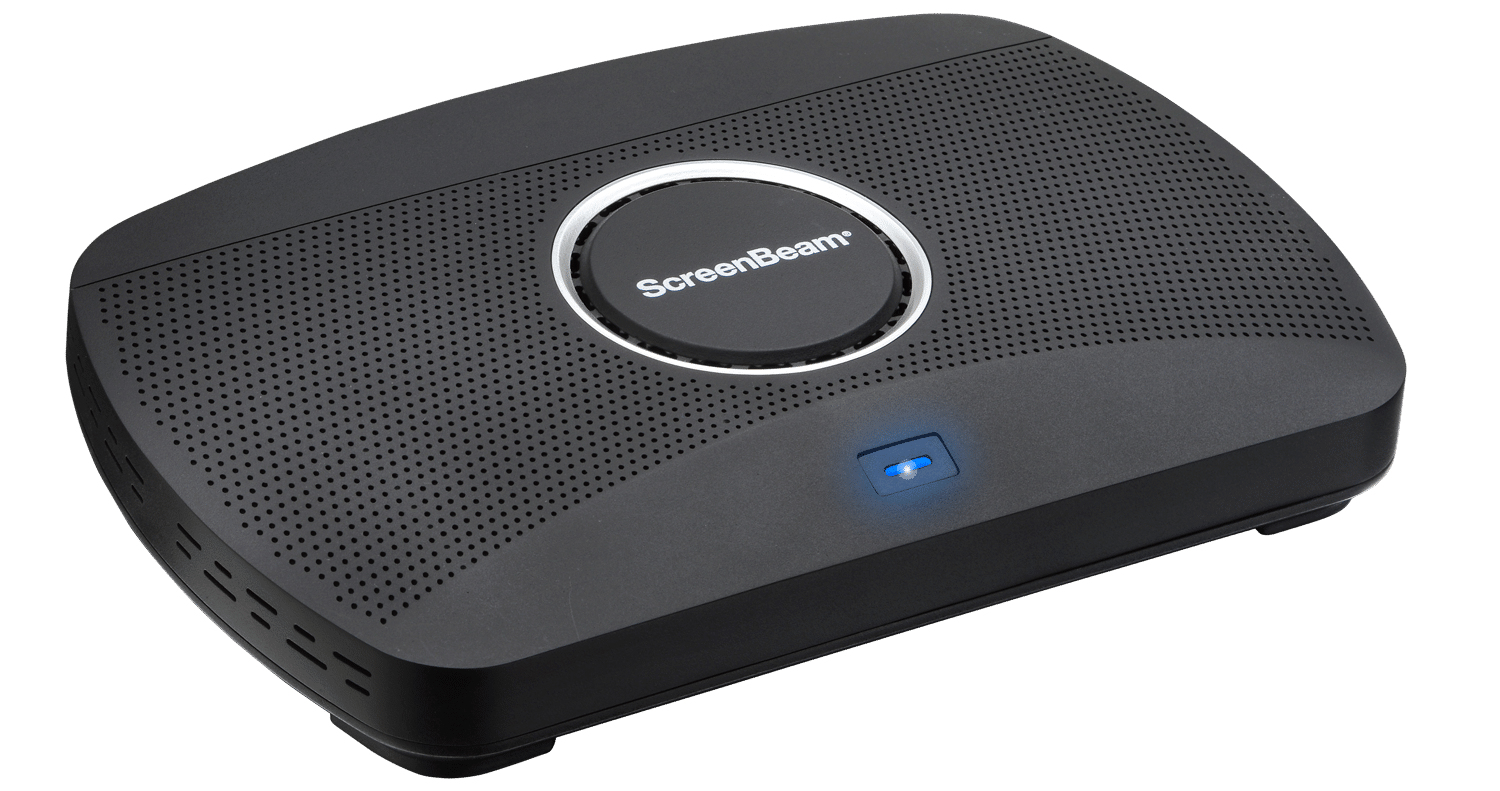

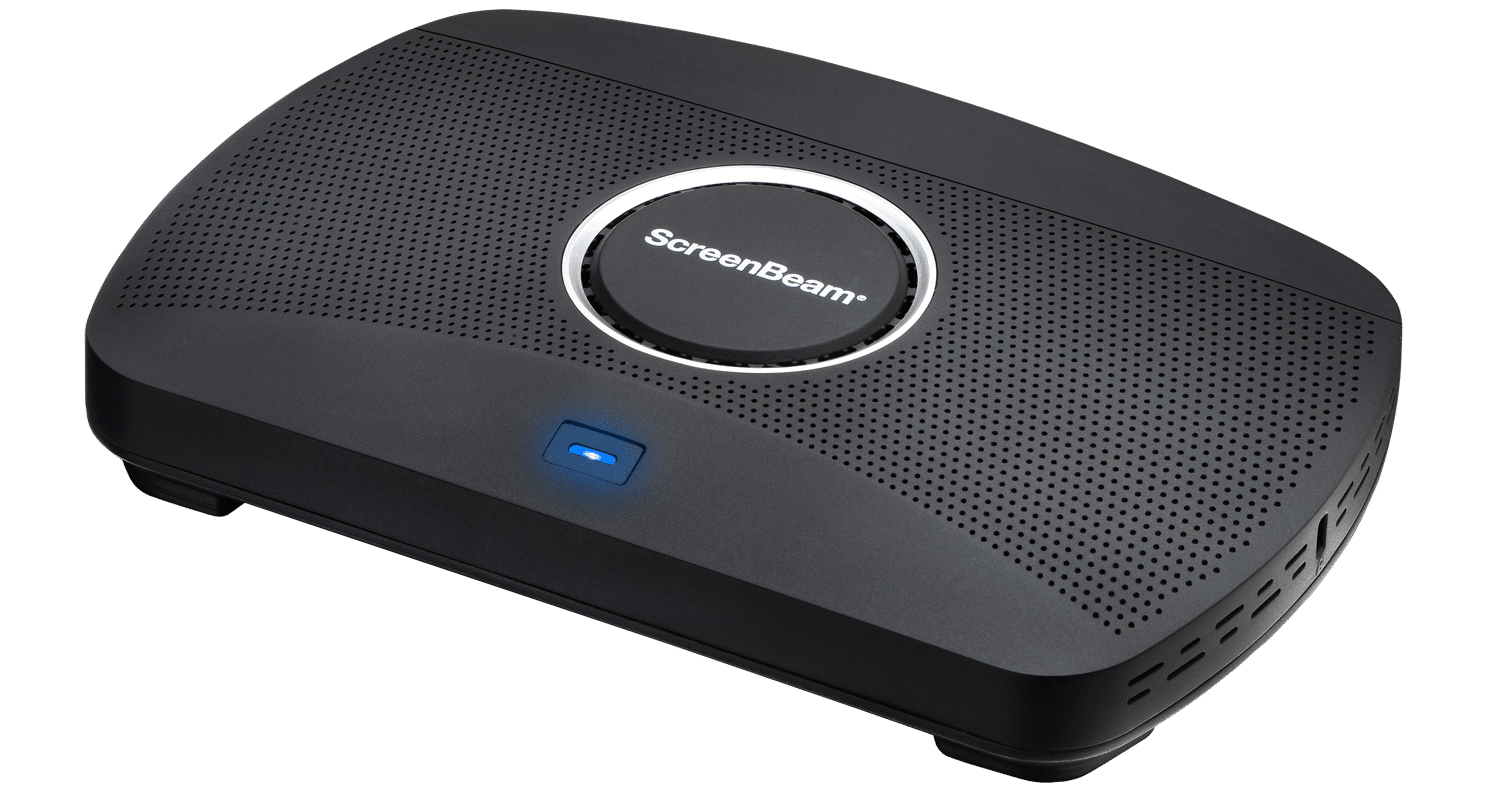

1100 Plus
Model 1100 PlusPart no. 0948-0151-800EAN 789286821010
34 specifications
- SpeedWi-Fi 5 (802.11ac)
- ConnectivityHDMI
- TypeDesktop
- ColourBlack
- Maximum resolution (HDMI)3840 x 2160 pixels
- Power source typeDC
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Connectivity
- HDMI
- Type
- Desktop
- Colour
- Black
- Maximum resolution (HDMI)
- 3840 x 2160 pixels
- Power source type
- DC
- Brand
- ScreenBeam
- Category
- Wireless Presentation System
- Model
- 1100 Plus
- Part number
- 0948-0151-800
- EAN / UPC
- 789286821010
- Also known as
- ScreenBeam 1100 Plus wireless presentation system HDMI Desktop
Specifications
34 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
Features
| Specification | Value |
|---|---|
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Miracast | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Security algorithms | EAP-TLS, MSCHAPv2, WPA-PSK, WPA2-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| HDMI input ports quantity | 1 |
| Number of HDMI outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Headphone outputs | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input voltage | 12 V |
| Input current | 3 A |
| Power consumption (max) | 36 W |
| Power consumption (typical) | 8.4 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Mobile operating systems supported | Android, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 85 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 144 mm |
| Height | 37.5 mm |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
