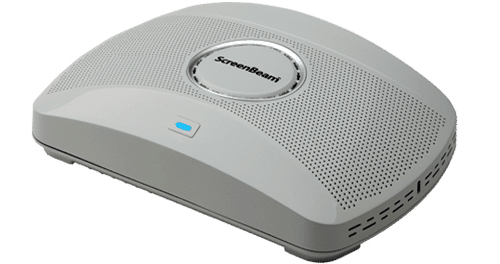

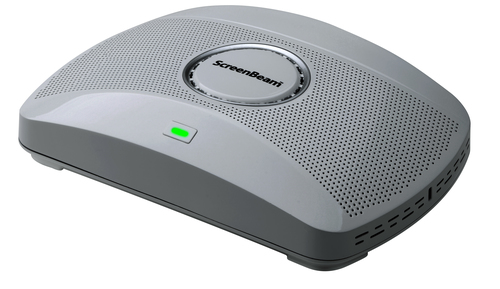

1000 EDU
Model 1000 EDUPart no. 0948-0147-401EAN 789286820778
46 specifications
- SpeedWi-Fi 5 (802.11ac)
- ConnectivityHDMI + VGA (D-Sub)
- TypeDesktop
- Weight1.13 kg
- ColourWhite
- Supported graphics resolutions3840 x 2160
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Connectivity
- HDMI + VGA (D-Sub)
- Type
- Desktop
- Weight
- 1.13 kg
- Colour
- White
- Supported graphics resolutions
- 3840 x 2160
- Brand
- ScreenBeam
- Category
- Wireless Presentation System
- Model
- 1000 EDU
- Part number
- 0948-0147-401
- EAN / UPC
- 789286820778
- Also known as
- ScreenBeam 1000 EDU wireless presentation system HDMI + VGA (D-Sub) Desktop
Specifications
46 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | White |
| Certification | FCC, UL, CE, RED, RoHS |
Features
| Specification | Value |
|---|---|
| Supported graphics resolutions | 3840 x 2160 |
| Miracast | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Security algorithms | EAP-TLS, PEAP, WPA-PSK, WPA2-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI + VGA (D-Sub) |
| Number of HDMI outputs | 1 |
| VGA (D-Sub) output ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Input voltage | 12 V |
| Input current | 3 A |
| Power consumption (max) | 36 W |
| Power consumption (typical) | 8.4 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Other operating systems supported | ChromeOS |
| Mobile operating systems supported | Android 4.2, iOS 11.0, iOS 11.4 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 85 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 144 mm |
| Height | 50.5 mm |
| Weight | 1.13 kg |
| Package width | 177.8 mm |
| Package depth | 287 mm |
| Package height | 82.5 mm |
| Package weight | 1.13 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
