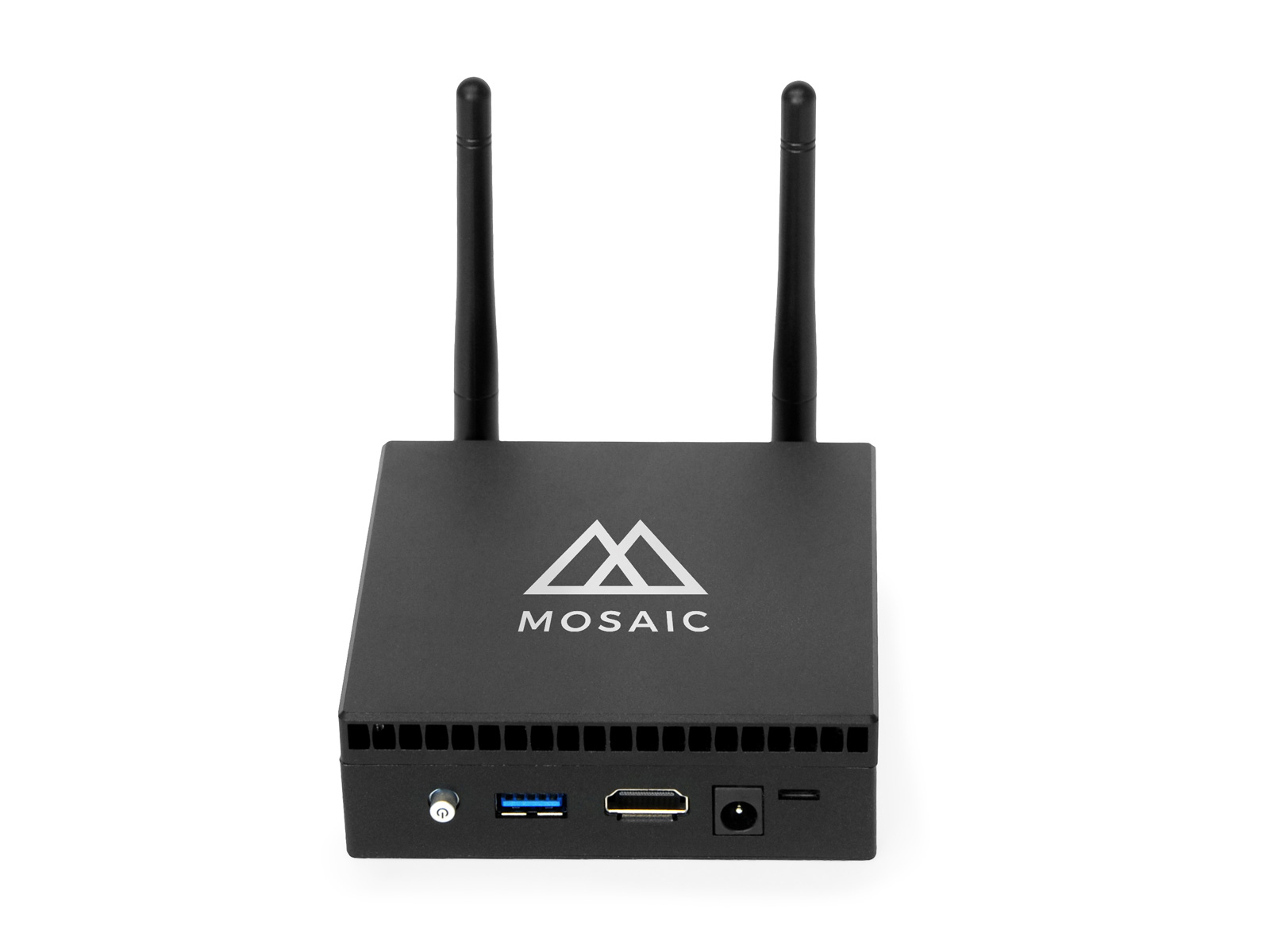

Mosaic Connect Box
Model Mosaic Connect BoxPart no. 100014854EAN 4719622297427
28 specifications
- ProcessorIntel Atom®
- ConnectivityHDMI + VGA (D-Sub)
- TypeDesktop
- Weight700 g
- ColourBlack
- On/off switchYes
Overview
- Processor
- Intel Atom®
- Connectivity
- HDMI + VGA (D-Sub)
- Type
- Desktop
- Weight
- 700 g
- Colour
- Black
- On/off switch
- Yes
- Brand
- NEC
- Category
- Wireless Presentation System
- Model
- Mosaic Connect Box
- Part number
- 100014854
- EAN / UPC
- 4719622297427
- Also known as
- NEC Mosaic Connect Box wireless presentation system HDMI + VGA (D-Sub) Desktop
Specifications
28 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
| Certification | CE FCC class B |
Features
| Specification | Value |
|---|---|
| Processor family | Intel Atom® |
| Processor model | x5-Z8350 |
| Processor frequency | 1.44 MHz |
| Processor cores | 4 |
| Storage media | eMMC |
Management features
| Specification | Value |
|---|---|
| On/off switch | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI + VGA (D-Sub) |
| VGA (D-Sub) output ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 8.3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 93 mm |
| Depth | 97 mm |
| Height | 32 mm |
| Weight | 700 g |
| Package width | 248 mm |
| Package depth | 212 mm |
| Package height | 59 mm |
| Package weight | 1 kg |
