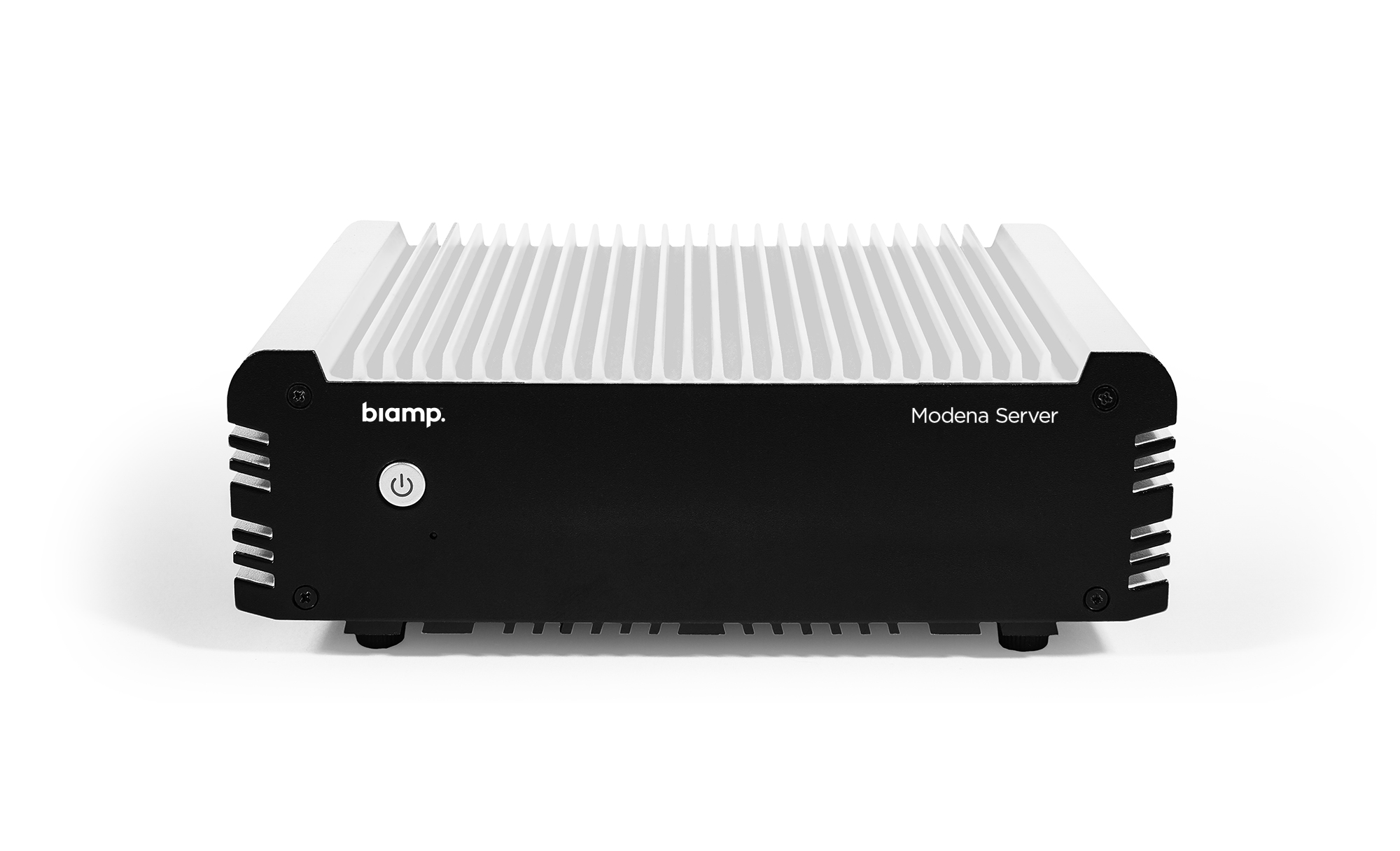

Modena Server
Model Modena ServerPart no. 912.1738.900EAN 810039101803
29 specifications
- TypeDesktop
- Weight1.1 kg
- ColourBlack, White
- Processor manufacturerIntel
- Ethernet LANYes
- Ethernet LAN (RJ-45) ports1
Overview
- Type
- Desktop
- Weight
- 1.1 kg
- Colour
- Black, White
- Processor manufacturer
- Intel
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Biamp
- Category
- Wireless Presentation System
- Model
- Modena Server
- Part number
- 912.1738.900
- EAN / UPC
- 810039101803
- Also known as
- Biamp Modena ™ Server Wireless Presentation Hub
Specifications
29 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black, White |
Features
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Maximum resolution (HDMI) | 1920 x 1080 pixels |
| Supported video modes | 1080p |
| Maximum frame rate | 30 fps |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |

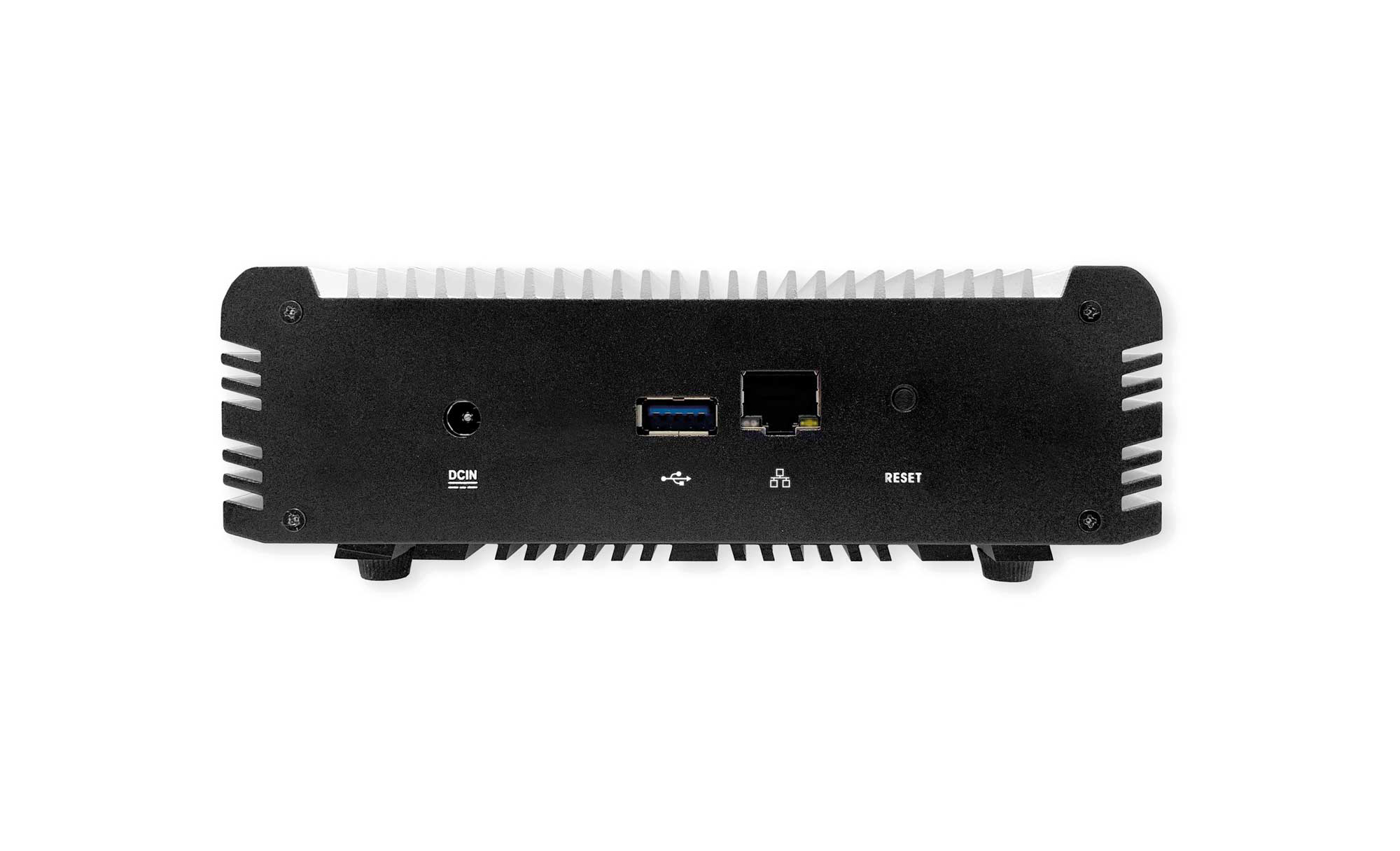

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 132 mm |
| Height | 51 mm |
| Weight | 1.1 kg |
| Package width | 260.4 mm |
| Package depth | 209.6 mm |
| Package height | 95.3 mm |
| Package weight | 1.81 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Italy |
| Export Control Classification Number (ECCN) | 5A992 |
| Harmonized System (HS) code | 8517620050 |
