WDC20 wireless presentation system HDMI Desktop
Model WDC20Part no. 5J.JKJ28.P30
25 specifications
- SpeedWi-Fi 5 (802.11ac)
- ConnectivityHDMI
- TypeDesktop
- ColourBlack
- Antenna typeExternal
- Power source typeDC
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Connectivity
- HDMI
- Type
- Desktop
- Colour
- Black
- Antenna type
- External
- Power source type
- DC
- Brand
- BenQ
- Category
- Wireless Presentation System
- Model
- WDC20
- Part number
- 5J.JKJ28.P30
- Also known as
- BenQ WDC20 wireless presentation system HDMI Desktop
Specifications
25 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
| LED indicators | Yes |
Features
| Specification | Value |
|---|---|
| Supported graphics resolutions | 720 x 480, 720 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antennas quantity | 4 |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi data rate (max) | 1167 Mbit/s |
| Frequency band | 2.4 / 5 GHz |
| Security algorithms | 128-bit AES, WPA2 |

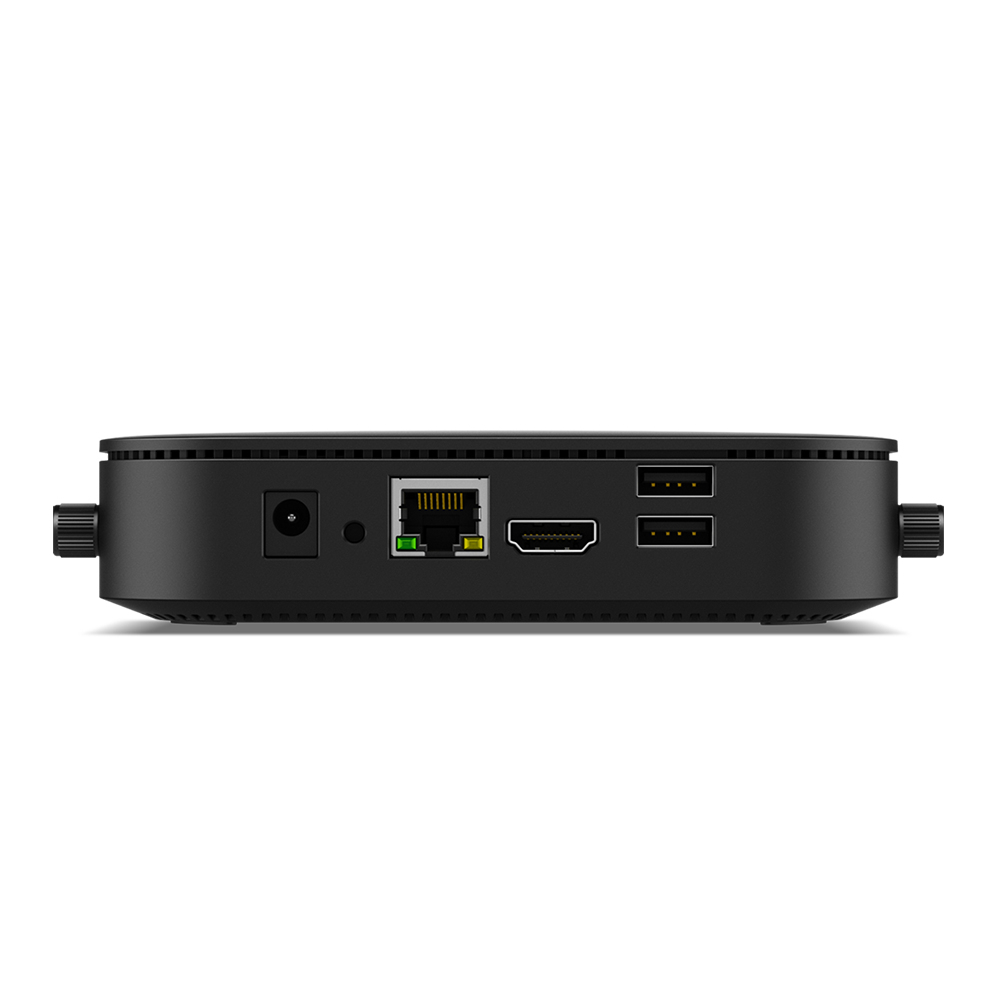

Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 2 A |
| Power consumption (max) | 24 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | -10 - 60% |
| Storage temperature (T-T) | 10 - 80 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI, USB |
| Quick start guide | Yes |
