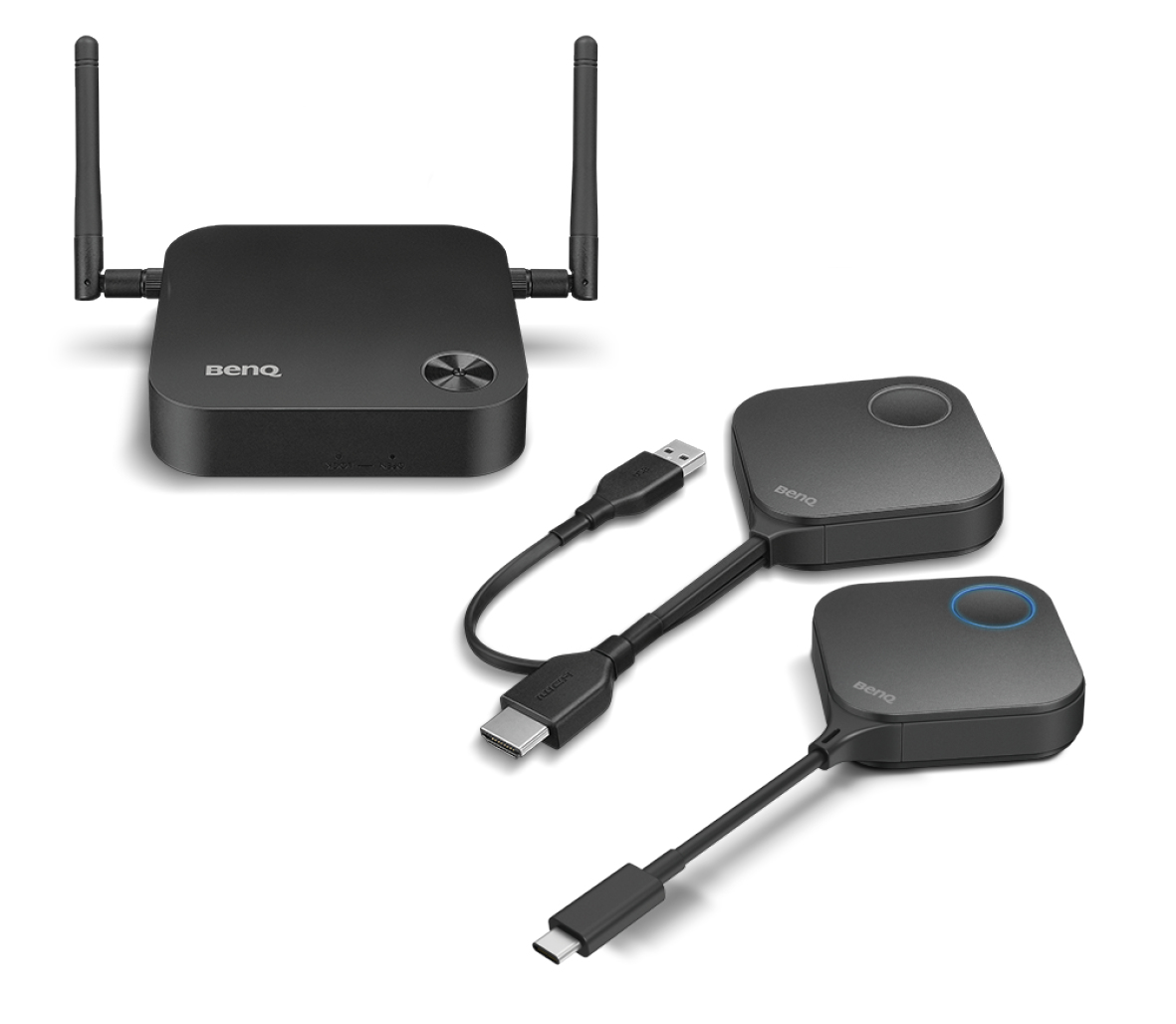

WDC10HC wireless presentation system HDMI Desktop
Model WDC10HCPart no. 9H.JLD78.N6EEAN 4718755083945
47 specifications
- SpeedWi-Fi 5 (802.11ac)
- ConnectivityHDMI
- TypeDesktop
- Weight1.24 kg
- ColourBlack
- Supported video modes720p, 1080p
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Connectivity
- HDMI
- Type
- Desktop
- Weight
- 1.24 kg
- Colour
- Black
- Supported video modes
- 720p, 1080p
- Brand
- BenQ
- Category
- Wireless Presentation System
- Model
- WDC10HC
- Part number
- 9H.JLD78.N6E
- EAN / UPC
- 4718755083945
- Also known as
- BenQ WDC10HC wireless presentation system HDMI Desktop
Specifications
47 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
| LED indicators | Yes |
Features
| Specification | Value |
|---|---|
| Supported graphics resolutions | 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Maximum frame rate | 60 fps |
| Number of simultaneously connected devices (max) | 16 |
| Security updates end date | 31/12/2024 |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antenna gain level (max) | 2 dBi |
| Antennas quantity | 2 |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi data rate (max) | 867 Mbit/s |
| Frequency band | 5 GHz |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Security algorithms | 128-bit AES, WPA2, WPA2-PSK |
| Maximum operating distance | 8 m |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input current | 1.5 A |
| Output voltage | 5 V |
| Power consumption (max) | 5 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.24 kg |
| Package width | 390 mm |
| Package depth | 485 mm |
| Package height | 205 mm |
| Package weight | 6.28 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | HDMI, USB |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Harmonized System (HS) code | 8517620000 |
| Products per pallet | 144 pc(s) |
| Quantity per pack | 3 pc(s) |
