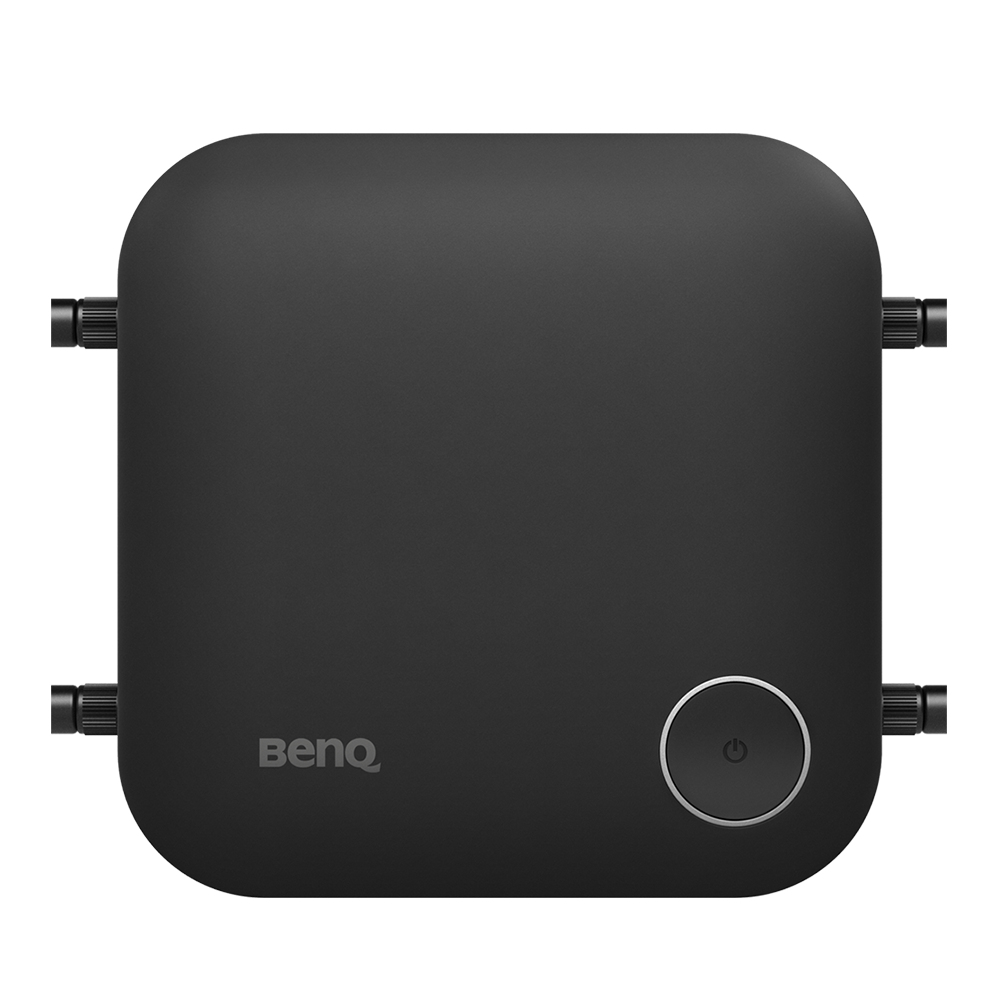

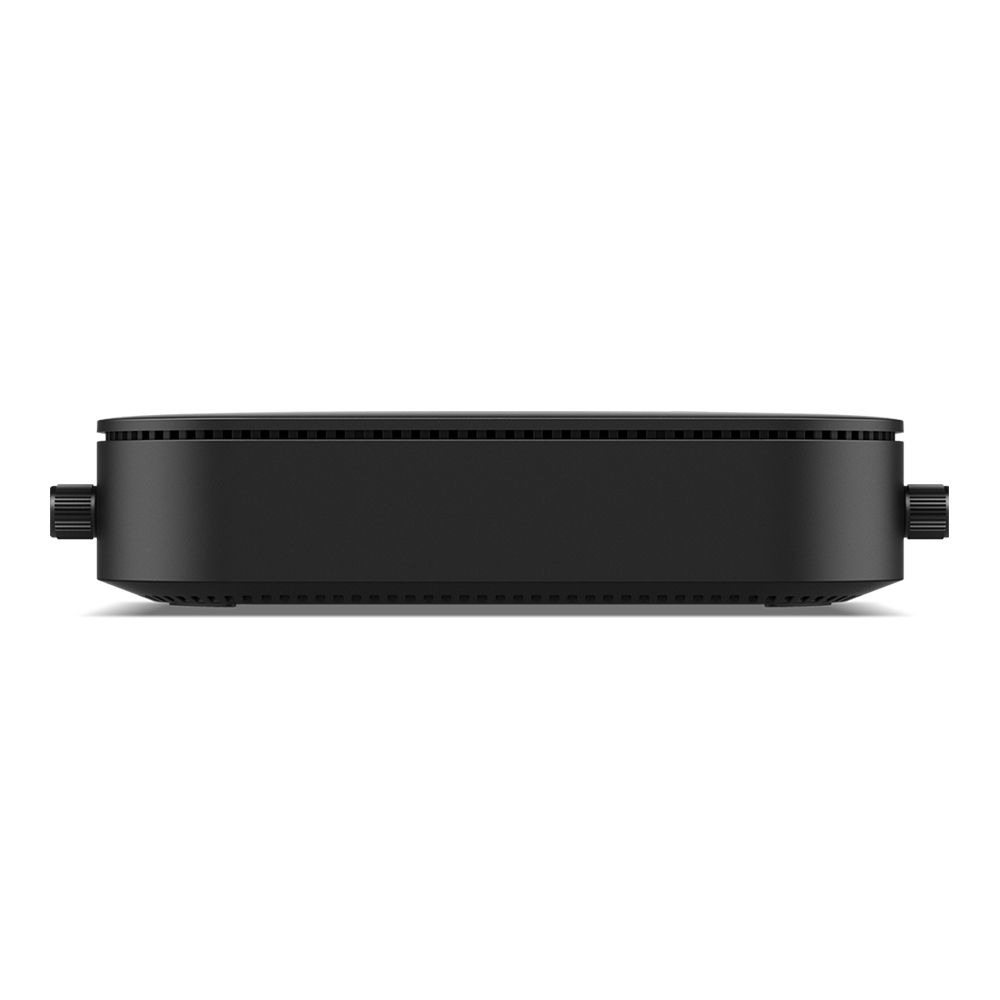

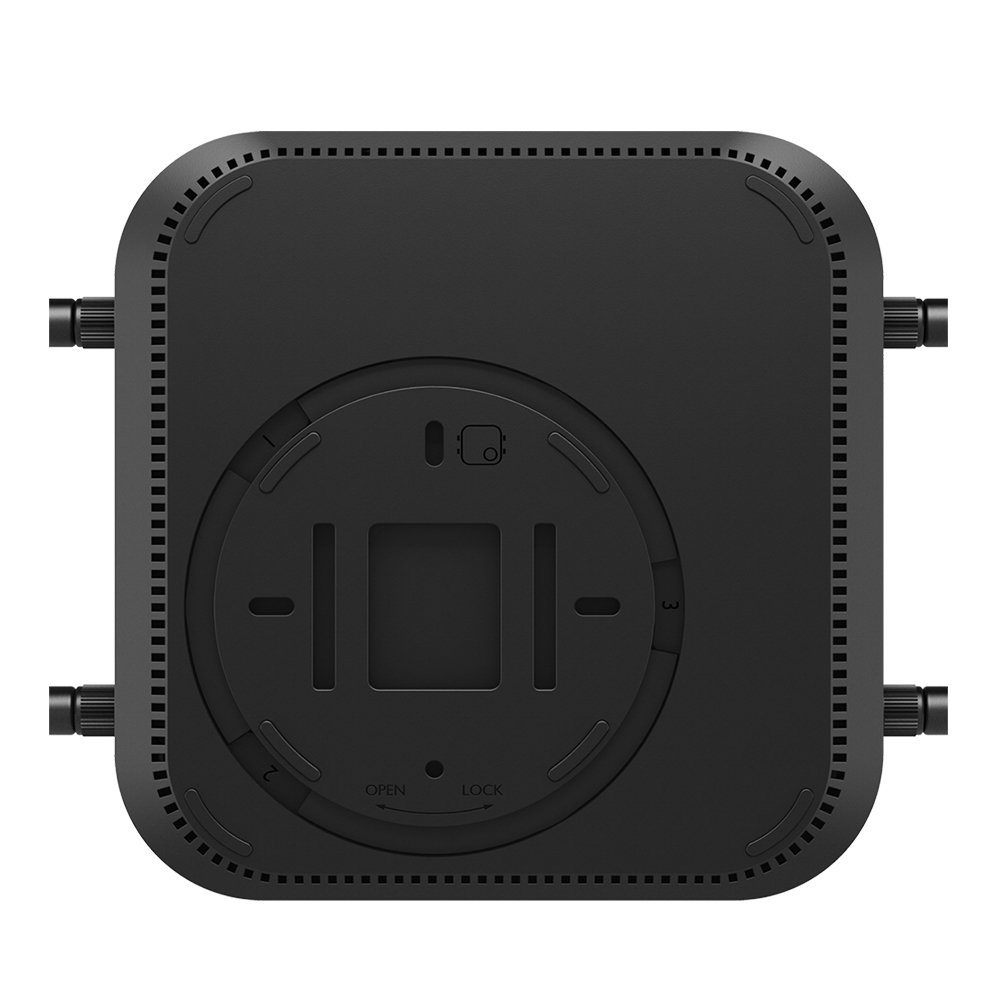

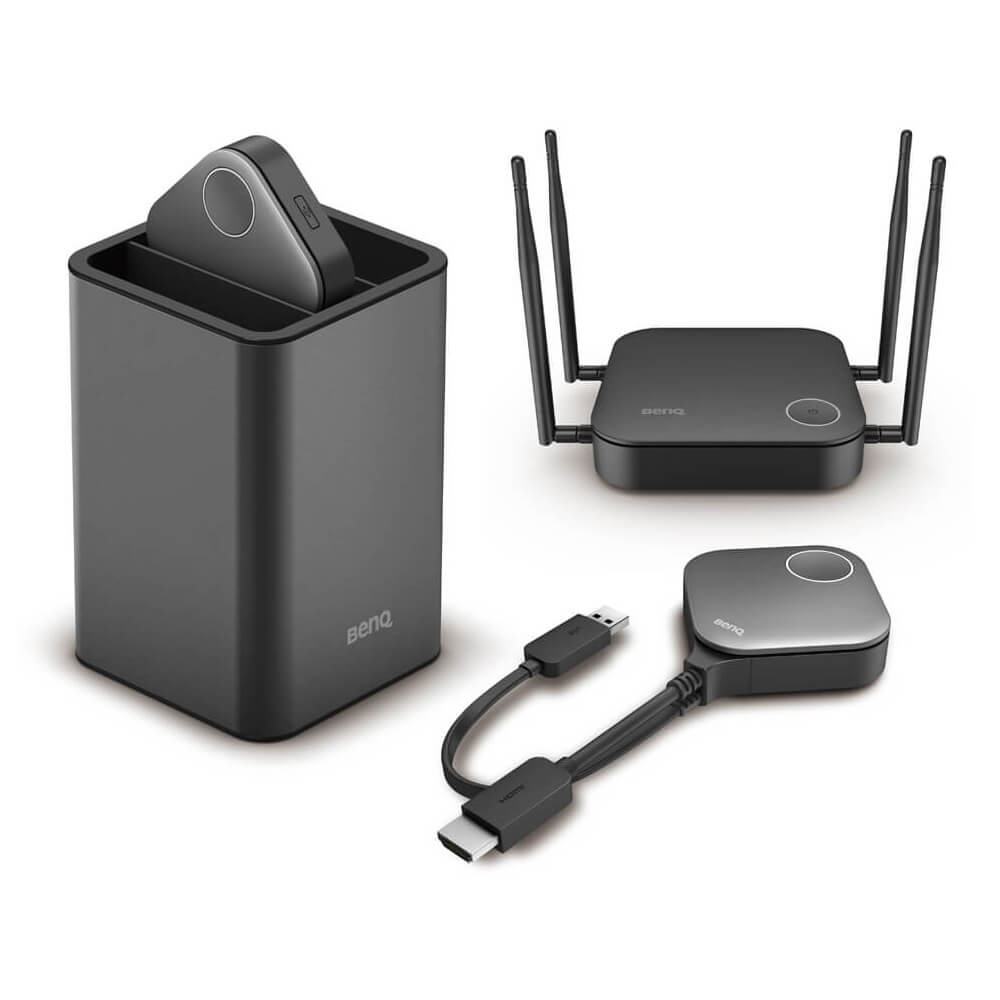

InstaShow WDC20
Model InstaShow WDC20Part no. 9H.JKJ78.H4E
37 specifications
- SpeedWi-Fi 5 (802.11ac)
- ConnectivityHDMI
- TypeDesktop
- Weight330 g
- ColourBlack
- Maximum frame rate60 fps
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Connectivity
- HDMI
- Type
- Desktop
- Weight
- 330 g
- Colour
- Black
- Maximum frame rate
- 60 fps
- Brand
- BenQ
- Category
- Wireless Presentation System
- Model
- InstaShow WDC20
- Part numbers
- 9H.JKJ78.H4E, 9H.JKJ78.H4P
- Also known as
- BenQ InstaShow WDC20 wireless presentation system HDMI Desktop
Specifications
37 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
| LED indicators | Yes |
Features
| Specification | Value |
|---|---|
| Supported graphics resolutions | 720 x 480, 720 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes | 480p, 525i, 540p, 576p, 625i, 720i, 720p, 768p, 960p, 1024p, 1035i, 1080i, 1080p |
| Maximum frame rate | 60 fps |
| Number of users | 32 user(s) |

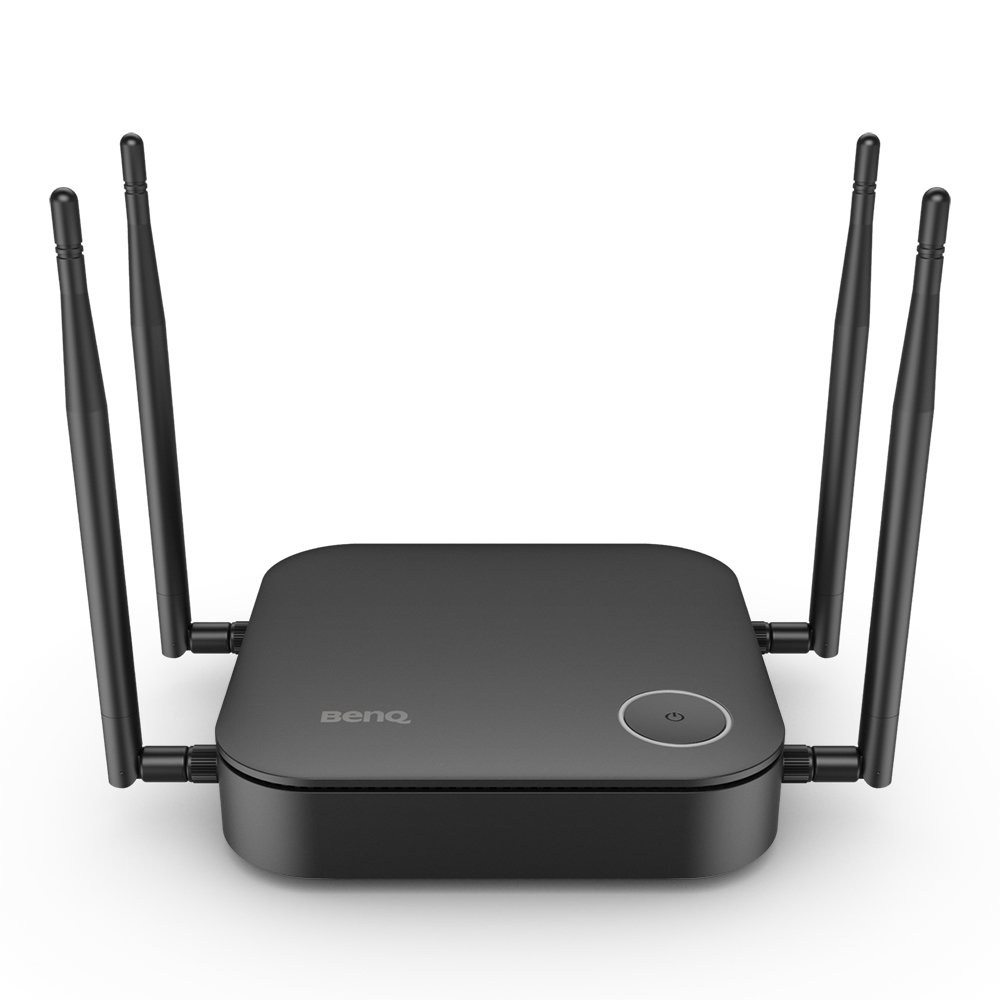

Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antennas quantity | 4 |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi data rate (max) | 1167 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Dual-band | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11n |
| Security algorithms | 128-bit AES, WPA2, WPA2-PSK |
| Maximum operating distance | 15 m |

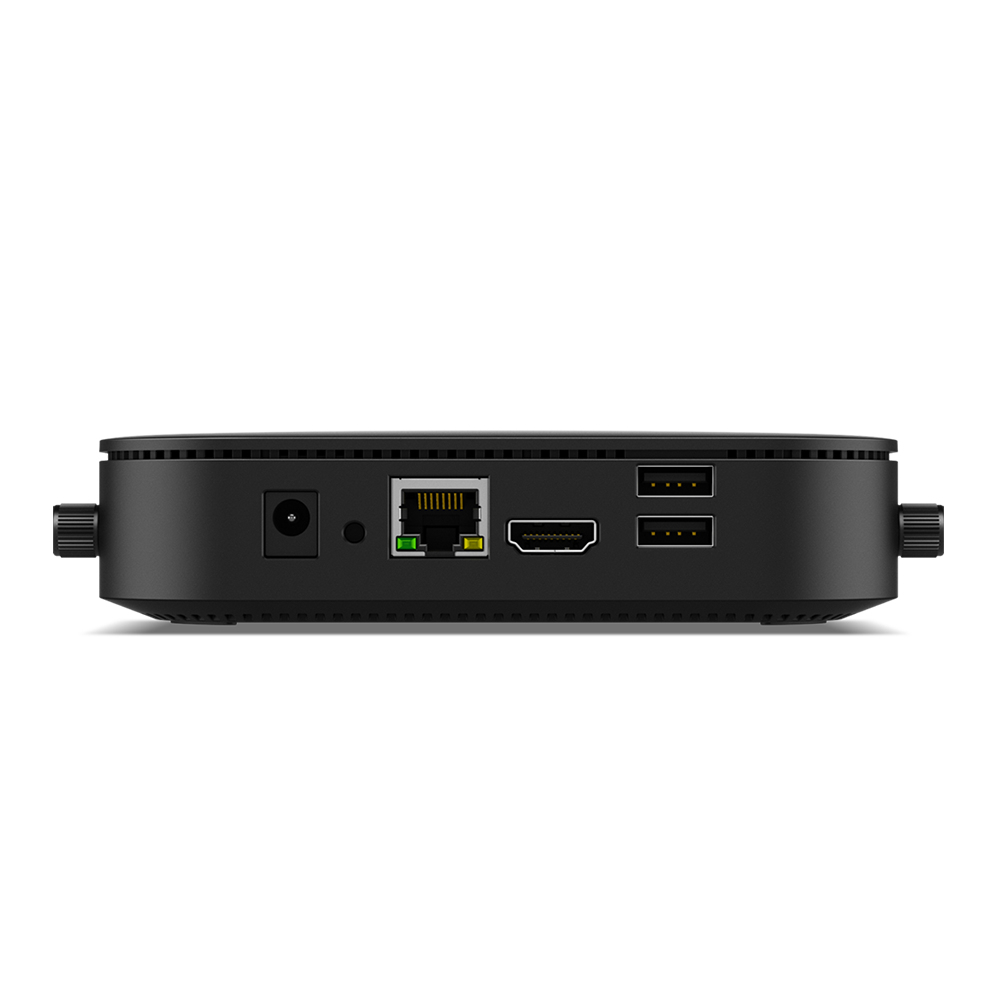

Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 2 A |
| Power consumption (max) | 24 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 330 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | HDMI, USB |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
