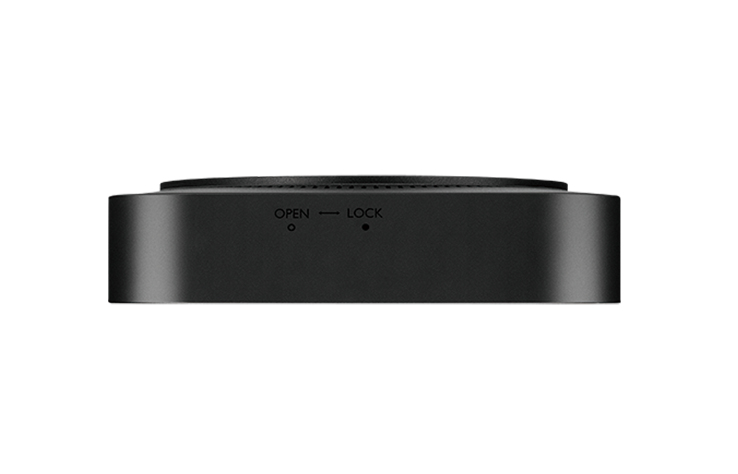

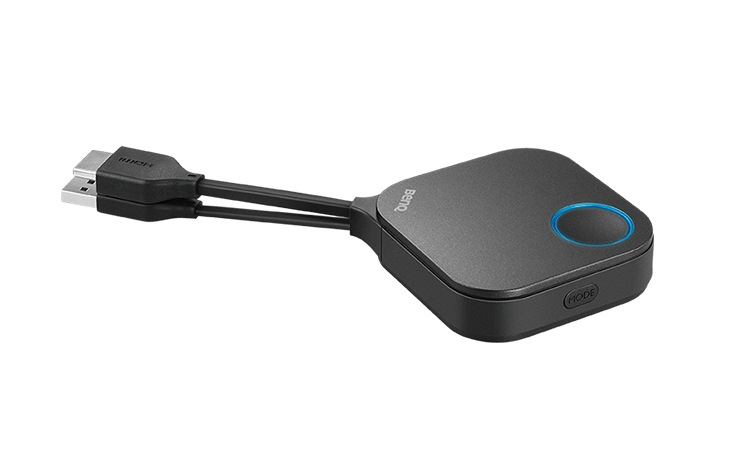

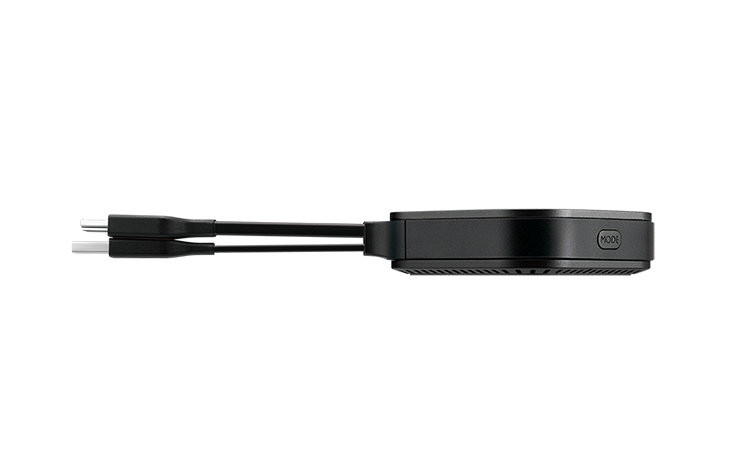

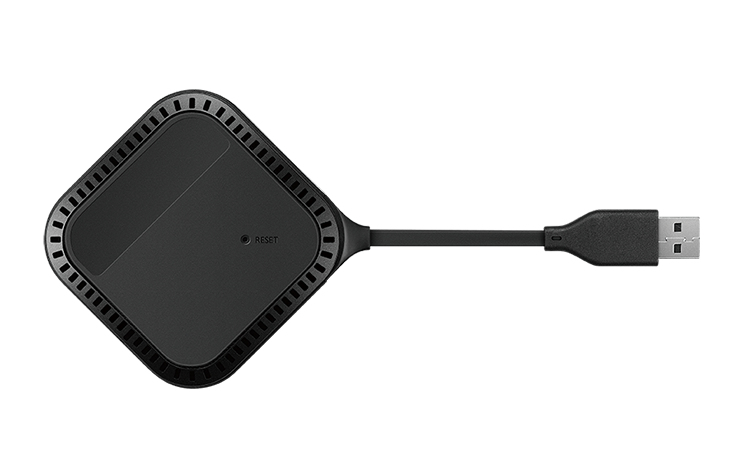

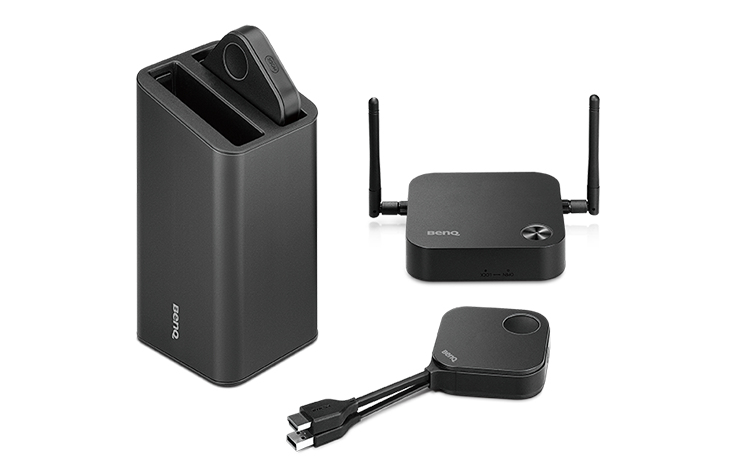

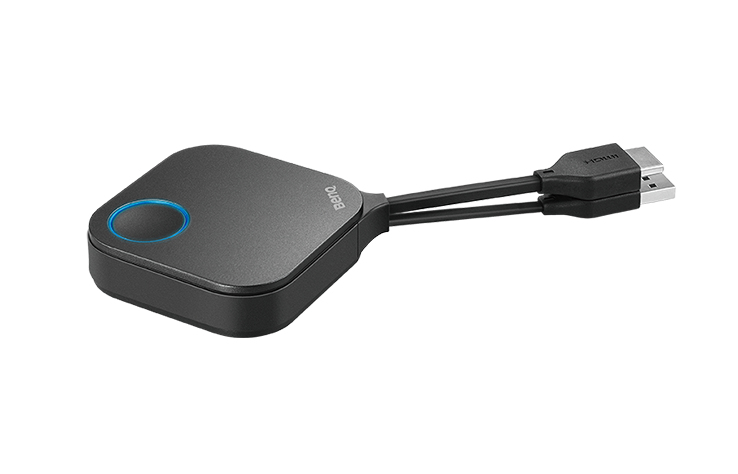

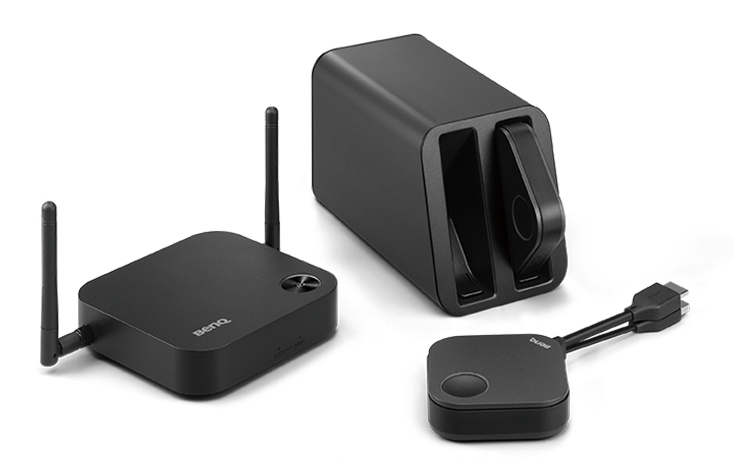

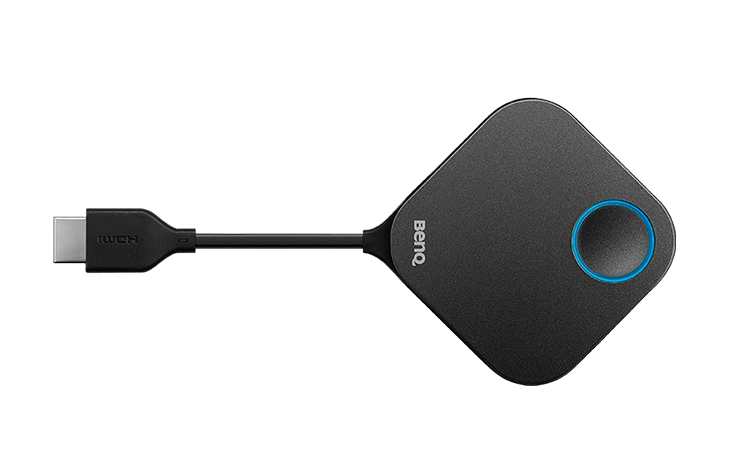

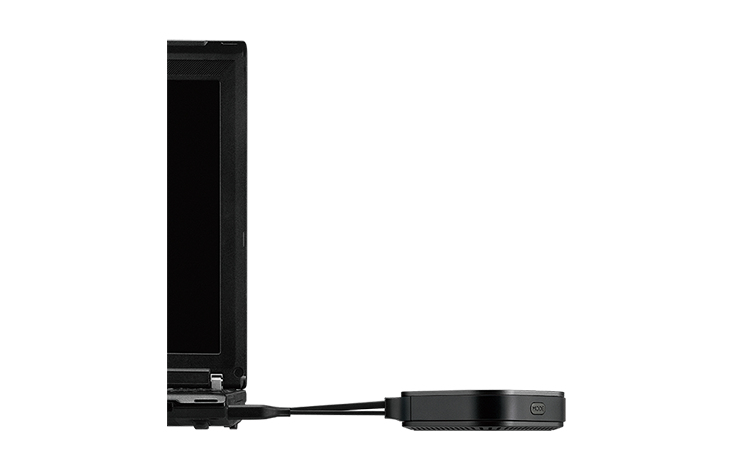

InstaShow WDC10
Model InstaShow WDC10Part no. 9H.JF878.N4EEAN 4718755072420
31 specifications
- ConnectivityHDMI
- ColourBlack
- Maximum resolution (HDMI)1920 x 1080 pixels
- Antennas quantity2
- Wi-Fi standardsWi-Fi 5 (802.11ac)
- Power source typeUSB
Overview
- Connectivity
- HDMI
- Colour
- Black
- Maximum resolution (HDMI)
- 1920 x 1080 pixels
- Antennas quantity
- 2
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- Power source type
- USB
- Brand
- BenQ
- Category
- Wireless Presentation System
- Model
- InstaShow WDC10
- Part numbers
- 9H.JF878.N4E, 9H.JF878.N4L, 9H.JF878.N5E, 9H.JF878.N4P, 9H.JF878.N3E, 9H.JF878.N3A
- EAN / UPC
- 4718755072420, 4718755063053, 840046039004
- Also known as
- BenQ InstaShow WDC10 wireless presentation system HDMI
Specifications
31 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Features
| Specification | Value |
|---|---|
| Maximum resolution (HDMI) | 1920 x 1080 pixels |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1440 x 1050, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Streaming capability | Yes |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 2 |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Frequency band | 5 GHz |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Security algorithms | 128-bit AES, WPA2-PSK |
| Maximum operating distance | 8 m |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| Number of HDMI outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Input voltage | 5 V |
| Power consumption (max) | 5 W |
| Power consumption (standby) | 2 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | HDMI, USB |
| Quick start guide | Yes |
