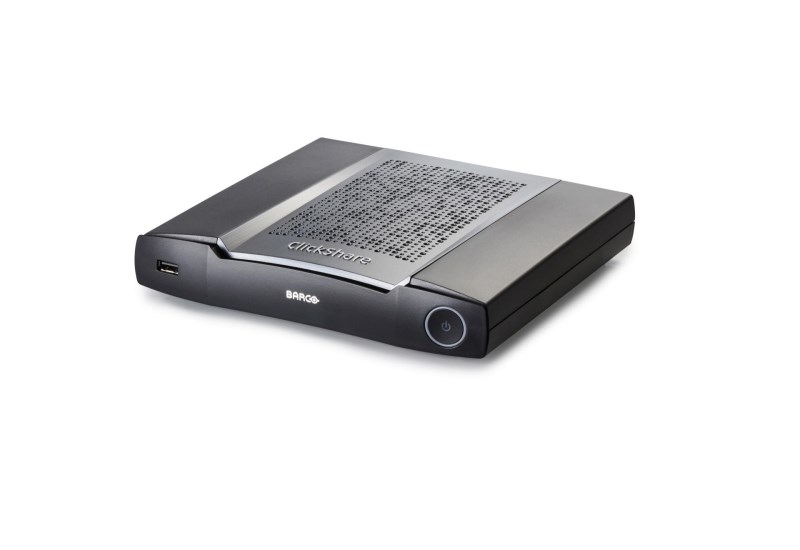

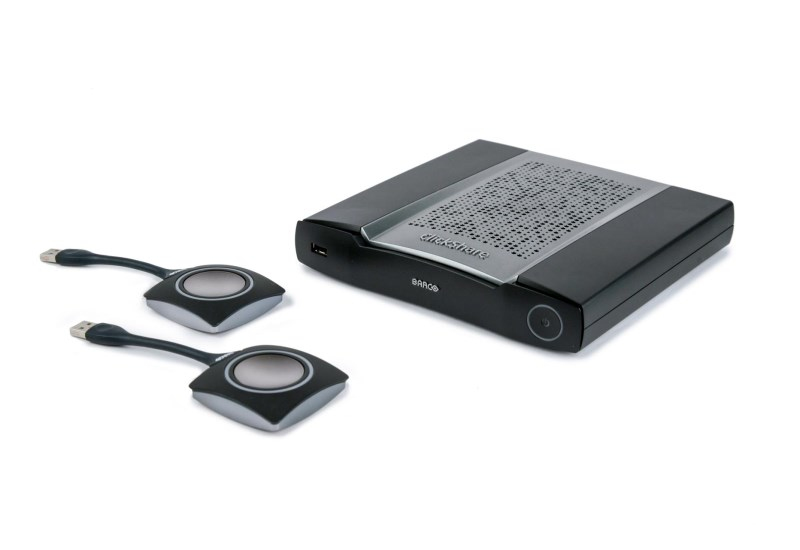

R9861521EU wireless presentation system HDMI Desktop
Model R9861521EUEAN 4005922716202
41 specifications
- ConnectivityHDMI
- TypeDesktop
- Weight900 g
- ColourBlack, Silver
- Processor frequency60 MHz
- On/off switchYes
Overview
- Connectivity
- HDMI
- Type
- Desktop
- Weight
- 900 g
- Colour
- Black, Silver
- Processor frequency
- 60 MHz
- On/off switch
- Yes
- Brand
- Barco
- Category
- Wireless Presentation System
- Model
- R9861521EU
- Part number
- R9861521EU
- EAN / UPC
- 4005922716202, 5400503000180
- Also known as
- Barco R9861521EU wireless presentation system HDMI Desktop
Specifications
41 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black, Silver |
| LED indicators | Yes |
| Certification | FCC/CE |
Features
| Specification | Value |
|---|---|
| Processor frequency | 60 MHz |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Supported graphics resolutions | 3840 x 2160 |
Management features
| Specification | Value |
|---|---|
| On/off switch | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antennas quantity | 2 |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Frequency band | 2.4, 5 GHz |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.1x |
| Security algorithms | WPA-PSK, WPA2-PSK |
| Maximum operating distance | 30 m |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4b |
| USB 2.0 ports quantity | 4 |
| S/PDIF out port | Yes |
| 3.5 mm (1/8-inch) out | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Input voltage | 110 - 220 V |
| Power consumption (max) | 50 W |
| Power consumption (typical) | 0.5 W |
| Power consumption (standby) | 8 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.14 Mojave |
| Mobile operating systems supported | Android, iOS 11.0 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 202 mm |
| Height | 39 mm |
| Weight | 900 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
