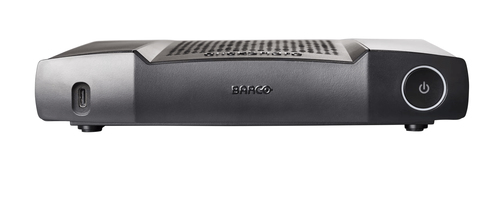

CX‑50 G2
Model CX‑50 G2Part no. R9861622CNB2EAN 5415334042155
48 specifications
- SpeedWi-Fi 5 (802.11ac)
- ConnectivityHDMI
- TypeDesktop
- Weight985 g
- ColourBlack
- Maximum resolution (HDMI)3840 x 2160 pixels
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Connectivity
- HDMI
- Type
- Desktop
- Weight
- 985 g
- Colour
- Black
- Maximum resolution (HDMI)
- 3840 x 2160 pixels
- Brand
- Barco
- Category
- Wireless Presentation System
- Model
- CX‑50 G2
- Part numbers
- R9861622CNB2, R9861622EUB2, R9861622USB2
- EAN / UPC
- 5415334042155, 5415334042117, 5415334042124
- Also known as
- Barco CX‑50 G2 wireless presentation system HDMI Desktop
Specifications
48 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Features
| Specification | Value |
|---|---|
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Supported graphics resolutions | 3840 x 2160 |
| AirPlay mirroring | Yes |
| Google Cast | Yes |
| Miracast | Yes |
| Concurrent users | 32 user(s) |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Frequency band | 2.4, 5 GHz |
| Dual-band | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2000,2500 Mbit/s |
| Networking standards | IEEE 802.1x |
| Security algorithms | WPA2-PSK, EAP-TLS, EAP-TTLS, PEAP |
| Maximum operating distance | 30 m |

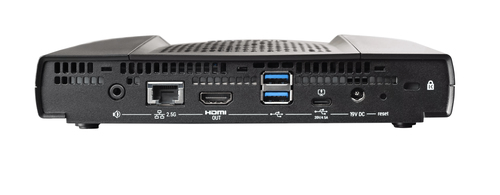

Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| HDMI input ports quantity | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| S/PDIF out port | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Input voltage | 110 - 220 V |
| Power consumption (max) | 74.5 W |
| Power consumption (standby) | 0.27 W |
| Suitable for use in country/location | China |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 11 Enterprise x64, Windows 10, Windows 11 Home, Windows 10 Education, Windows 11 Pro, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 P |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Mobile operating systems supported | Android 11.0, Android 12.0, Android 13.0, Android 14.0, iOS 14, iOS 14.5, iOS 15, iOS 16 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 202 mm |
| Height | 39 mm |
| Weight | 985 g |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
