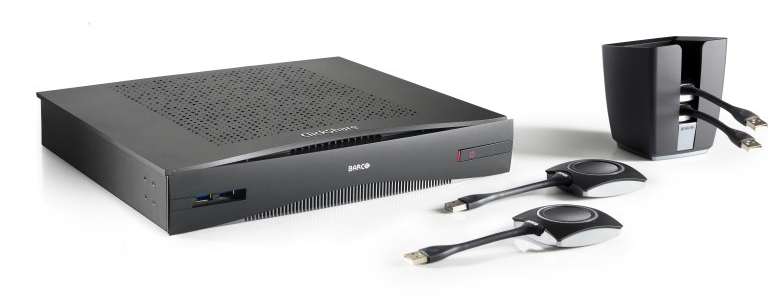

ClickShare CSE-800
Model ClickShare CSE-800Part no. R9861580EUEAN 5400503000128
42 specifications
- ConnectivityHDMI
- TypeDesktop
- Weight2.2 kg
- ColourBlack
- Maximum resolution (HDMI)4096 x 2160 pixels
- Reset buttonYes
Overview
- Connectivity
- HDMI
- Type
- Desktop
- Weight
- 2.2 kg
- Colour
- Black
- Maximum resolution (HDMI)
- 4096 x 2160 pixels
- Reset button
- Yes
- Brand
- Barco
- Category
- Wireless Presentation System
- Model
- ClickShare CSE-800
- Part numbers
- R9861580EU, R9861580, R9861580NA
- EAN / UPC
- 5400503000128, 5400503000135
- Also known as
- Barco ClickShare CSE-800 wireless presentation system HDMI Desktop
Specifications
42 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
| LED indicators | Yes |
| Certification | FCC, CE |
Features
| Specification | Value |
|---|---|
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| Streaming capability | Yes |
| AirPlay mirroring | Yes |
| Maximum frame rate | 60 fps |
| Number of users | 64 user(s) |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| On/off switch | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antennas quantity | 4 |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Frequency band | 2.4 & 5 |
| Ethernet LAN | Yes |
| Security algorithms | 802.1x RADIUS, EAP-TLS, EAP-TTLS, PEAP, WPA2-PSK |
| Maximum operating distance | 30 m |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| Number of HDMI outputs | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| S/PDIF out port | Yes |
| Headphone outputs | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Input voltage | 110 - 220 V |
| Power consumption (max) | 90 W |
| Power consumption (typical) | 52 W |
| Power consumption (standby) | 1 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Mobile operating systems supported | iOS 10.0, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 282.3 mm |
| Depth | 206.5 mm |
| Height | 46.2 mm |
| Weight | 2.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
