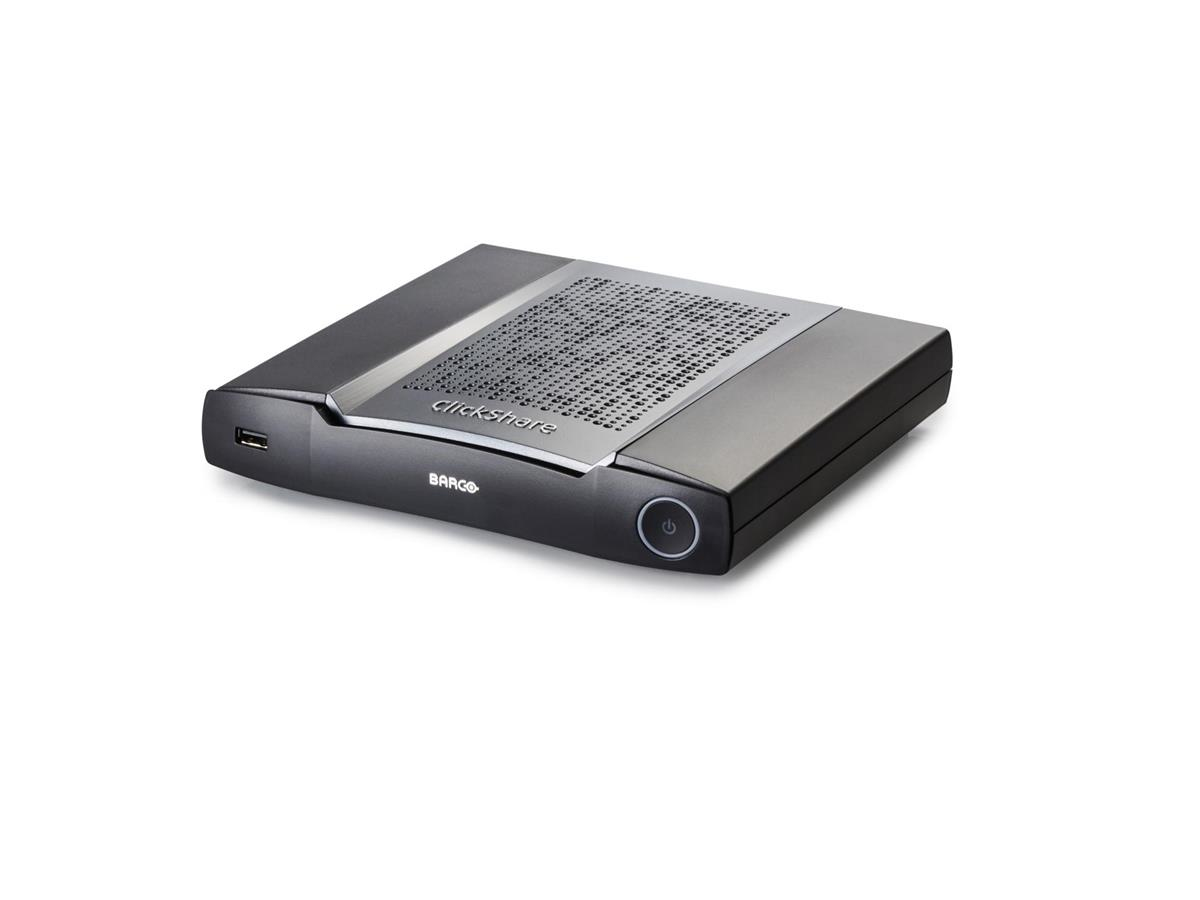

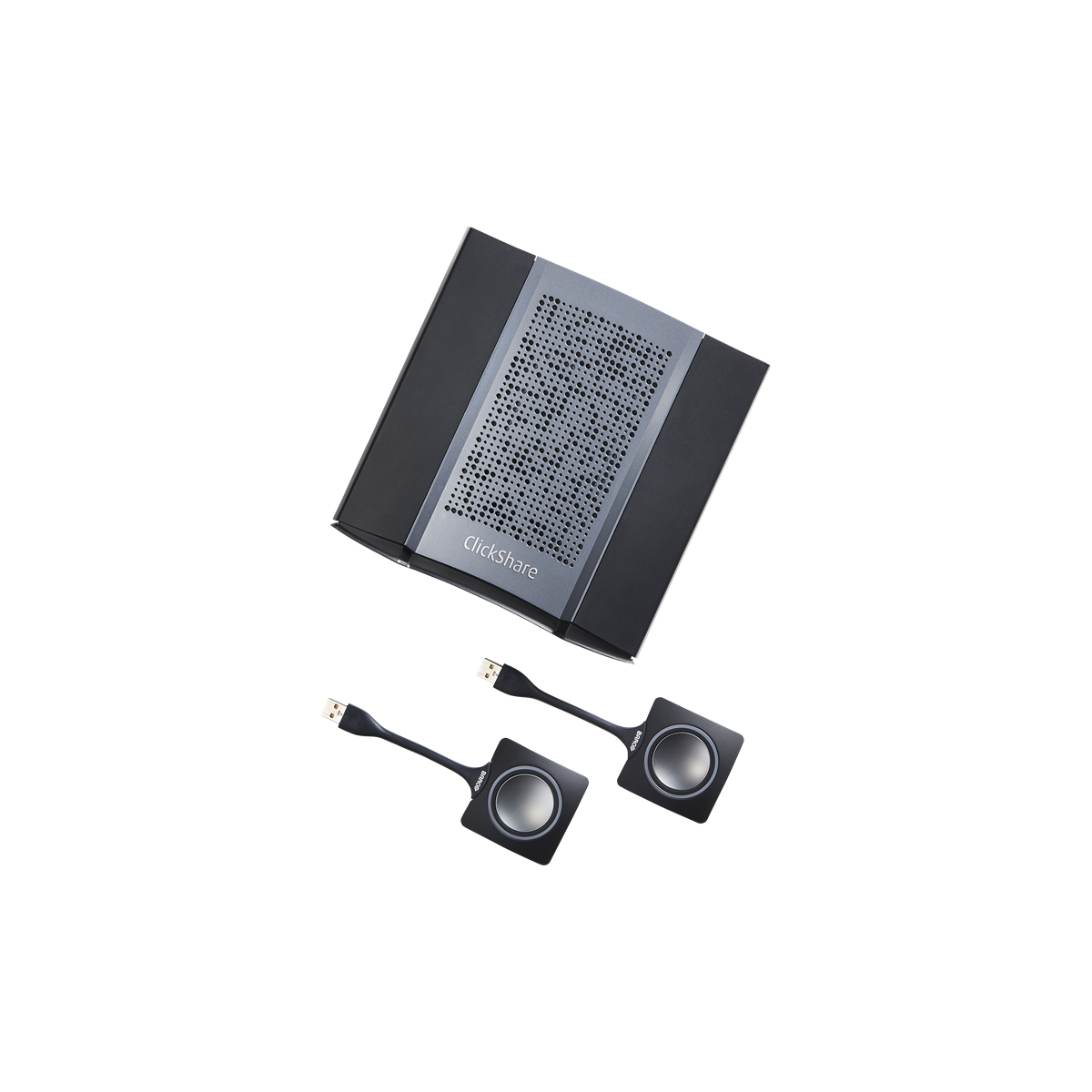

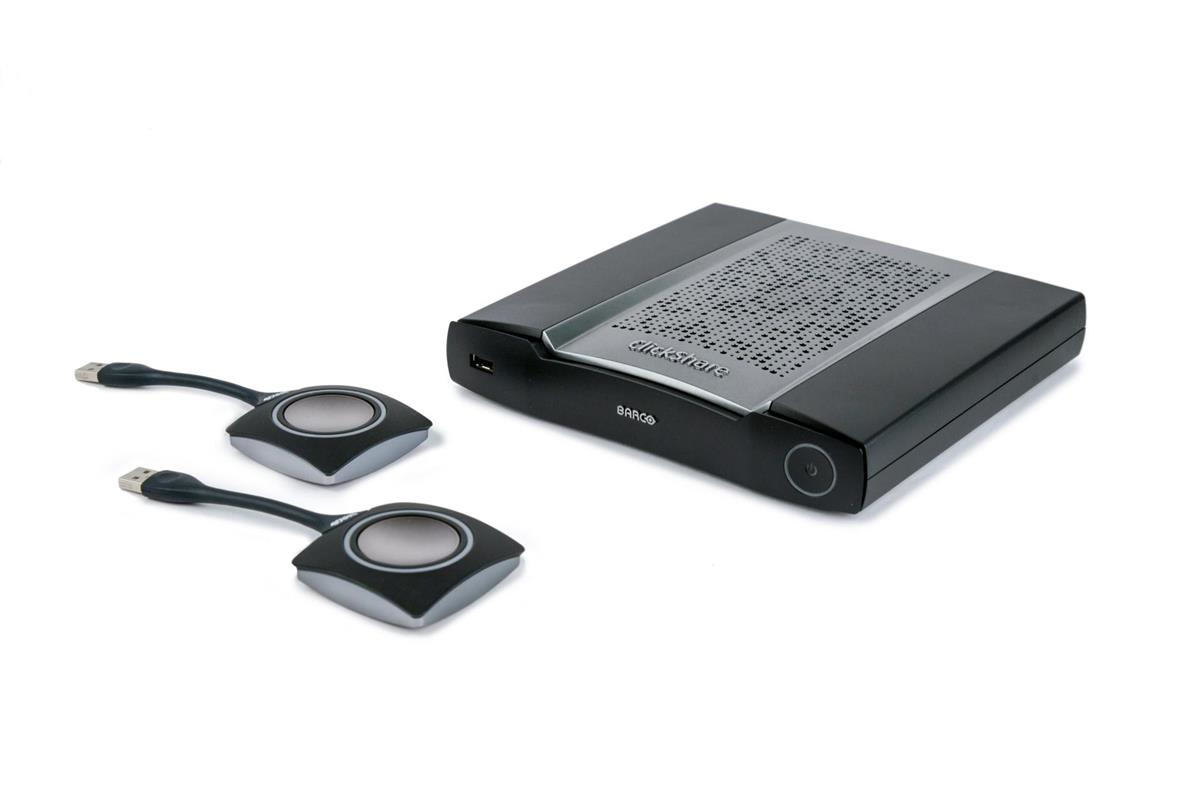

ClickShare CSE-200+
Model ClickShare CSE-200+Part no. R9861521NAEAN 5400503000203
43 specifications
- SpeedWi-Fi 5 (802.11ac)
- ConnectivityHDMI
- TypeDesktop
- Weight900 g
- ColourBlack
- Maximum resolution (HDMI)3840 x 2160 pixels
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Connectivity
- HDMI
- Type
- Desktop
- Weight
- 900 g
- Colour
- Black
- Maximum resolution (HDMI)
- 3840 x 2160 pixels
- Brand
- Barco
- Category
- Wireless Presentation System
- Model
- ClickShare CSE-200+
- Part number
- R9861521NA
- EAN / UPC
- 5400503000203
Specifications
43 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Certification | FCC/CE |
Features
| Specification | Value |
|---|---|
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Supported video modes | 2160p |
| Maximum frame rate | 30 fps |
| Number of users | 2 user(s) |
Management features
| Specification | Value |
|---|---|
| On/off switch | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Frequency band | 2.4 - 5 GHz |
| Dual-band | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Security algorithms | WPA2-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| HDMI input ports quantity | 1 |
| Number of HDMI outputs | 2 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| S/PDIF out port | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power consumption (max) | 50 W |
| Power consumption (standby) | 8 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 200 mm |
| Height | 39 mm |
| Weight | 900 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
