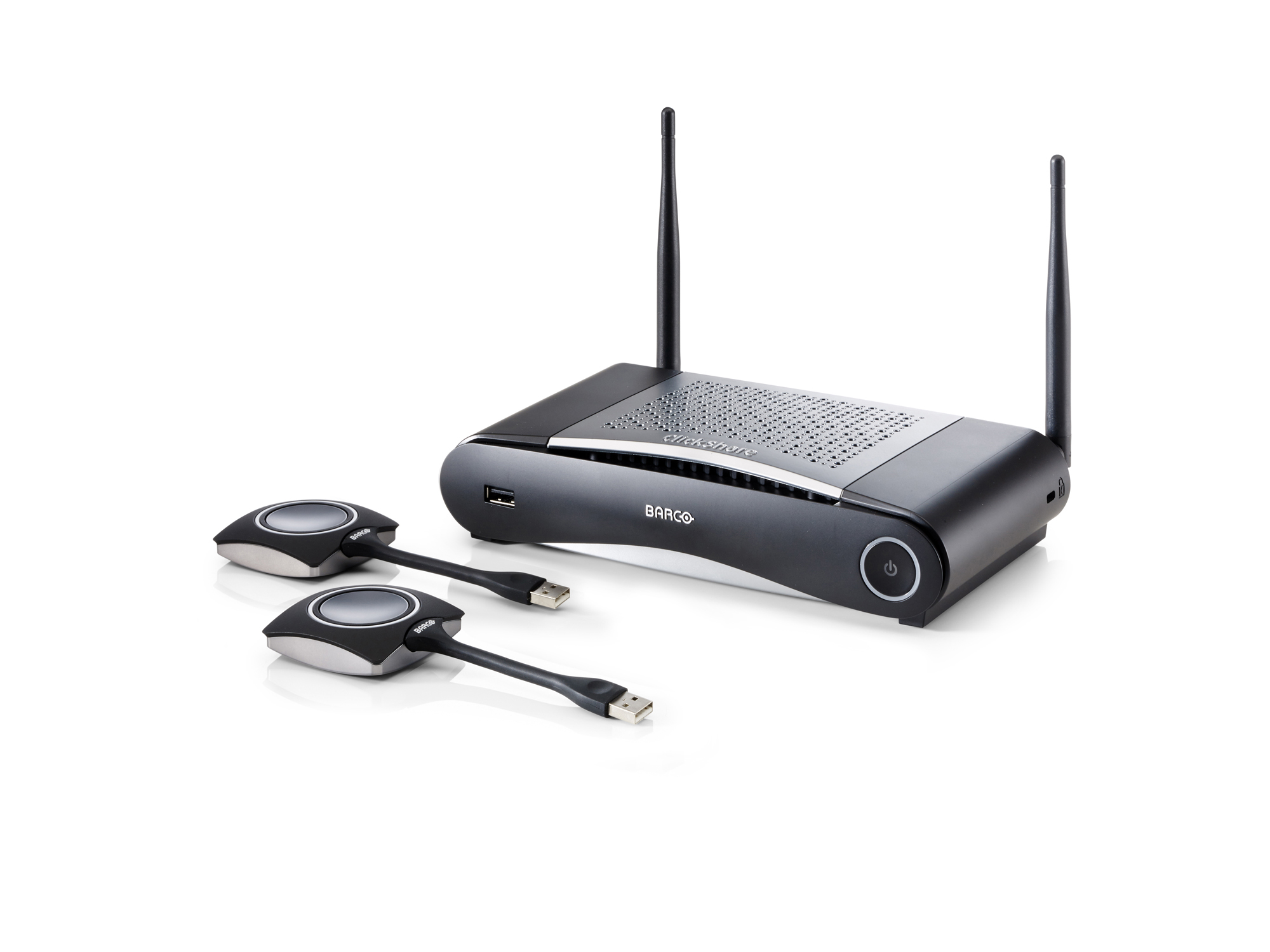

ClickShare CSE-200
Model ClickShare CSE-200Part no. R9861520EU
39 specifications
- ConnectivityHDMI
- TypeDesktop
- Weight600 g
- ColourBlack, Silver
- Maximum resolution (HDMI)1920 x 1200 pixels
- On/off switchYes
Overview
- Connectivity
- HDMI
- Type
- Desktop
- Weight
- 600 g
- Colour
- Black, Silver
- Maximum resolution (HDMI)
- 1920 x 1200 pixels
- On/off switch
- Yes
- Brand
- Barco
- Category
- Wireless Presentation System
- Model
- ClickShare CSE-200
- Part number
- R9861520EU
- Also known as
- Barco ClickShare CSE-200 wireless presentation system HDMI Desktop
Specifications
39 specifications in 13 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black, Silver |
| LED indicators | Yes |
| Certification | FCC, CE |
Features
| Specification | Value |
|---|---|
| Maximum resolution (HDMI) | 1920 x 1200 pixels |
| Maximum frame rate | 30 fps |
| Number of users | 2 user(s) |
Management features
| Specification | Value |
|---|---|
| On/off switch | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antennas quantity | 2 |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n) |
| Frequency band | 2.4 & 5 |
| Ethernet LAN | Yes |
| Security algorithms | WPA2-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| Number of HDMI outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| S/PDIF out port | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power consumption (max) | 18 W |
| Power consumption (typical) | 6 W |
| Power consumption (standby) | 2.6 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android 5.0, Android 5.1, iOS 8.0, iOS 8.1, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 135 mm |
| Height | 205 mm |
| Weight | 600 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
