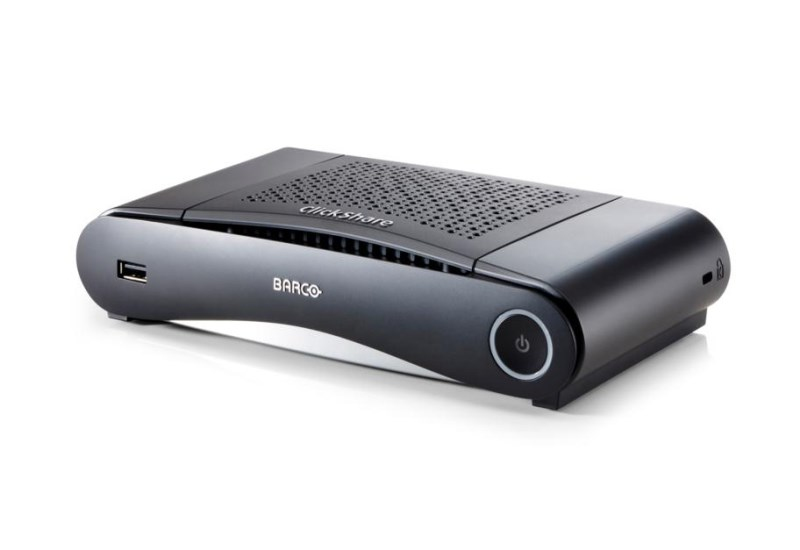

ClickShare CS-100 Huddle
Model ClickShare CS-100 HuddlePart no. R9861510HEUEAN 5400503000241
43 specifications
- SpeedWi-Fi 4 (802.11n)
- ConnectivityHDMI
- TypeDesktop
- Weight600 g
- ColourBlack
- Supported graphics resolutions1920 x 1080 (HD 1080)
Overview
- Speed
- Wi-Fi 4 (802.11n)
- Connectivity
- HDMI
- Type
- Desktop
- Weight
- 600 g
- Colour
- Black
- Supported graphics resolutions
- 1920 x 1080 (HD 1080)
- Brand
- Barco
- Category
- Wireless Presentation System
- Model
- ClickShare CS-100 Huddle
- Part numbers
- R9861510HEU, R9861510HNA
- EAN / UPC
- 5400503000241, 5400503000258
- Also known as
- Barco ClickShare CS-100 Huddle wireless presentation system HDMI Desktop
Specifications
43 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Black |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Certification | FCC/CE |
Features
| Specification | Value |
|---|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 fps |
| Number of users | 8 user(s) |
Management features
| Specification | Value |
|---|---|
| On/off switch | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Frequency band | 2.4, 5 GHz |
| Dual-band | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Security algorithms | 802.1x RADIUS, WPA2-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | HDMI |
| Number of HDMI outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| Power consumption (max) | 18 W |
| Power consumption (typical) | 6 W |
| Power consumption (standby) | 0.4 W |
| Suitable for use in country/location | Europe |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Mobile operating systems supported | Android 7.0, Android 8.0, iOS 10.0, iOS 11.0, iOS 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 205 mm |
| Depth | 115 mm |
| Height | 45 mm |
| Weight | 600 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
