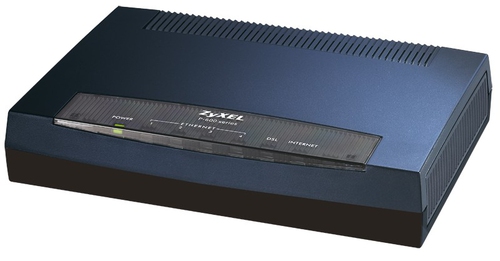

Zyxel AAM-1212-53 wired router
Model AAM-1212-53Part no. 91-004-584001BEAN 4718937501915
27 specifications
- ConnectivityWired
- Weight3.7 kg
- Networking standardsIEEE 802.3, IEEE 802.3u
- ADSLYes
- Ethernet LAN (RJ-45) ports2
- Data link protocolsFTP/TFTP
Overview
- Connectivity
- Wired
- Weight
- 3.7 kg
- Networking standards
- IEEE 802.3, IEEE 802.3u
- ADSL
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Data link protocols
- FTP/TFTP
- Brand
- Zyxel
- Category
- Wired Router
- Model
- AAM-1212-53
- Part number
- 91-004-584001B
- EAN / UPC
- 4718937501915
- Also known as
- Zyxel AAM-1212-53 wired router
Specifications
27 specifications in 12 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| DSL specification | DMT T1.413, G.DMT (ITU G.992.1), G.LITE (ITU G.992.2), G.HS (ITU G.994.1), ADSL2(G.992.3 Annex B), ADSL2+(G.992.5 Annex B), ISDN |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-11 ports quantity | 1 |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | FTP/TFTP |
| Management protocols | IGMP v1/v2, SNMPv1/v2 |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 25 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.7 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 170 x 320 x 35 mm |
| Networking features | Fast Ethernet |
| Ports quantity | 12 |
| Remote administration | CLI |
| Connectivity LEDs | Yes |
