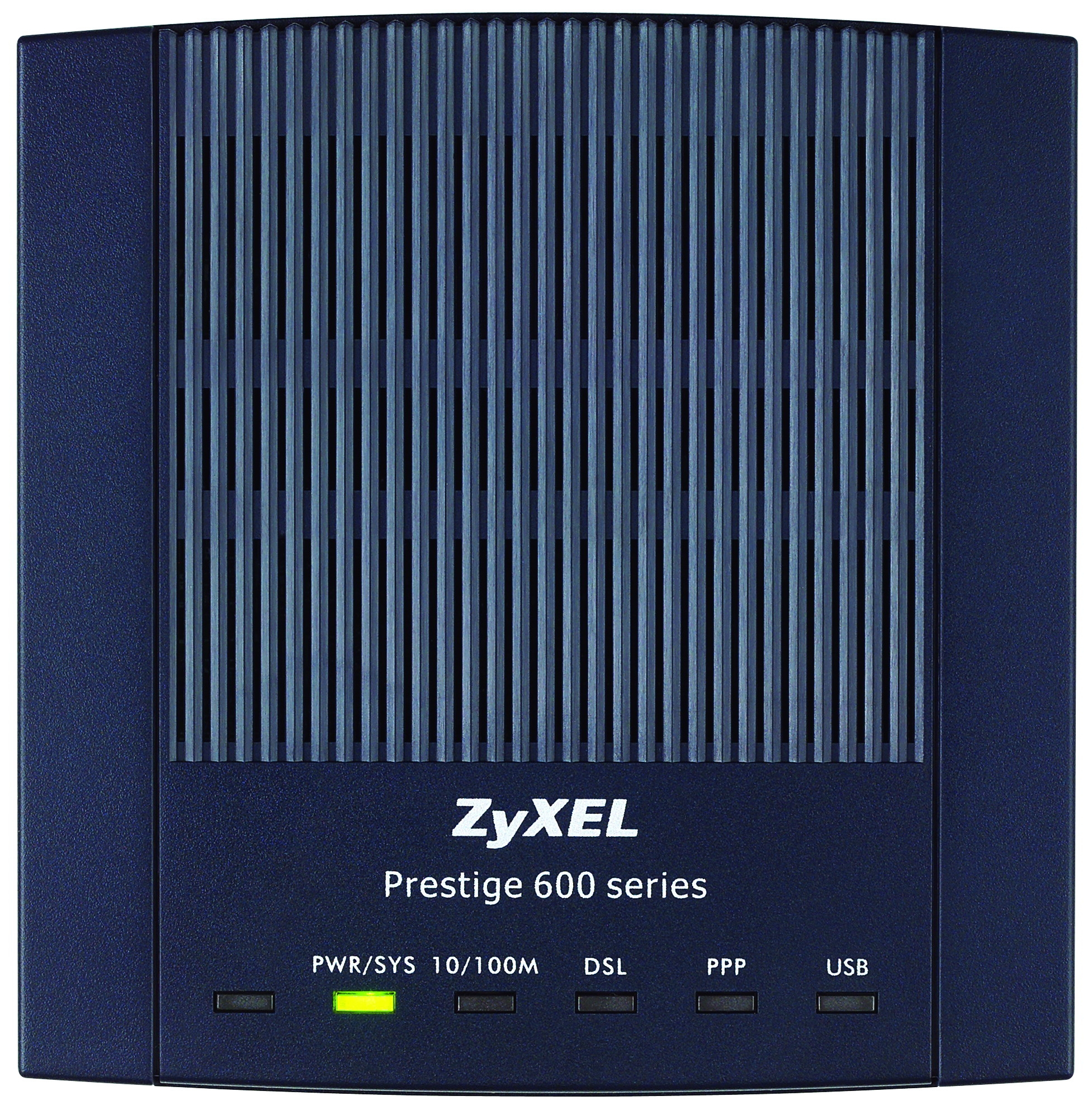

Prestige 660RU wired router Fast Ethernet Black, Blue
Model 660RUPart no. 91-004-679001B
35 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight171 g
- ColourBlack, Blue
- Networking standardsIEEE 802.1D, IEEE 802.1Q
- ADSLYes
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 171 g
- Colour
- Black, Blue
- Networking standards
- IEEE 802.1D, IEEE 802.1Q
- ADSL
- Yes
- Brand
- Zyxel
- Category
- Wired Router
- Model
- 660RU
- Part number
- 91-004-679001B
- Also known as
- Zyxel Prestige 660RU wired router Fast Ethernet Black, Blue
Specifications
35 specifications in 12 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Data transfer rate | 100 Mbit/s |
| Full duplex | Yes |
| Supports ISDN connection | No |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| DSL specification | G.dmt(G.992.1), G.lite(G.992.2), G.dmt.bis(G.992.3), G.lite.bis(G.992.4), (G.992.5) |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RJ-11 ports quantity | 1 |
| USB ports quantity | 1 |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Management protocols | SNMP, Telnet, HTTP, FTP |
| Supported network protocols | TCP/IP, UDP/IP, IPSec, PPTP, PPPoE |
Security
| Specification | Value |
|---|---|
| Authentication method | PAP, CHAP |
| MAC address table | 256 entries |
Features
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Blue |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 171 g |
Other features
| Specification | Value |
|---|---|
| Power requirements | 12V AC |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 111 x 106.5 x 35 mm |
| Maximum data transfer rate | 0.1 Gbit/s |
| Networking features | Fast Ethernet, ADSL |
| Supported data transfer rates | 10/100 Mbit/s |
| Connectivity LEDs | Yes |
