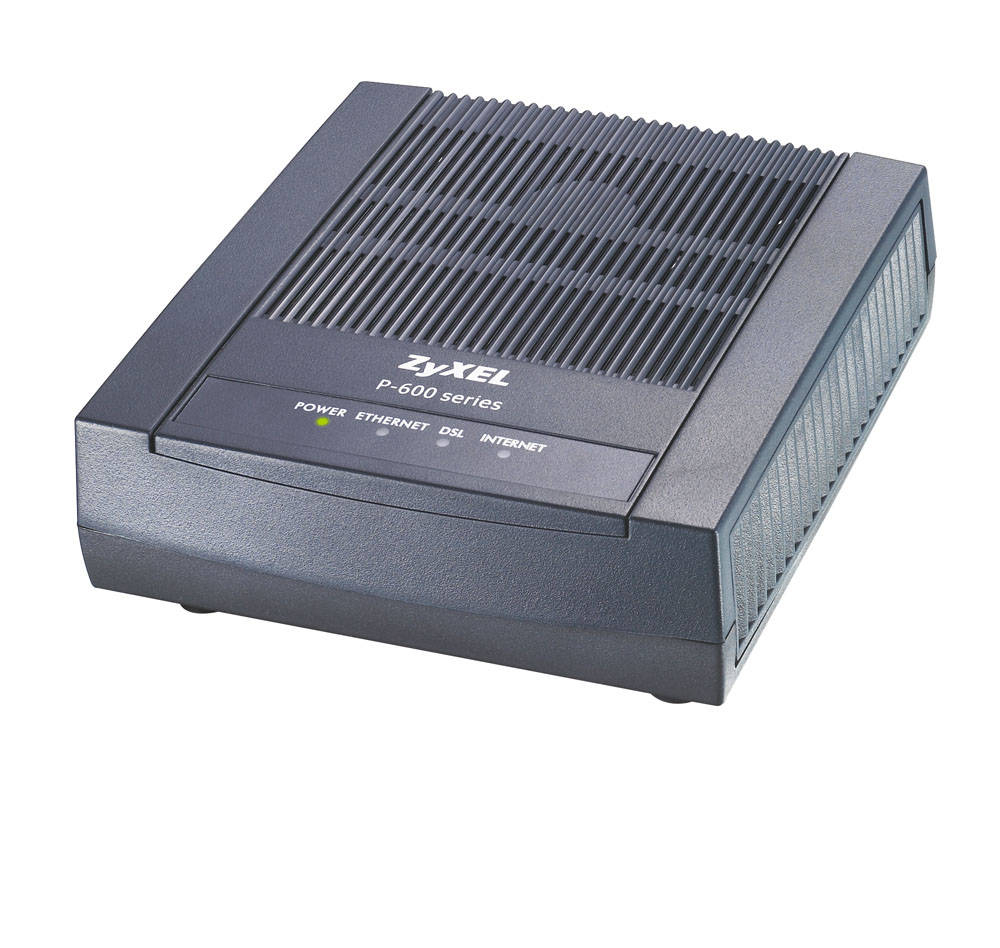

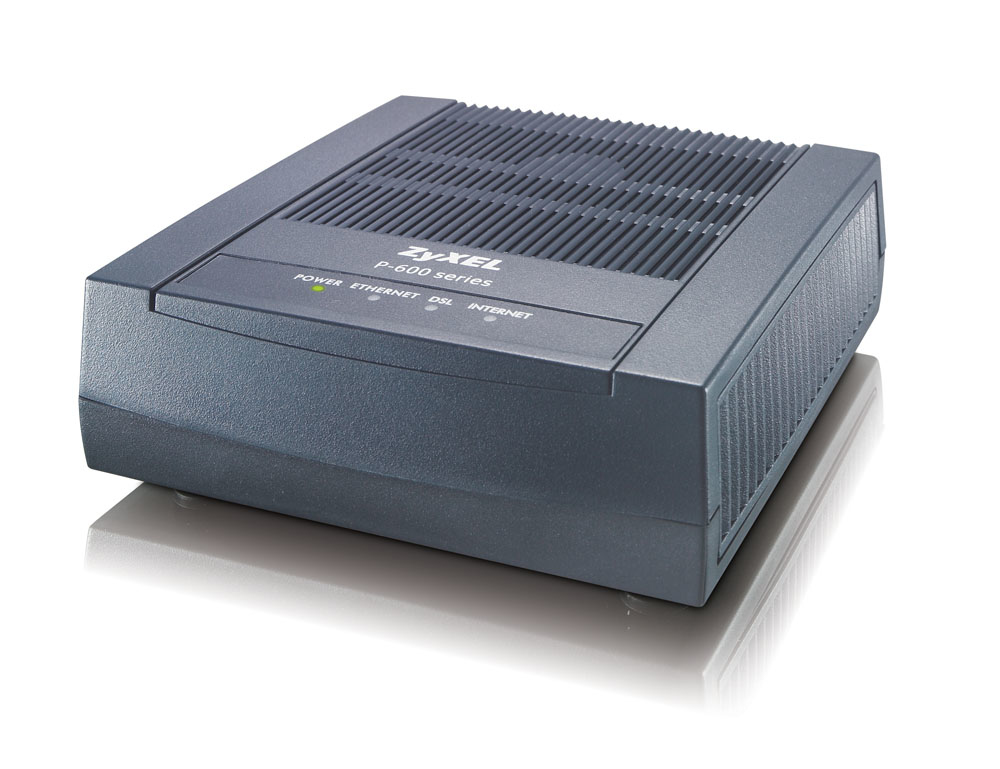

Zyxel 660R-T1 v3s
Model 660R-T1 v3sPart no. 91-004-933001BEAN 189375134821
30 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight165 g
- ColourBlack
- Networking standardsIEEE 802.1D, IEEE 802.1Q
- ADSLYes
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 165 g
- Colour
- Black
- Networking standards
- IEEE 802.1D, IEEE 802.1Q
- ADSL
- Yes
- Brand
- Zyxel
- Category
- Wired Router
- Model
- 660R-T1 v3s
- Part number
- 91-004-933001B
- EAN / UPC
- 189375134821, 4718937513482
- Also known as
- Zyxel Prestige 660R-T1 v3s wired router Black
Specifications
30 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Data transfer rate | 100 Mbit/s |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
Management features
| Specification | Value |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |

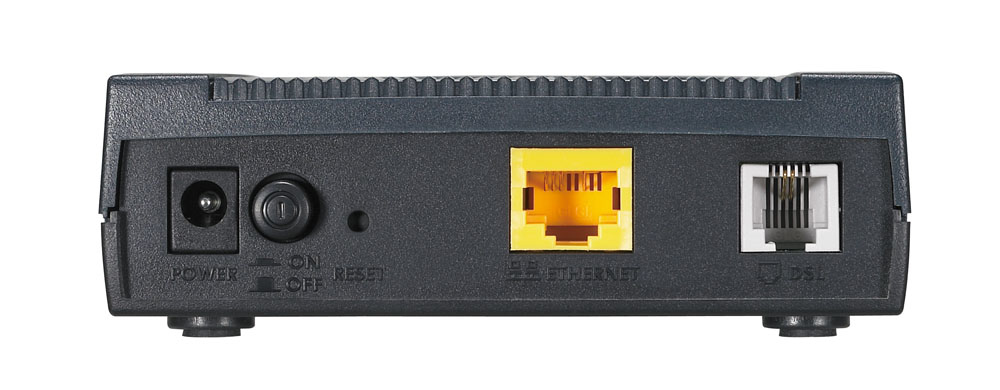

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RJ-11 ports quantity | 1 |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Management protocols | DHCP, DNS, UPnP, Telnet, FTP, Web, SNMP, TR-069, TR-064 |
| Supported network protocols | IP, 802.1d, IGMP v1&v2, RIP-1/RIP-2, ICMP, TCP/UDP |
Features
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Input current | 0.6 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 165 g |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 110 x 107 x 36 mm |
| Input voltage | 9 V |
| Maximum data transfer rate | 0.1 Gbit/s |
| Power supply type | DC |
| Supported data transfer rates | 10, 100 Mbit/s |
| Connectivity LEDs | Yes |
