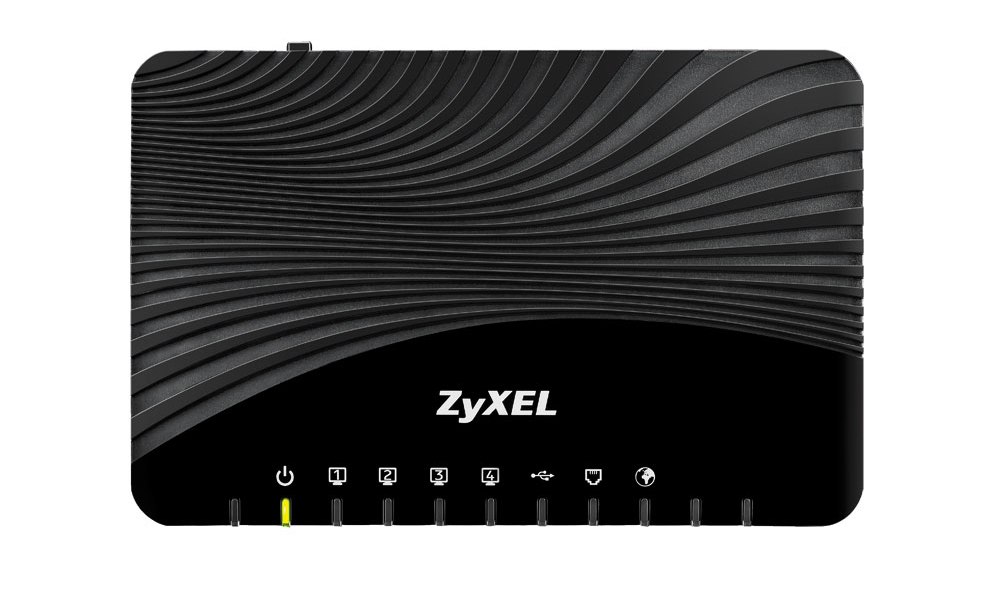

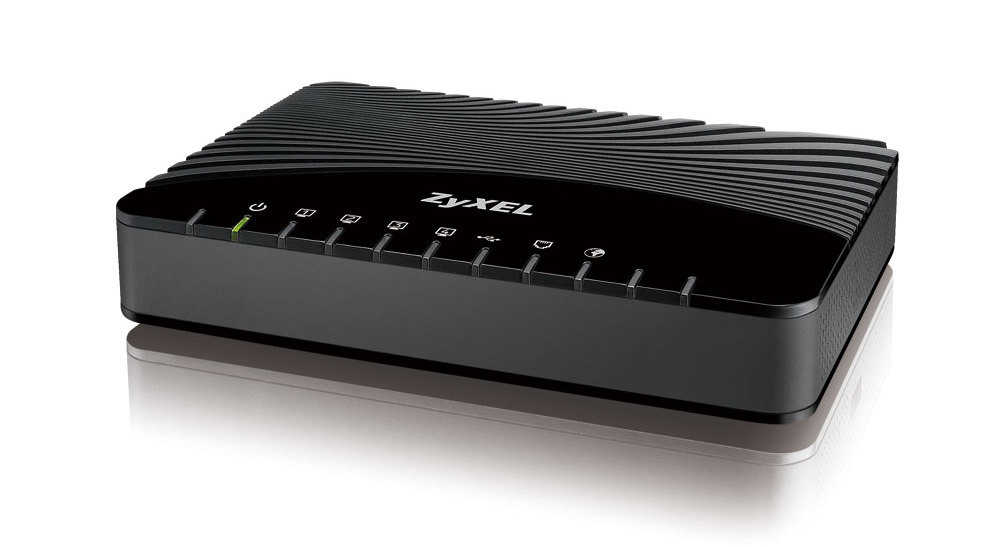

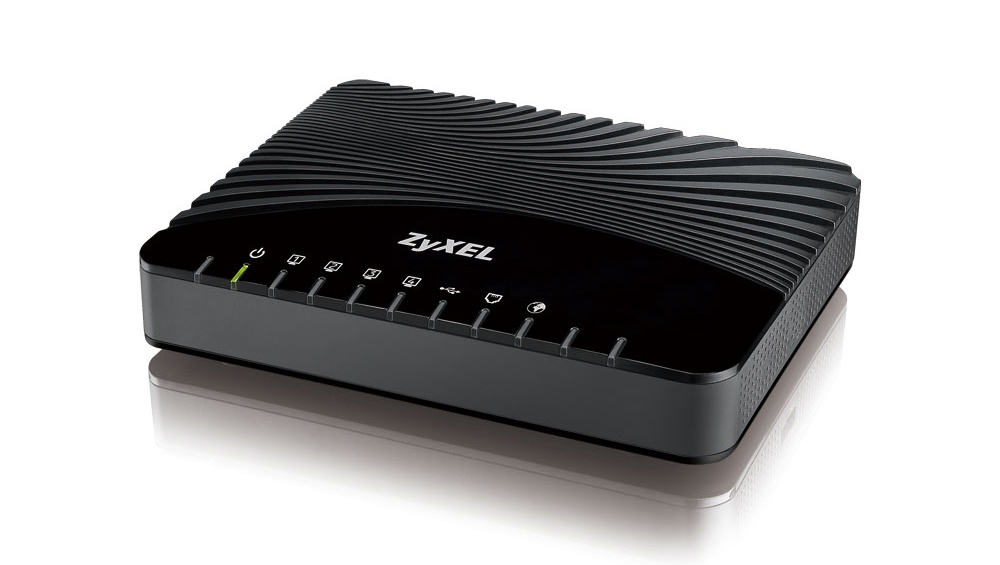

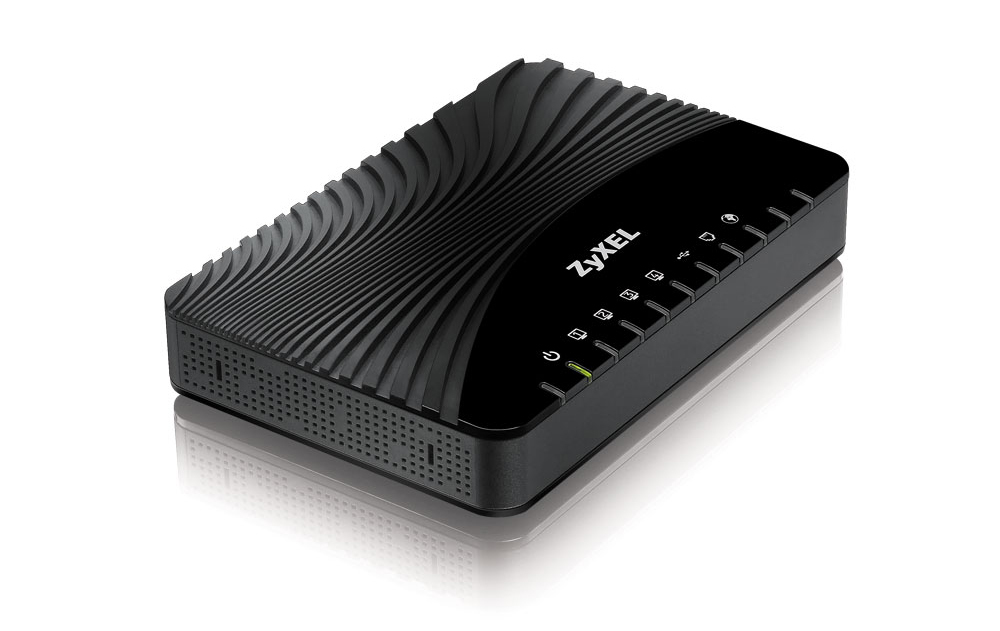

Prestige 660HU-T1 wired router Fast Ethernet Black
Model 660HU-T1Part no. 93-025-057001BUKEAN 4718937564262
45 specifications
- Weight245 g
- ColourBlack
- Ethernet WANYes
- Networking standardsIEEE 802.1p
- Dual-bandNo
- Ethernet LAN (RJ-45) ports4
Overview
- Weight
- 245 g
- Colour
- Black
- Ethernet WAN
- Yes
- Networking standards
- IEEE 802.1p
- Dual-band
- No
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- Zyxel
- Category
- Wired Router
- Model
- 660HU-T1
- Part number
- 93-025-057001BUK
- EAN / UPC
- 4718937564262
- Also known as
- Zyxel Prestige 660HU-T1 wired router Fast Ethernet Black
Specifications
45 specifications in 13 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
Wireless LAN features
| Specification | Value |
|---|---|
| Dual-band | No |
DSL features
| Specification | Value |
|---|---|
| ADSL2+ | Yes |
| Downstream data rate | 24 Mbit/s |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |

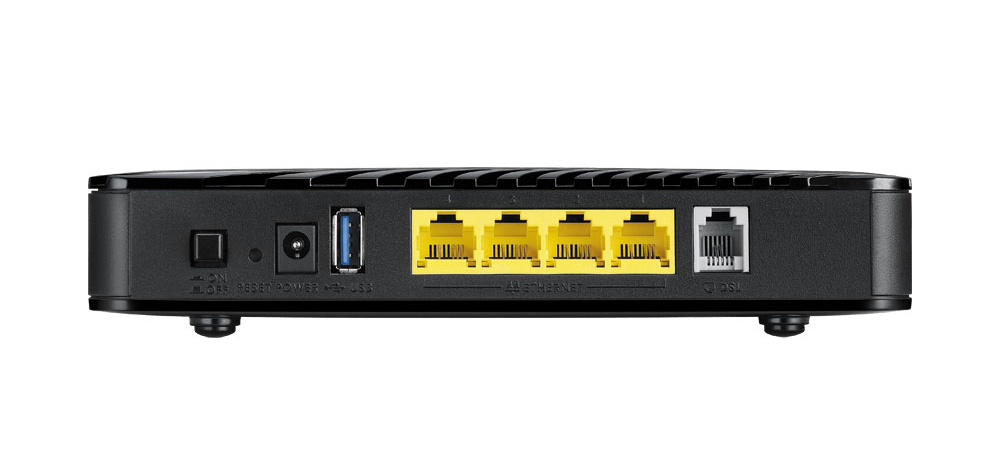

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| RJ-11 ports quantity | 1 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Routing protocols | IP, RIP-1, RIP-2 |
| Management protocols | SNMP, TR-069, TR-111, TR-143, MTU |
Security
| Specification | Value |
|---|---|
| Security algorithms | Not supported |
| MAC address filtering | No |
| URL filtering | Yes |
| Access Control List (ACL) | Yes |
Features
| Specification | Value |
|---|---|
| Safety | IEC 60950-1, EN 60950-1 |
| Certification | CE, FCC |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Rack mounting | No |
| LED indicators | DSL, LAN, Power, USB |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 186 mm |
| Depth | 121 mm |
| Height | 33 mm |
| Weight | 245 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 291 mm |
| Package depth | 162 mm |
| Package height | 51 mm |
| Package weight | 540 g |
