SafeStream Gigabit Multi-WAN VPN Router
Model TL-R605EAN 5715063055731
54 specifications
- Memory256 MB
- ColourBlack
- Ethernet WANYes
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports4
- Security algorithmsFTPES, SIPS
Overview
- Memory
- 256 MB
- Colour
- Black
- Ethernet WAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 4
- Security algorithms
- FTPES, SIPS
- Brand
- TP-Link
- Category
- Wired Router
- Model
- TL-R605
- Part number
- TL-R605
- EAN / UPC
- 5715063055731, 845973089597, 5715063042854, 5715063163481 +1 more
- Also known as
- TP-Link SafeStream Gigabit Multi-WAN VPN Router
Specifications
54 specifications in 13 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| SFP WAN | No |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Static route | Yes |
| VLAN support | Yes |
| Policy-based routing | Yes |
Management features
| Specification | Value |
|---|---|

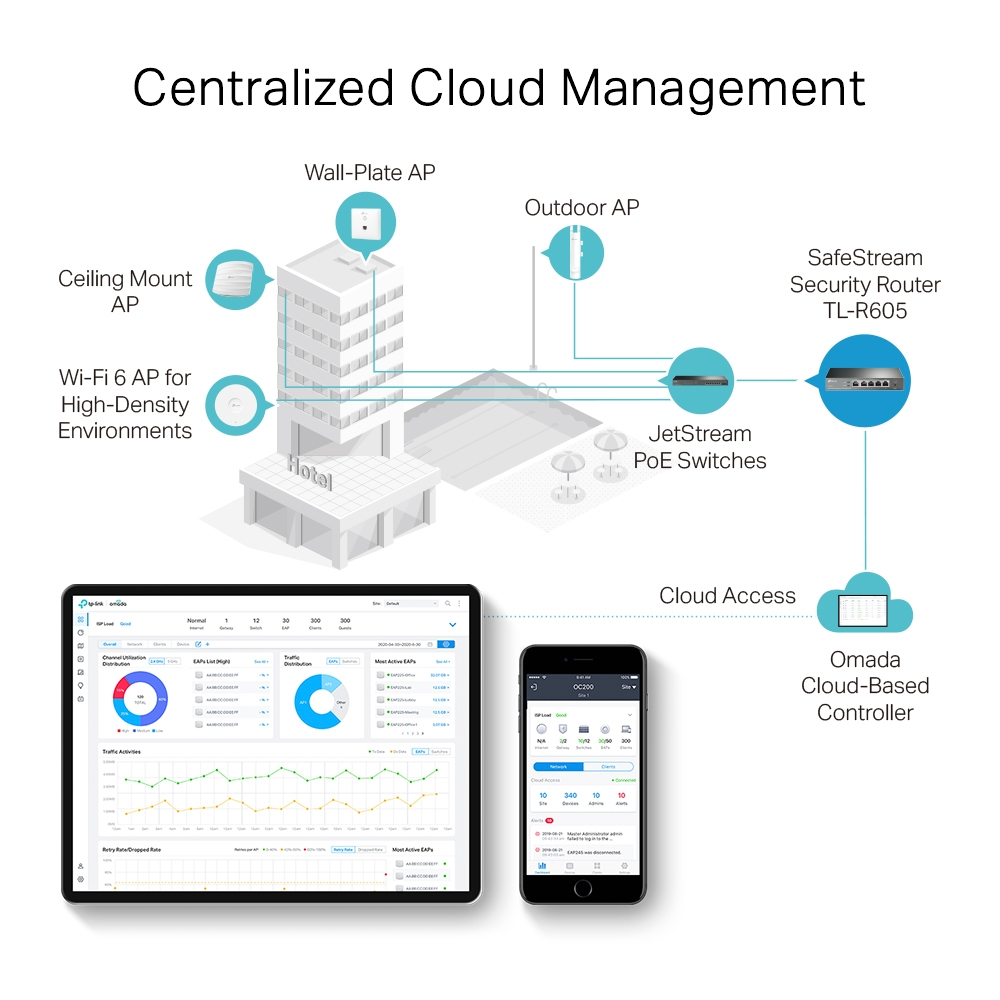

| Web-based management | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

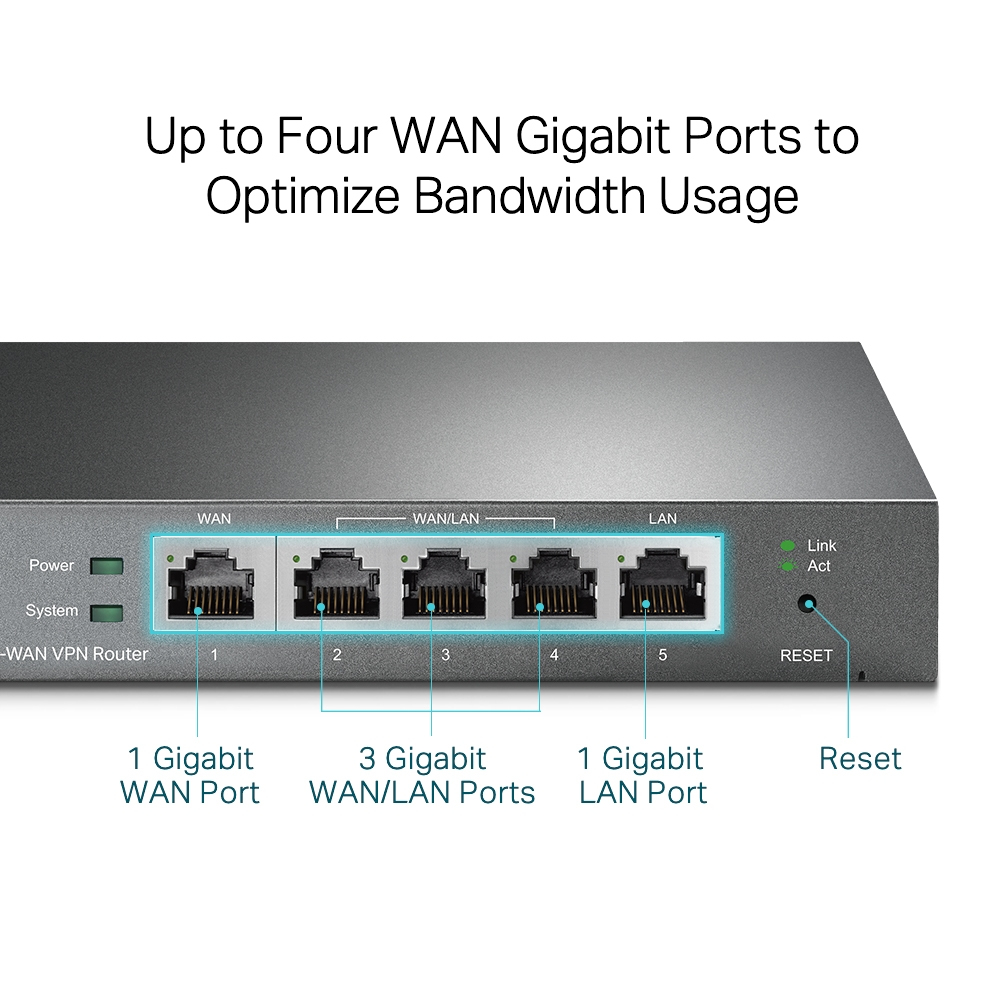

| Ethernet LAN (RJ-45) ports | 4 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DMZ support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | FTPES, SIPS |
| Firewall | Yes |
| URL filtering | Yes |
| DoS attack prevention | Yes |
| ARP attack prevention | Yes |
| ICMP attack prevention | Yes |
| Access Control List (ACL) | Yes |
| Network address translation (NAT) | Yes |
| System event log | Yes |

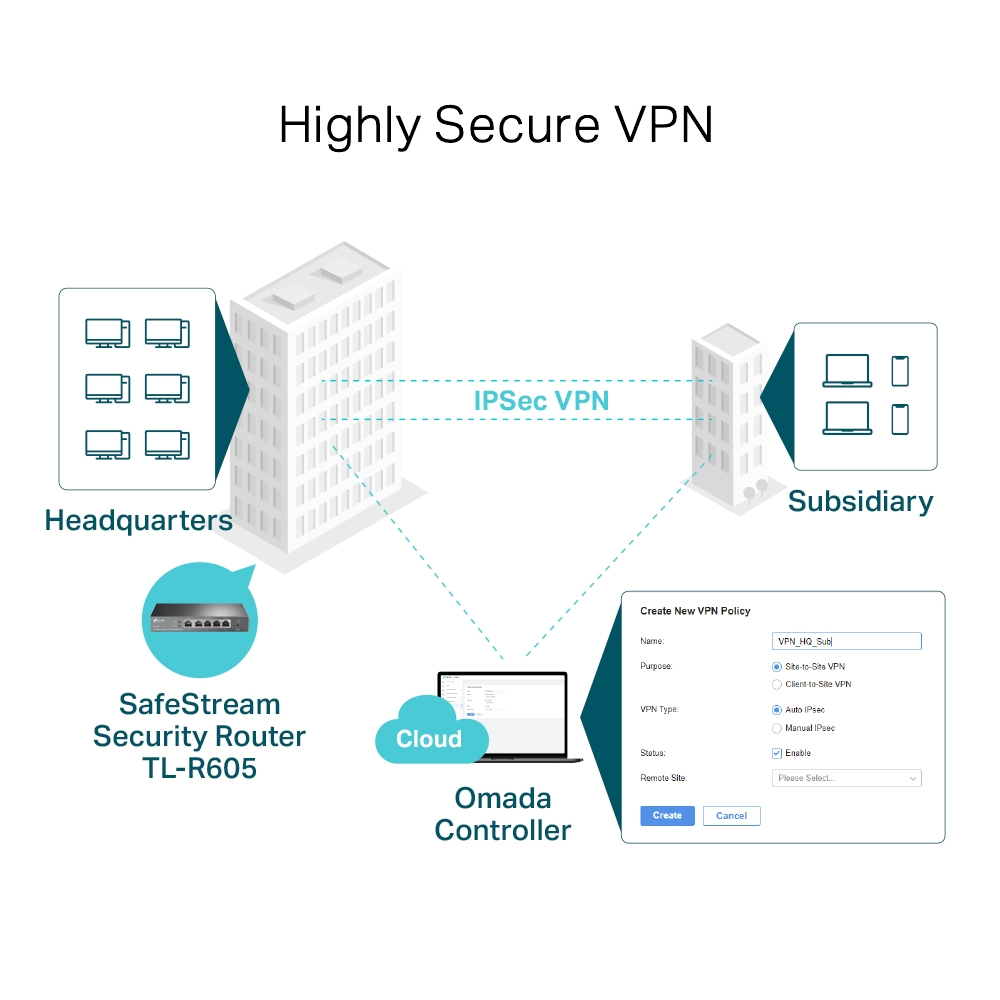

| VPN tunnels quantity | 20 |
| NAT functionality | One-to-One NAT5 Multi-Net NAT Virtual Server Port Triggering5 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
Features
| Specification | Value |
|---|---|
| Flash memory | 128 MB |
| Internal memory | 256 MB |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows Vista, Windows XP |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Certification | CE, FCC, RoHS |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | LAN, Power, Status, WAN |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
