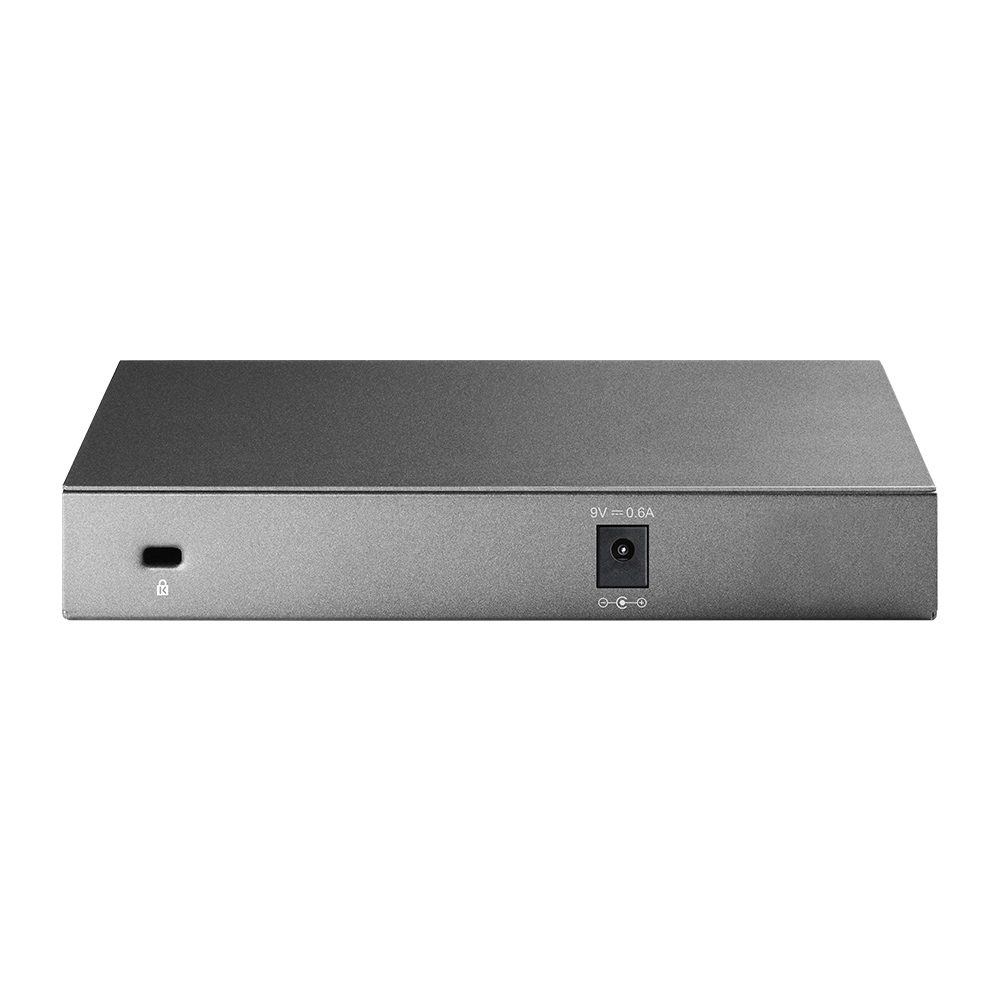

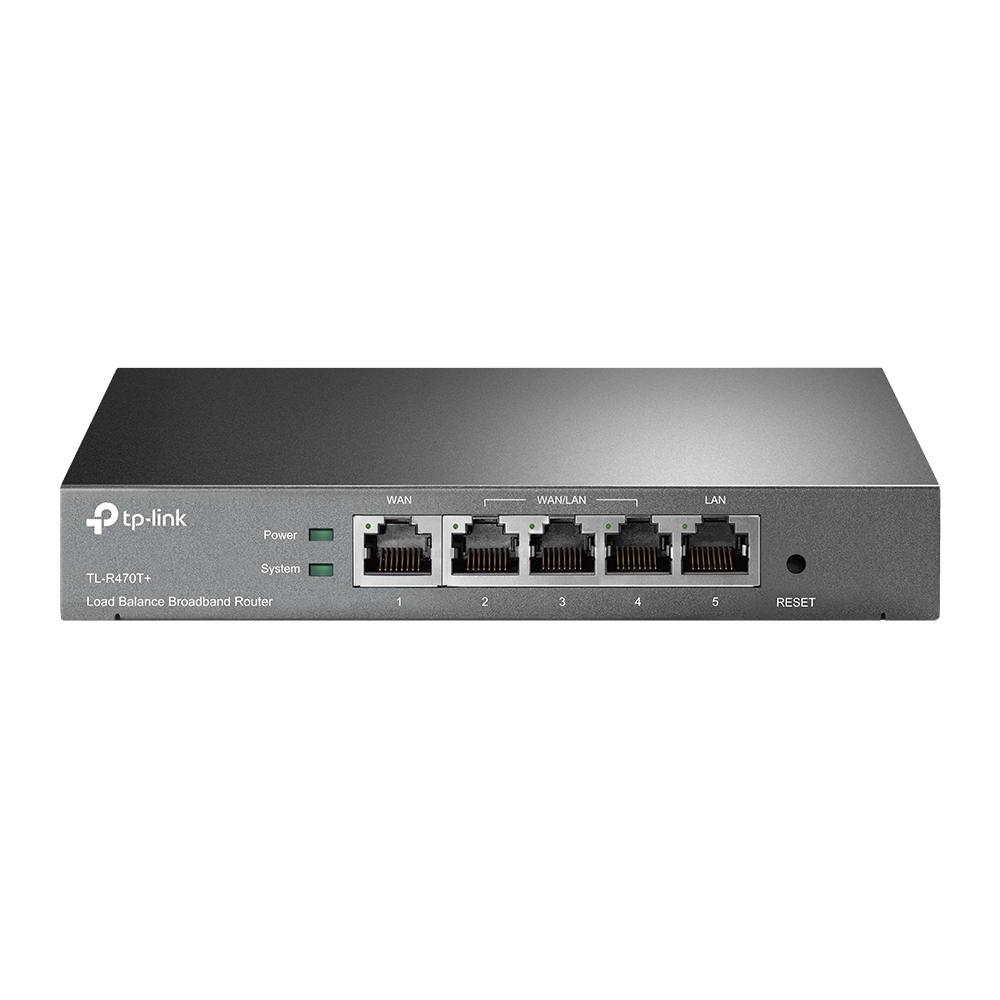

TL-R470T+(UN) wired router Fast Ethernet Black
Model TL-R470T+(UN)
43 specifications
- Memory128 MB
- ColourBlack
- Ethernet WANYes
- Ethernet interface typeFast Ethernet
- Ethernet LAN (RJ-45) ports4
- Security algorithmsHTTPS
Overview
- Memory
- 128 MB
- Colour
- Black
- Ethernet WAN
- Yes
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN (RJ-45) ports
- 4
- Security algorithms
- HTTPS
- Brand
- TP-Link
- Category
- Wired Router
- Model
- TL-R470T+(UN)
- Part number
- TL-R470T+(UN)
- Also known as
- TP-Link TL-R470T+(UN) wired router Fast Ethernet Black
Specifications
43 specifications in 12 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Full duplex | No |
| Static route | Yes |
| Traffic control | Yes |
| Concurrent connections | 10000 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Fiber ports quantity | 1 |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| Supported network protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS |
Security
| Specification | Value |
|---|---|
| Security algorithms | HTTPS |
| Firewall | Yes |
| MAC address filtering | Yes |
| IP-MAC-Port binding | Yes |
| VPN support | PPTP/L2TP/IP Sec |
Features
| Specification | Value |
|---|---|
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Windows operating systems supported | Windows 7, Windows 8, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Heat dissipation | 1 BTU/h |
| Mean time between failures (MTBF) | 1 h |
| Certification | CE, FCC, RoHS |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Rack mounting | No |
| LED indicators | LAN, Power, System, WAN, WLAN |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.56 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
Other features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
