SafeStream Gigabit Multi-WAN VPN Router
Model TL-ER7206EAN 840030701474
53 specifications
- Memory512 MB
- ColourBlack
- Ethernet WANYes
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports4
- Flash memory132 MB
Overview
- Memory
- 512 MB
- Colour
- Black
- Ethernet WAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 4
- Flash memory
- 132 MB
- Brand
- TP-Link
- Category
- Wired Router
- Model
- TL-ER7206
- Part number
- TL-ER7206
- EAN / UPC
- 840030701474, 6935364072391
- Also known as
- TP-Link SafeStream Gigabit Multi-WAN VPN Router
Specifications
53 specifications in 14 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| SFP WAN | Yes |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Static route | Yes |
| VLAN support | Yes |
| Policy-based routing | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |

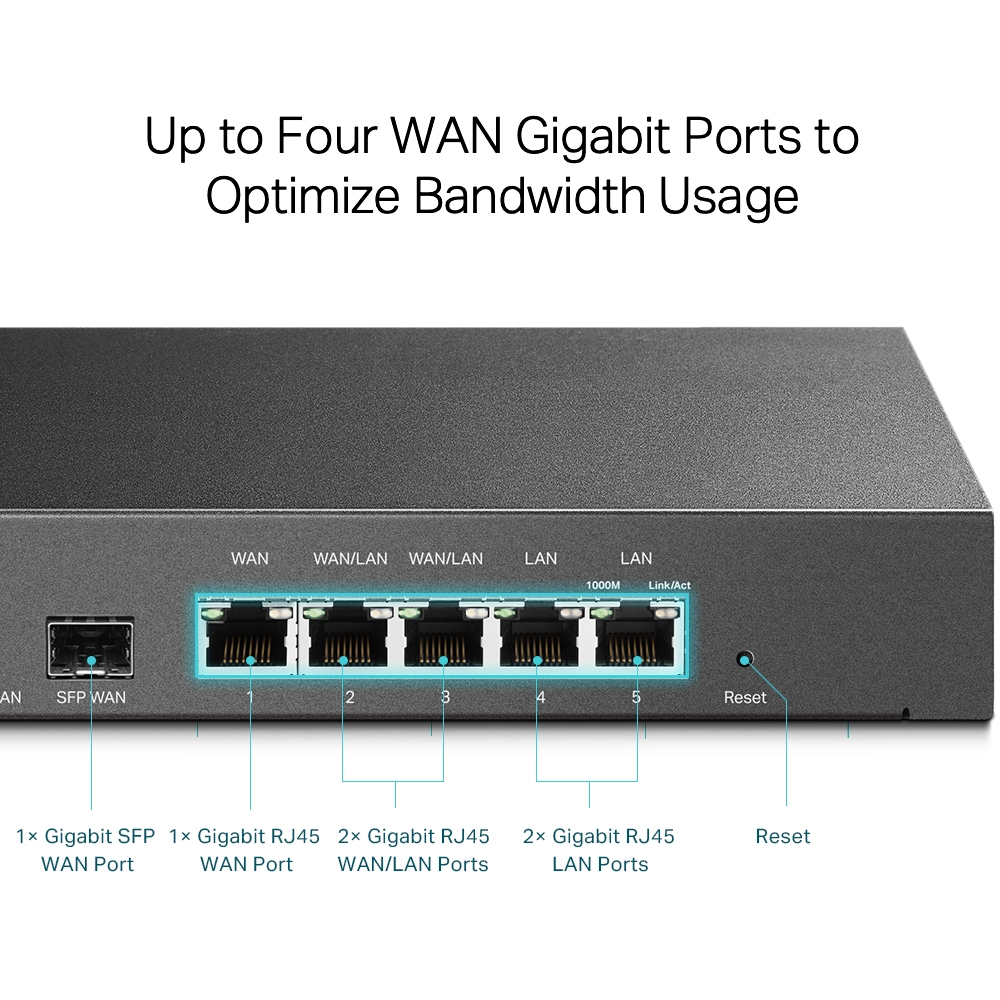

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DMZ support | Yes |
| Supported network protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP |

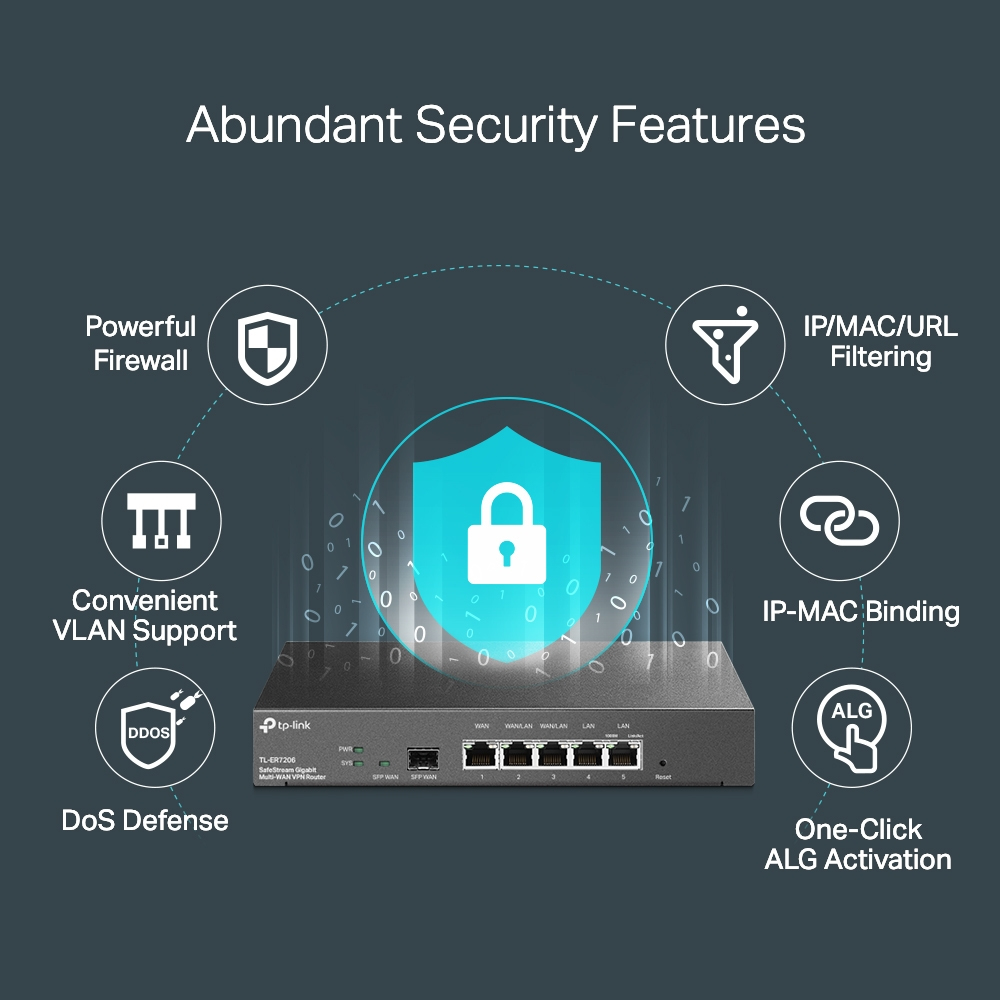

Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, IPSEC, MD5, SHA-1, SNMP, SNMPv2, SNMPv3 |
| Firewall | Yes |
| Firewall security | SPI |
| URL filtering | Yes |
| ARP attack prevention | Yes |
| Access Control List (ACL) | Yes |
| System event log | Yes |

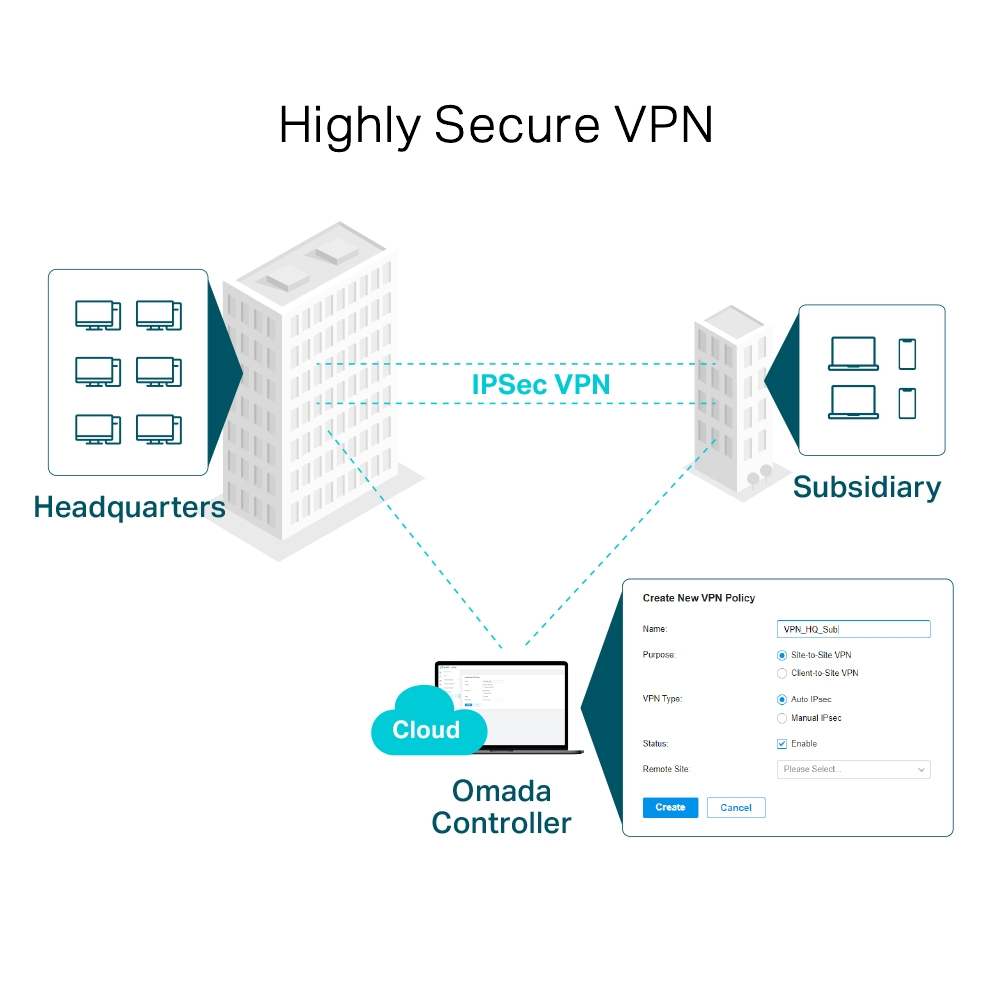

| VPN support | IPSec VPN, PPTP VPN, L2TP VPN, OpenVPN |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick installation guide | Yes |
Features
| Specification | Value |
|---|---|
| Flash memory | 132 MB |
| Internal memory | 512 MB |
| Internal memory type | DRAM |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Certification | CE, FCC, RoHS |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Activity, Link, Power, System, WAN |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 131 mm |
| Height | 35 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 226 mm |
| Package depth | 288 mm |
| Package height | 72 mm |
| Package weight | 1.32 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
