Omada VPN Router with
10G Ports
Model ER8411EAN 840030703300
45 specifications
- Memory4096 MB
- ColourBlack
- Ethernet WANYes
- Networking standardsIEEE 802.1Q
- Ethernet LAN (RJ-45) ports8
- AC input voltage100 - 240 V
Overview
- Memory
- 4096 MB
- Colour
- Black
- Ethernet WAN
- Yes
- Networking standards
- IEEE 802.1Q
- Ethernet LAN (RJ-45) ports
- 8
- AC input voltage
- 100 - 240 V
- Brand
- TP-Link
- Category
- Wired Router
- Model
- ER8411
- Part number
- ER8411
- EAN / UPC
- 840030703300, 4897098683132, 4897098683309
- Also known as
- TP-Link Omada VPN Router with 10G Ports
Specifications
45 specifications in 13 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| SFP WAN | Yes |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Static route | Yes |
| VLAN support | Yes |
| Port forwarding | Yes |
Management features
| Specification | Value |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |

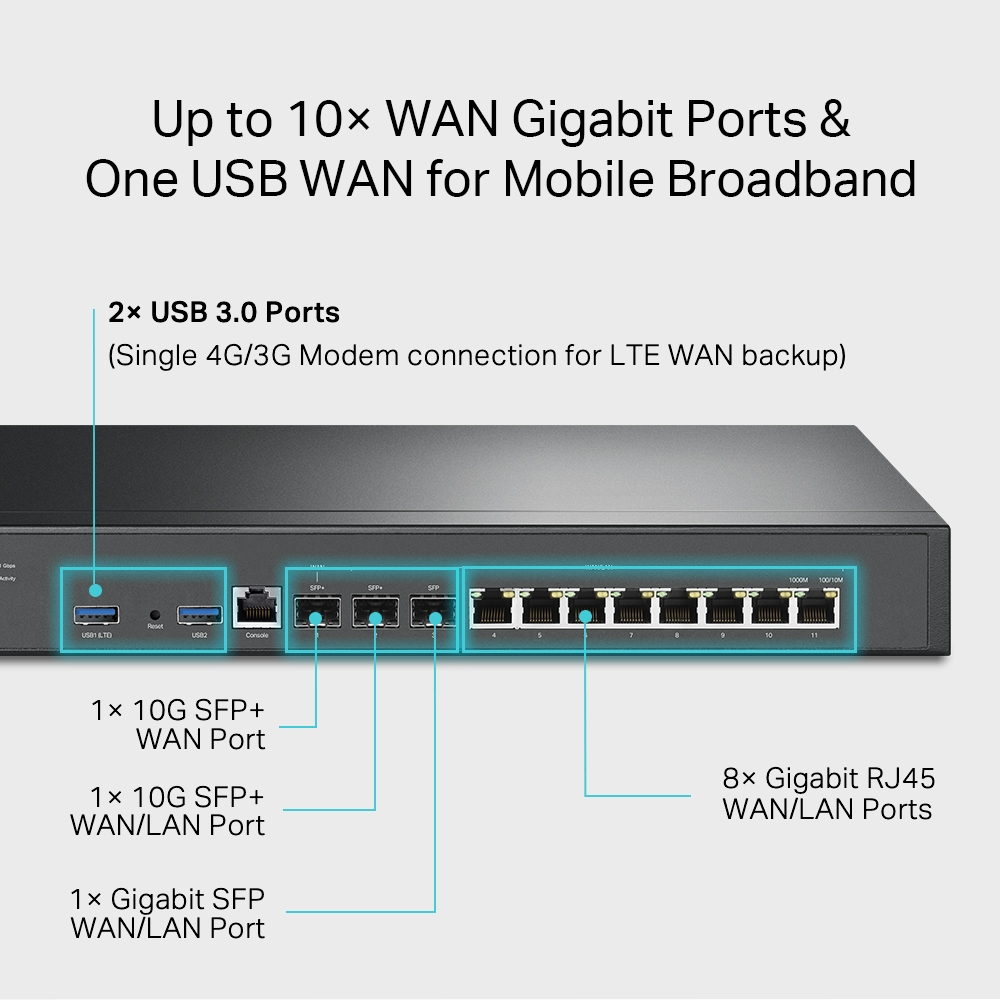

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 8 |
| Combo SFP ports quantity | 2 |
| USB ports quantity | 2 |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
Security
| Specification | Value |
|---|---|
| URL filtering | Yes |
| Access Control List (ACL) | Yes |
| NAT functionality | One-to-One NAT; Multi-Net NAT; Virtual Server; Port Triggering; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP; |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Flash memory | 256 MB |
| Internal memory | 4096 MB |
| Internal memory type | DDR4 |
| Certification | CE, FCC, RoHS |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 336 mm |
| Package depth | 528 mm |
| Package height | 100 mm |
| Package weight | 3.68 kg |
