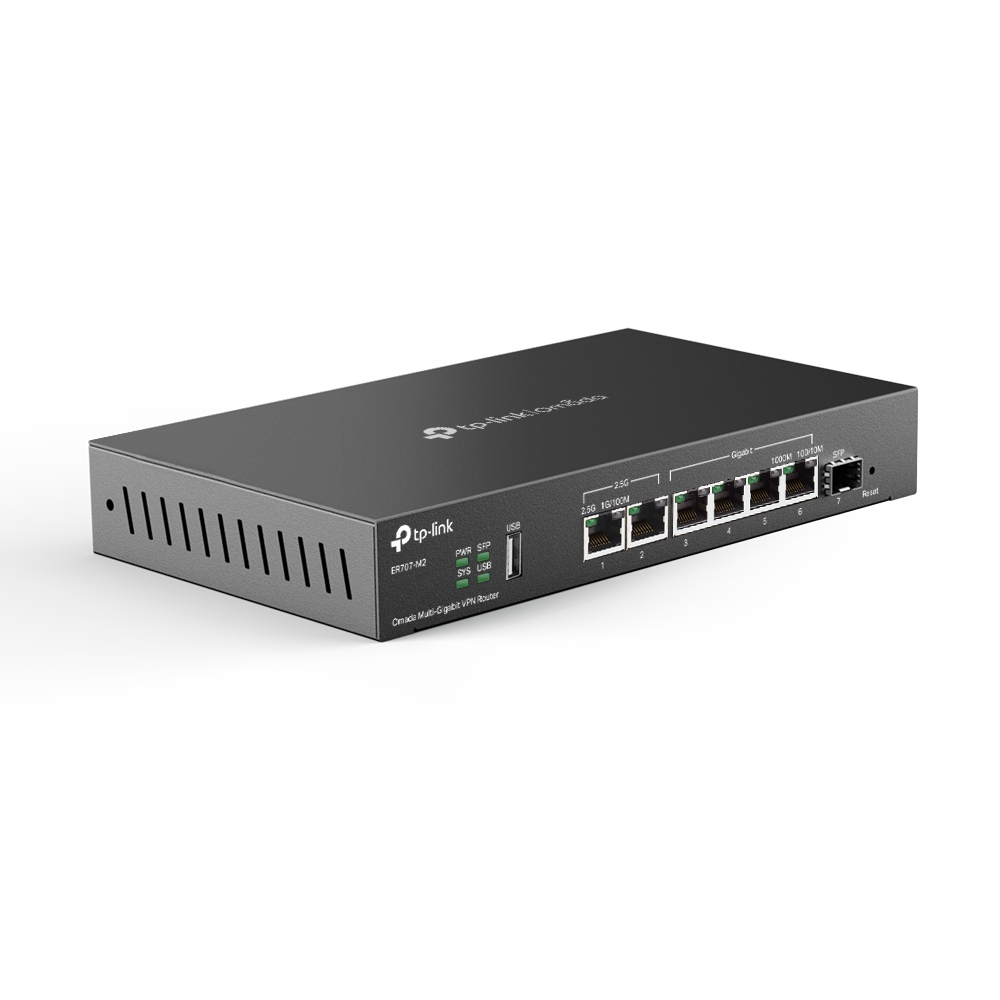

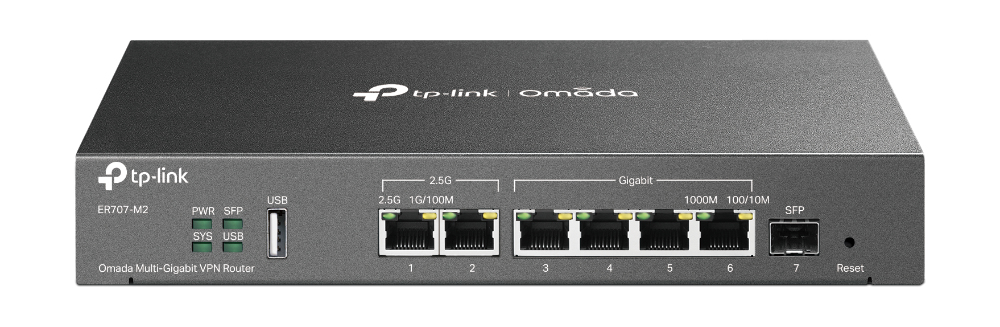

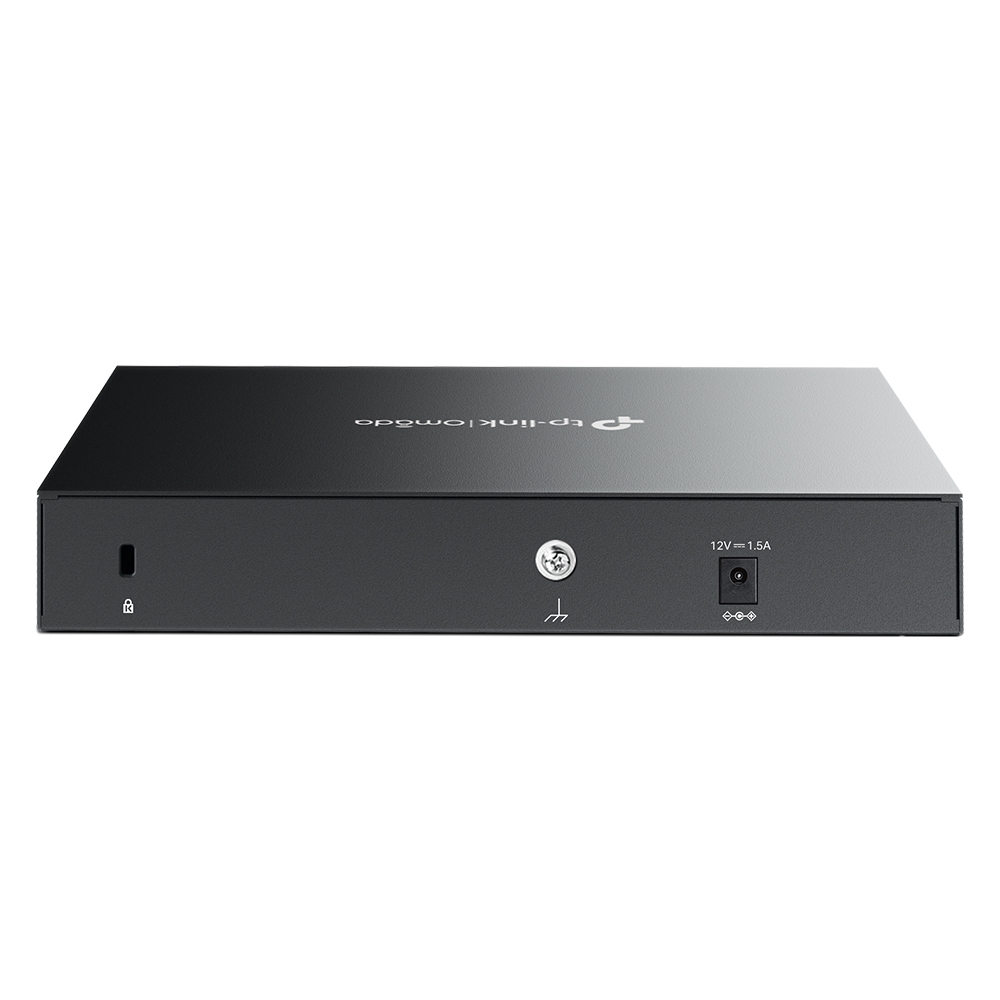

Omada Multi-Gigabit VPN Router
Model ER707-M2EAN 840030705274
57 specifications
- Memory1000 MB
- ColourBlack
- Ethernet WANYes
- Ethernet LAN data rates10,100,1000,2500 Mbit/s
- Ethernet LAN (RJ-45) ports6
- Flash memory128 MB
Overview
- Memory
- 1000 MB
- Colour
- Black
- Ethernet WAN
- Yes
- Ethernet LAN data rates
- 10,100,1000,2500 Mbit/s
- Ethernet LAN (RJ-45) ports
- 6
- Flash memory
- 128 MB
- Brand
- TP-Link
- Category
- Wired Router
- Model
- ER707-M2
- Part number
- ER707-M2
- EAN / UPC
- 840030705274, 4895252500738, 4895252500745
- Also known as
- TP-Link Omada Multi-Gigabit VPN Router
Specifications
57 specifications in 14 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| SFP WAN | Yes |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Throughput | 1.44 Gbit/s |
| Static route | Yes |
| VLAN support | Yes |
| Policy-based routing | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 6 |
| WAN/Ethernet LAN ports quantity | 6 |
| WAN ports quantity | 1 |
| Installed SFP modules quantity | 1 |
| USB ports quantity | 1 |
| USB version | 2.0 |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| Supported network protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3 |
| URL filtering | Yes |
| ICMP attack prevention | Yes |
| Access Control List (ACL) | Yes |
| Network address translation (NAT) | Yes |
| System event log | Yes |
| VPN tunnels quantity | 66 |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Sustainability compliance | Yes |
Features
| Specification | Value |
|---|---|
| Flash memory | 128 MB |
| Internal memory | 1000 MB |
| Internal memory type | DDR4 |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Wall mountable | Yes |
| LED indicators | LAN, Link, Power, Speed, System, USB, WAN |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 131 mm |
| Height | 35 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 242 mm |
| Package depth | 323 mm |
| Package height | 73 mm |
| Package weight | 1.1 kg |
