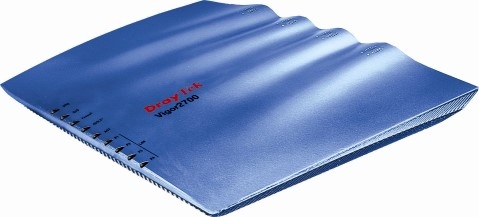

Origin Storage Vigor 2700 ADSL2/2+ Router
Model Vigor 2700 ADSL2/2+ RouterPart no. VIGOR-2700EAN 5055146547075
29 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Supports ISDN connectionNo
- ADSLYes
- Ethernet LAN (RJ-45) ports5
- Authentication methodSHA-1, MD5
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Supports ISDN connection
- No
- ADSL
- Yes
- Ethernet LAN (RJ-45) ports
- 5
- Authentication method
- SHA-1, MD5
- Brand
- Origin Storage
- Category
- Wired Router
- Model
- Vigor 2700 ADSL2/2+ Router
- Part number
- VIGOR-2700
- EAN / UPC
- 5055146547075
- Also known as
- Origin Storage Vigor 2700 ADSL2/2+ Router wired router
Specifications
29 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Supports ISDN connection | No |
DSL features
| Specification | Value |
|---|---|
| ADSL | Yes |
| Upstream data rate | 1 Mbit/s |
| Downstream data rate | 24 Mbit/s |
| DSL specification | G.dmt ( G.992.1 ), ANSI T1.413 Issue2, G.dmt.bis ( G.992.3 ), ADSL2+ ( G.992.5 ) |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| RJ-11 ports quantity | 1 |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | AAL5 ( RFC 2684 ), AAL5 ( RFC 2516,2364 ) |
Security
| Specification | Value |
|---|---|
| Firewall security | Stateful packet inspection (SPI) firewall, Multi-Network address translation (NAT) firewall, Denial of Service (DoS) protection, Distributed Denial of Service (DDoS) protection |
| Authentication method | SHA-1, MD5 |
| IP address filtering | Yes |
| Filtering description | IM, P2P |
| System event log | Yes |
| VPN tunnels quantity | 2 |
| VPN support | DHCP over IPSec, PPTP, IPSec L2TP, L2TP over IPSec |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
Other features
| Specification | Value |
|---|---|
| Power requirements | DC 12V - 15V |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 160 x 220 x 36 mm |
| Maximum data transfer rate | 0.1 Gbit/s |
| Relative humidity | 10 - 90% |
| Remote administration | CLI |
