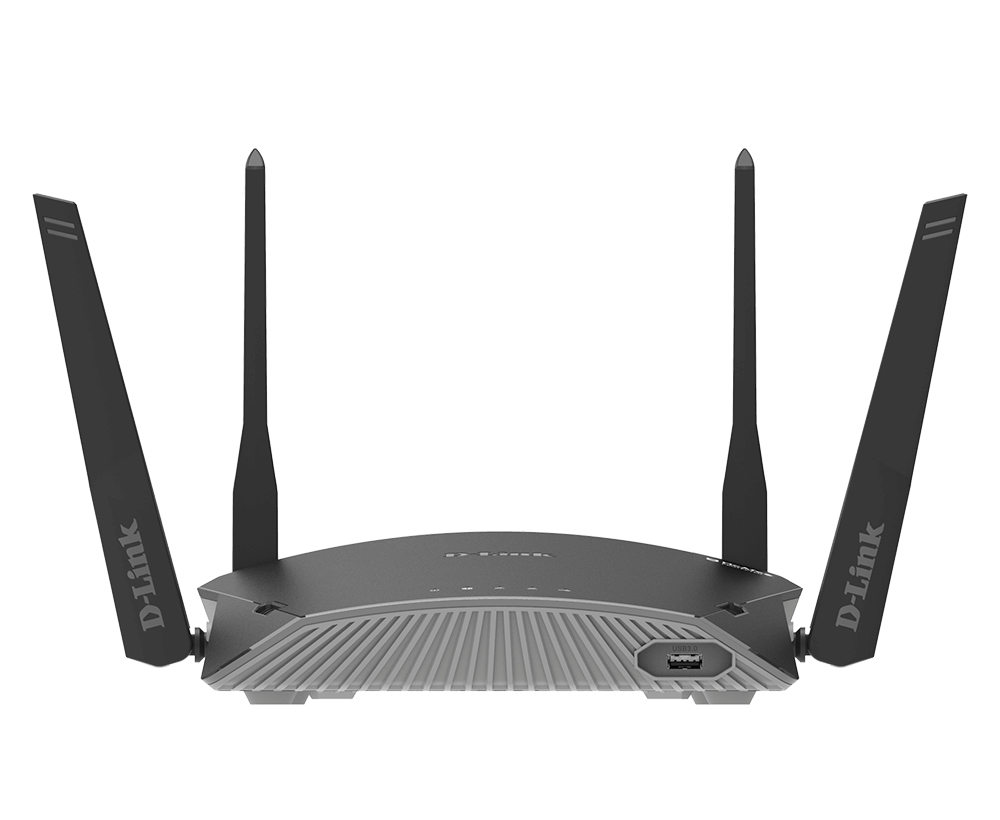

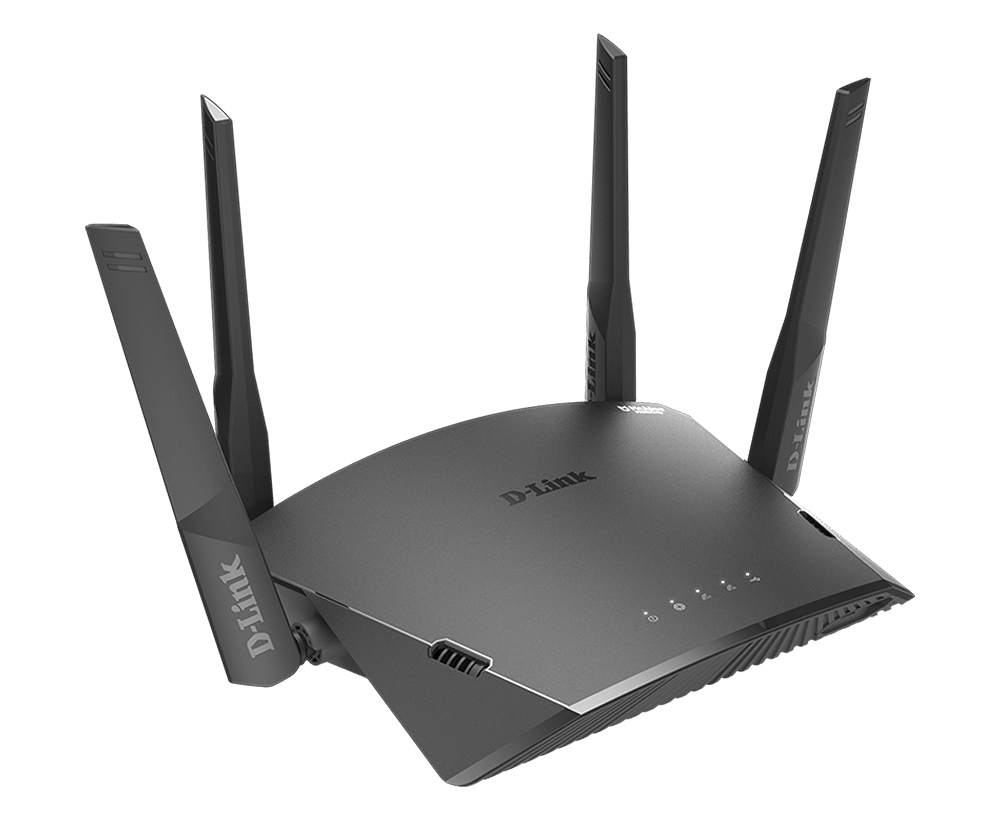

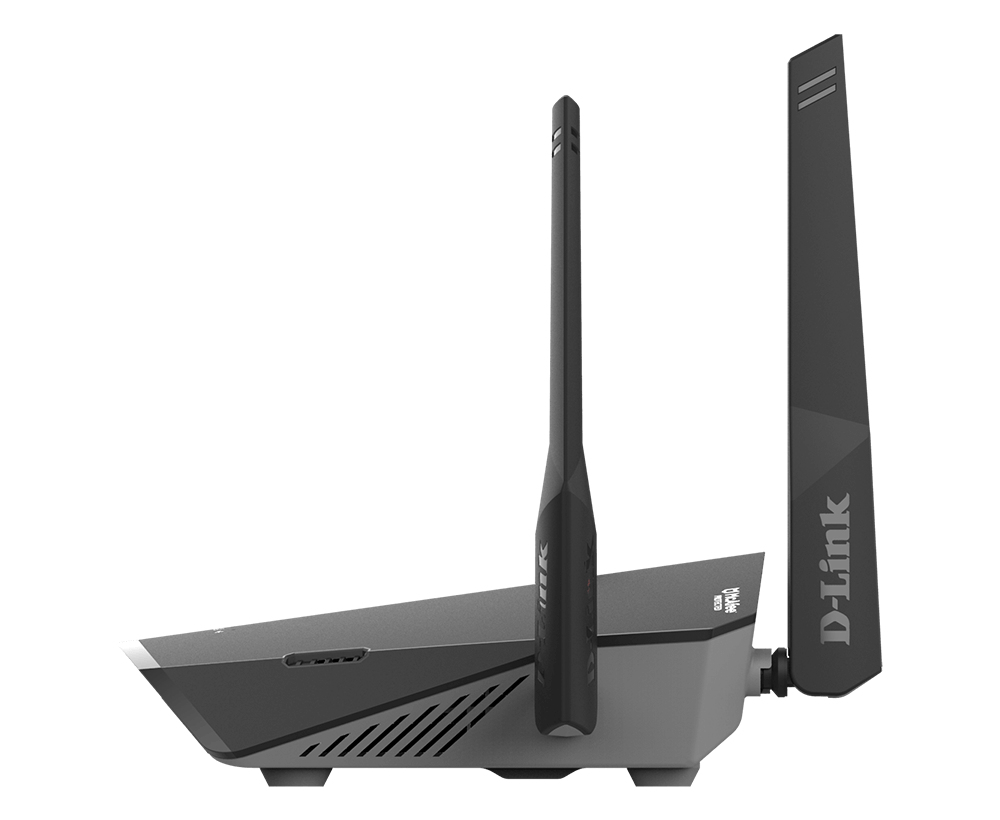

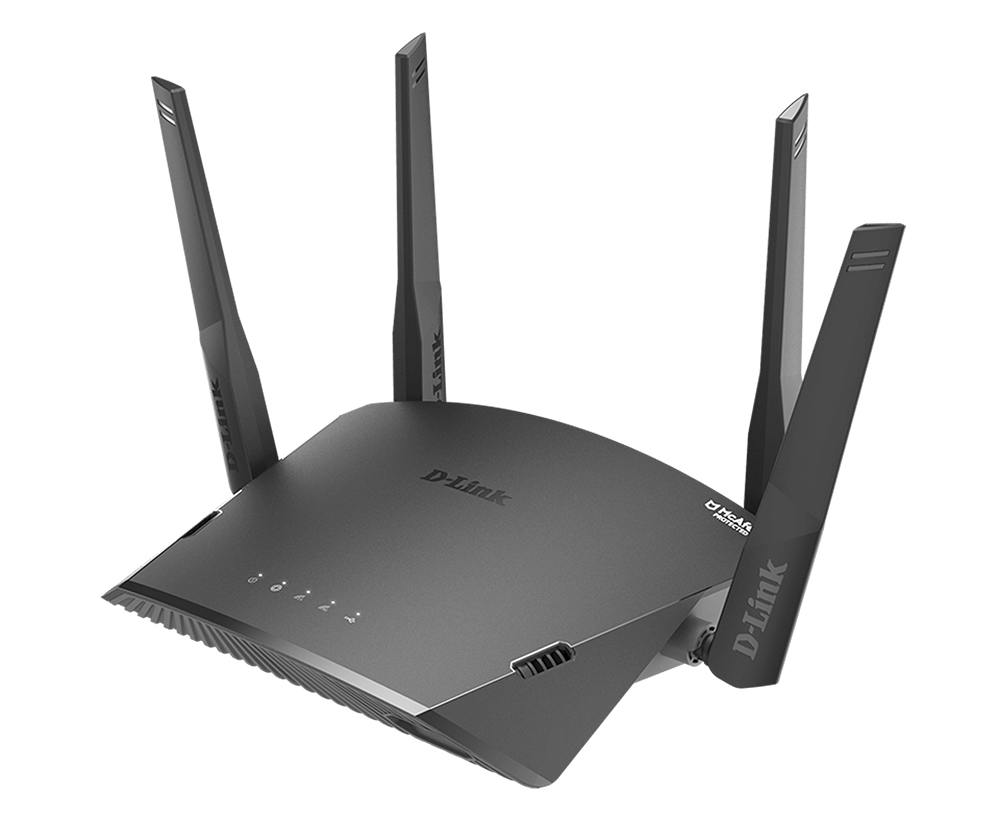

EXO wired router Gigabit Ethernet Black
Model EXOPart no. DIR-1760
43 specifications
- Memory256 MB
- Weight590 g
- ColourBlack
- Ethernet WANYes
- Ethernet interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports4
Overview
- Memory
- 256 MB
- Weight
- 590 g
- Colour
- Black
- Ethernet WAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- D-Link
- Category
- Wired Router
- Model
- EXO
- Part number
- DIR-1760
- Also known as
- D-Link EXO wired router Gigabit Ethernet Black
Specifications
43 specifications in 13 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| DC-in jack | Yes |
Protocols
| Specification | Value |
|---|---|
| DMZ support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA-PSK, WPA2-PSK, WPS |
| Firewall | Yes |
| Firewall security | NAT |
| Network address translation (NAT) | Yes |
| Guest access | Yes |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Features
| Specification | Value |
|---|---|
| Flash memory | 128 MB |
| Internal memory | 256 MB |
| Windows operating systems supported | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Output current | 2 A |
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 222.9 mm |
| Depth | 176.6 mm |
| Height | 65 mm |
| Weight | 590 g |
